ZIYOUHU C9A Thermal Imaging Monocular Sight Scope for Hunting Hotspot Tracking Heat Searching Camcorder Thermographic Riflescope

Category:
ZIYOUHU C9A Thermal Imaging Monocular Sight Scope for Hunting Hotspot Tracking Heat Searching Camcorder Thermographic Riflescope


Price: -

ZIYOUHU C9A Thermal Imaging Monocular Sight Scope for Hunting Hotspot Tracking Heat Searching Camcorder Thermographic Riflescope

Description

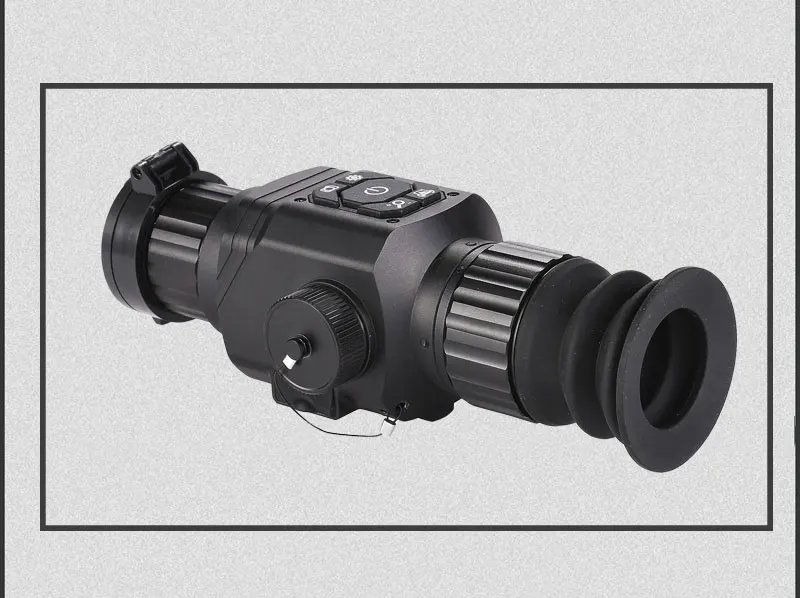

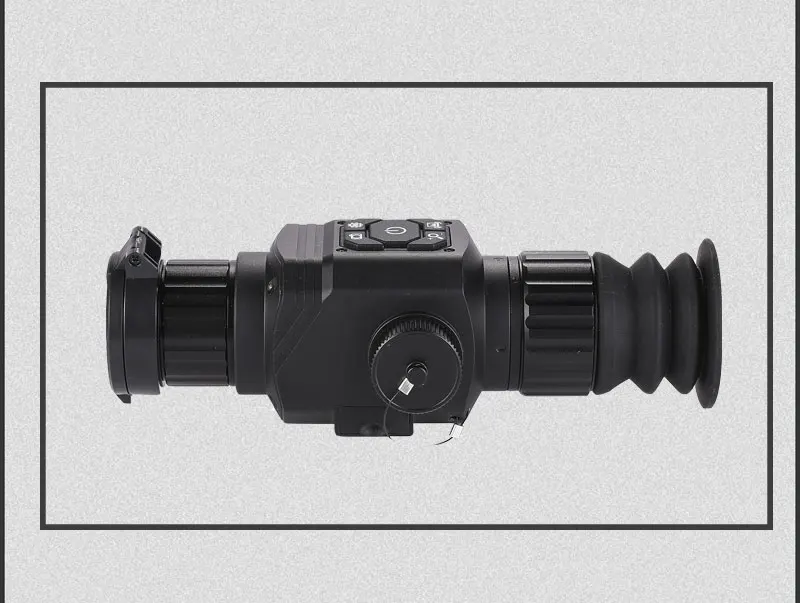

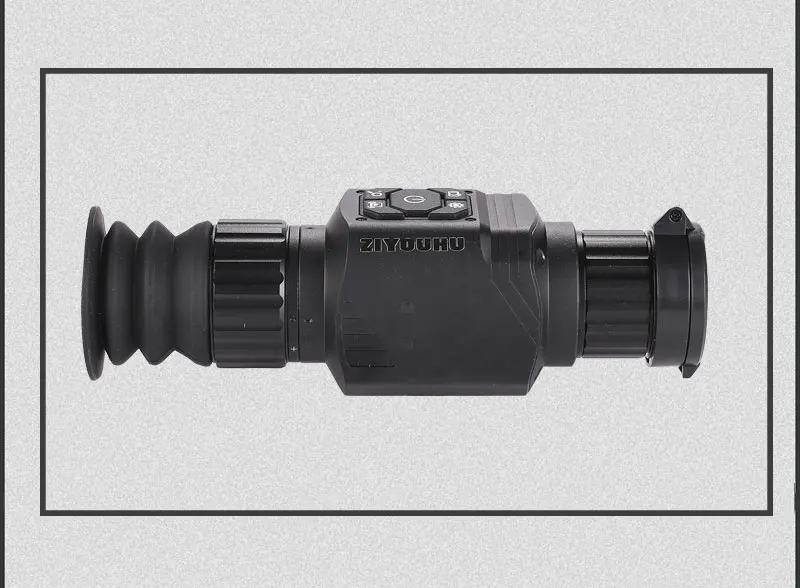

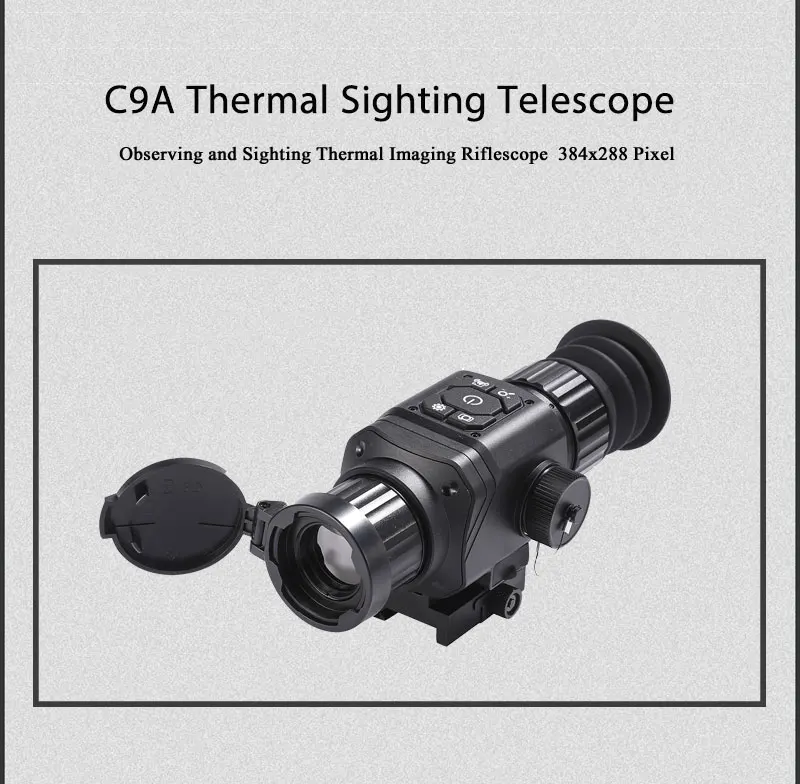

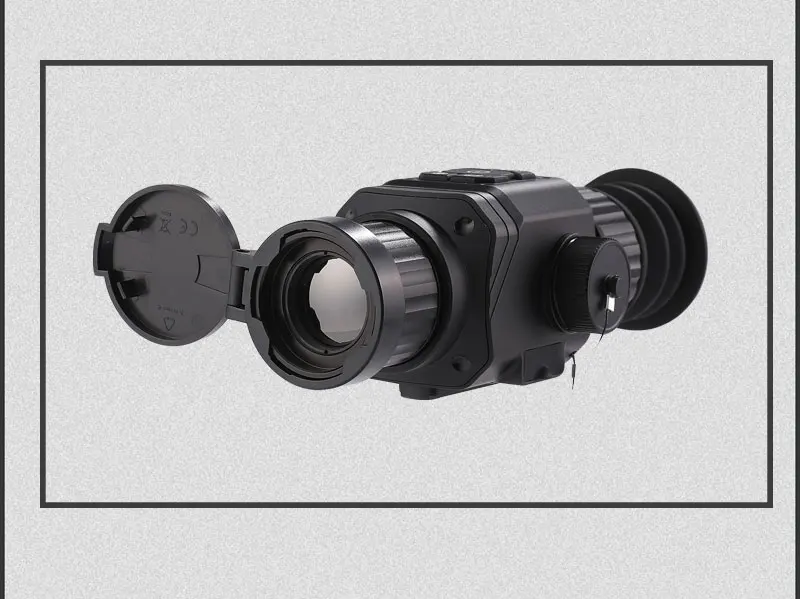

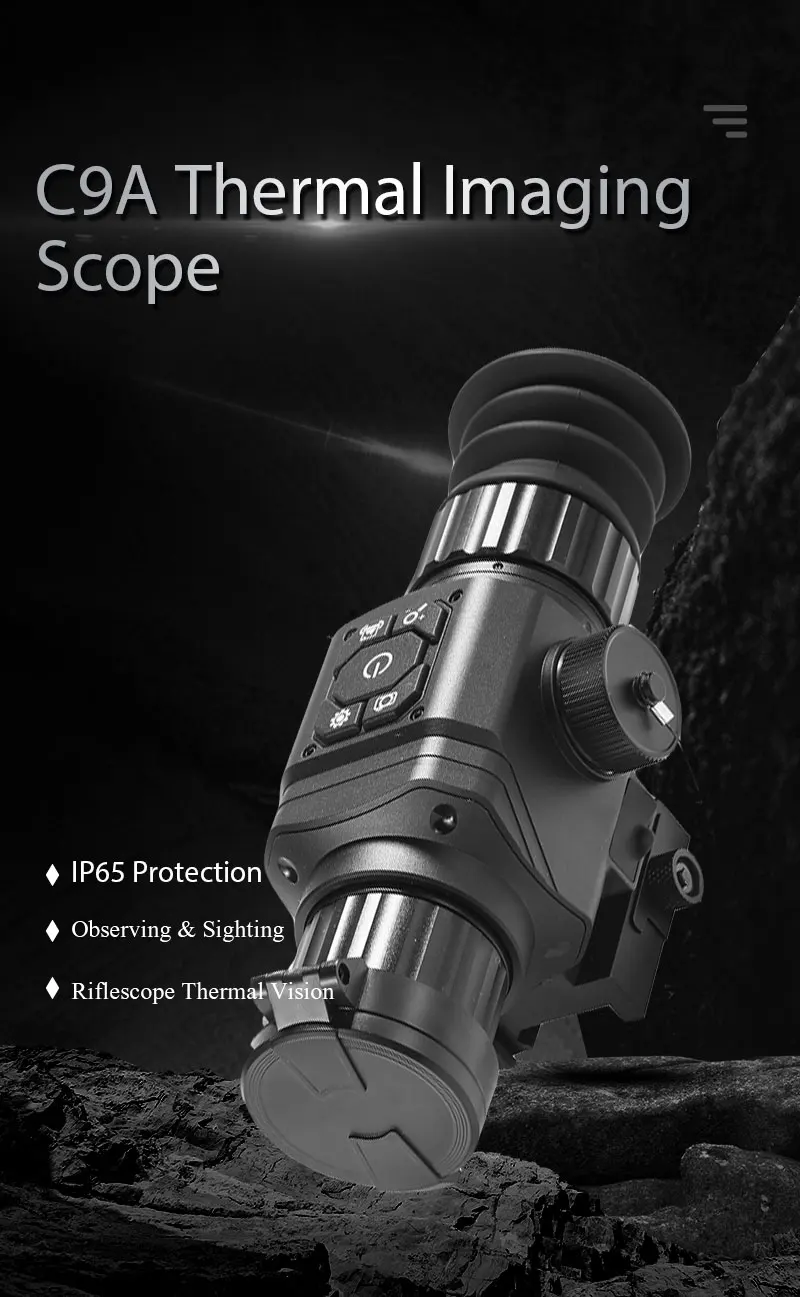

ZYH-C9A outdoor thermal imaging monocular hunting scope, with advanced uncooled focal plane infrared detector and high-quality optical lens as the core, 256X192 thermal sensor , ensure the clear hot imaging , also good costeffective , suitable for some new entry huntter who want to use the thermal imaging riflescope

Combined with a convenient and fast operating system,

-Small shape design,

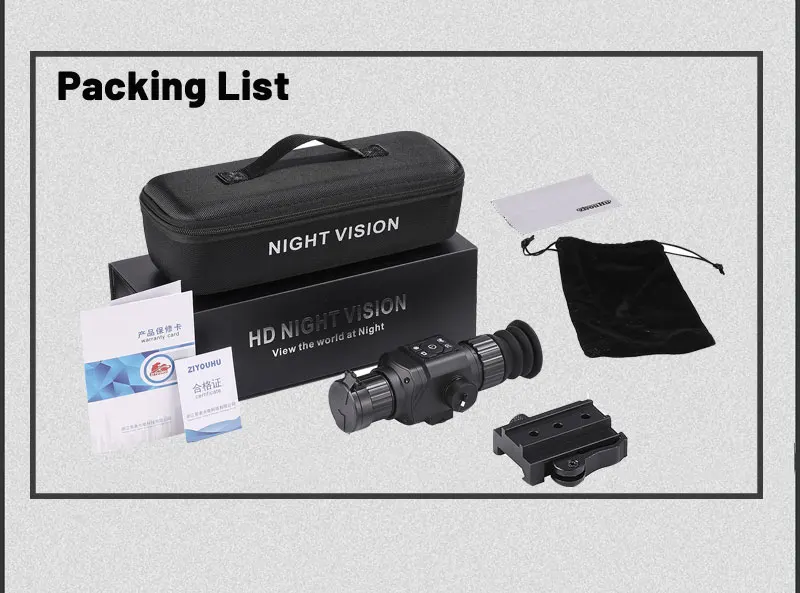

-Fully functional expansion spare parts,

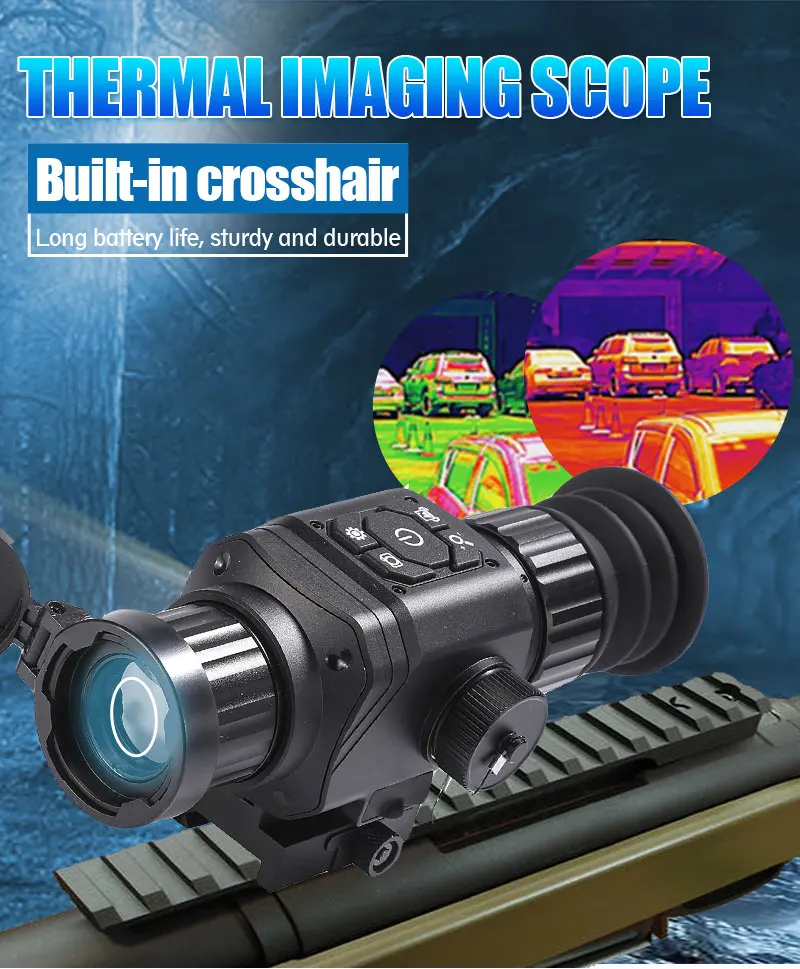

-Long battery life, sturdy and durable,

Suitable for various environments,

Created an infrared thermal imaging tool with clear imaging, simple operation and easy to carry for users.

This product suitable for
-Observation of wild animals,
-Search and rescue,
-Police law enforcement investigation,
-Patrol at night,
-Outdoor sports,
-Personal security, etc.

This thermal imager product is a single handheld handheld with a light and portable, simple operation, and wide application scenario. mirror. Comfortable perception, providing clear and delicate heat imaging, is an ideal equipment for outdoor.

Support a variety of pseudo -color patterns, one -click switching, you can distinguish the location of the target in the scene in time. If you take the image, you can save the thermal imaging image to this device, read the image through USB or save it to the computer for generating reports and printing.

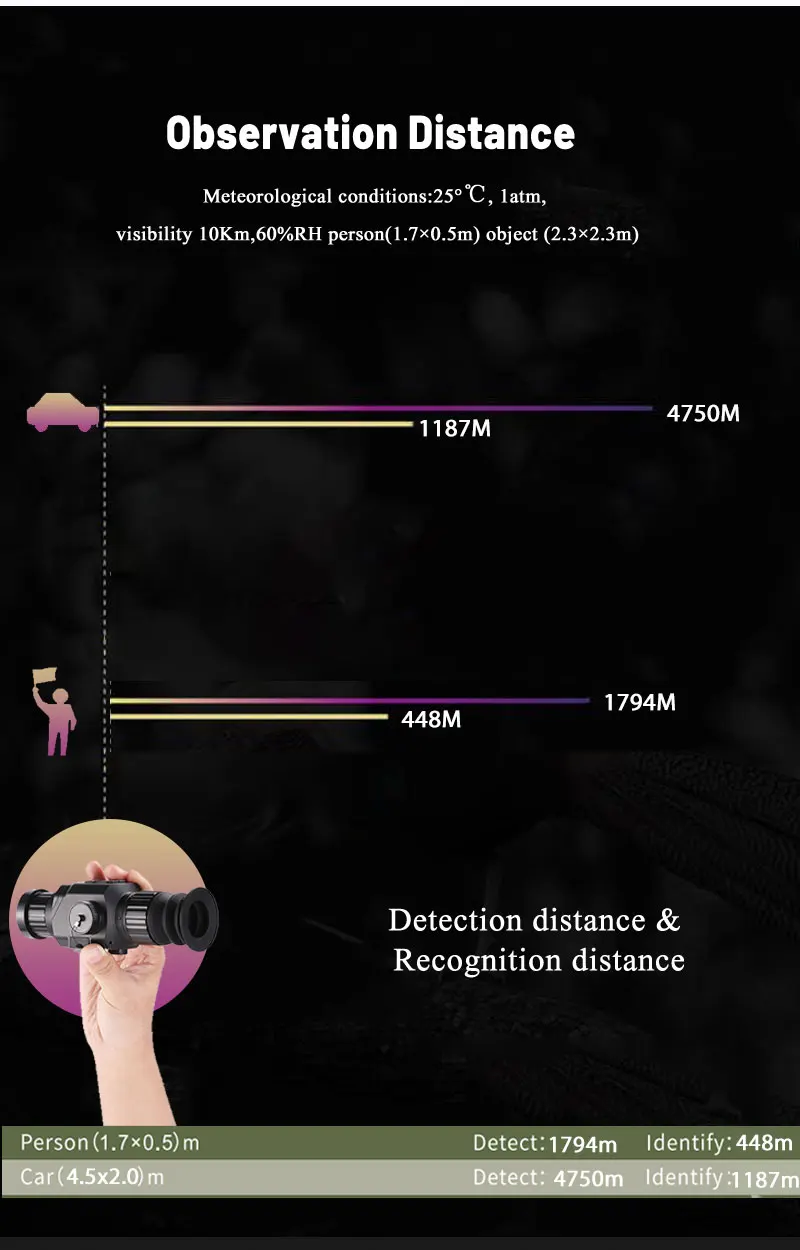

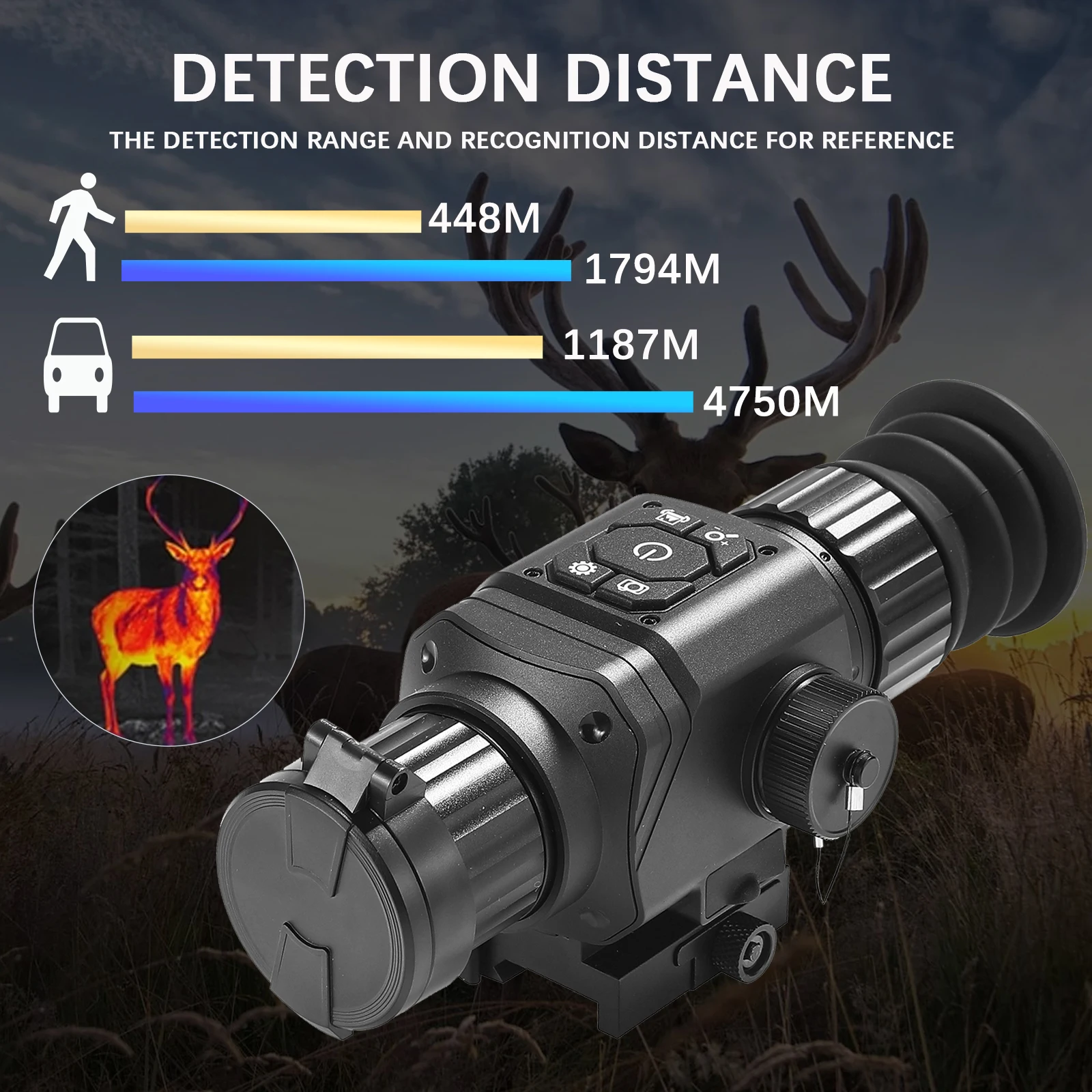

Target Distance(19mm lens ) :

For hunman = Detection Distance 1794m , Identification distance 448 m

For Vehicle(car)=Detection Distance 4750m , Identification distance 1187 m

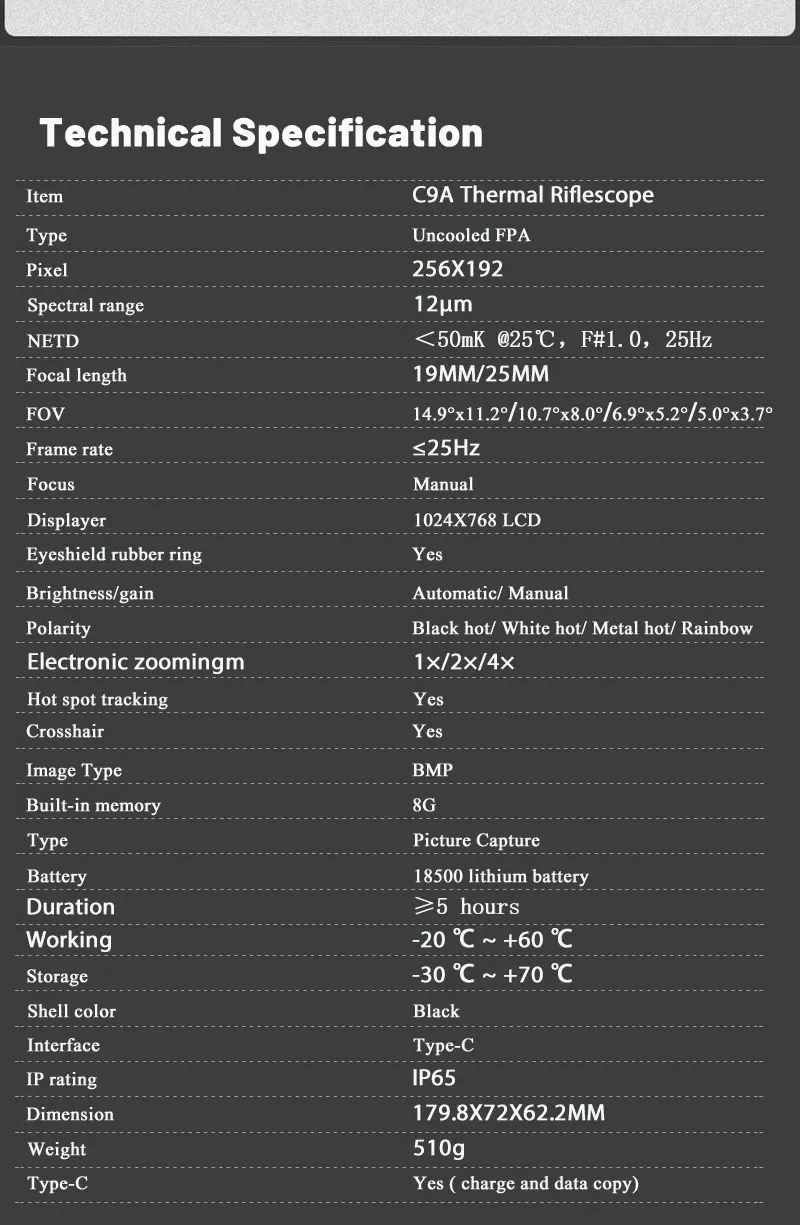

Product model

ZIYOUHU C9A

Infrared

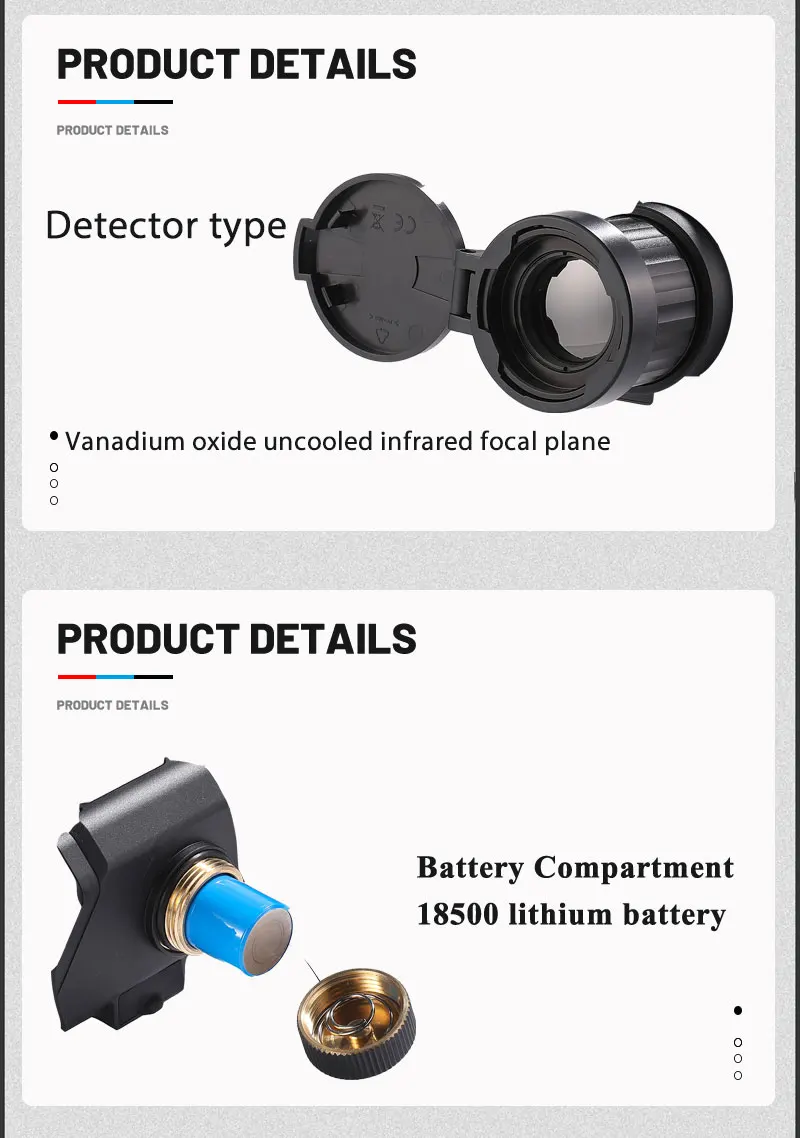

Detector type

Vanadium oxide uncooled infraredfocal plane

Resolution ratio

256×192

Pixel size

12μm

Focal length

19mm

Field of view angle

9.24°×7.08°

Working band

8~14μm

NETD

<50mK @25℃,F#1.0,25Hz

Frame rate

≤25Hz

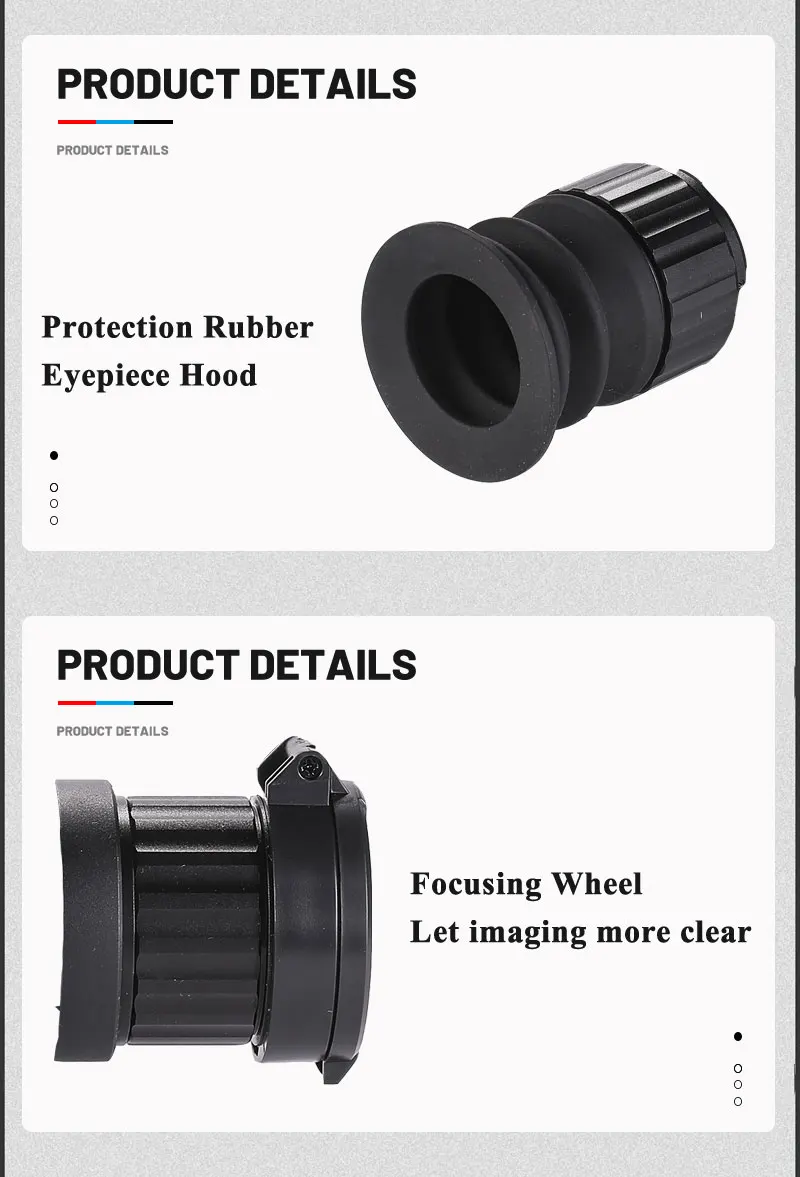

Focus Mode

Manual focusing

Detection distance

Character:1.7mx0.5mx0.3m

1794m

Vehicle:4.5mx2.0mx1.5m

4750m

Perception distance

Character:1.7mx0.5mx0.3m

448m

Vehicle:4.5mx2.0mx1.5m

1187M

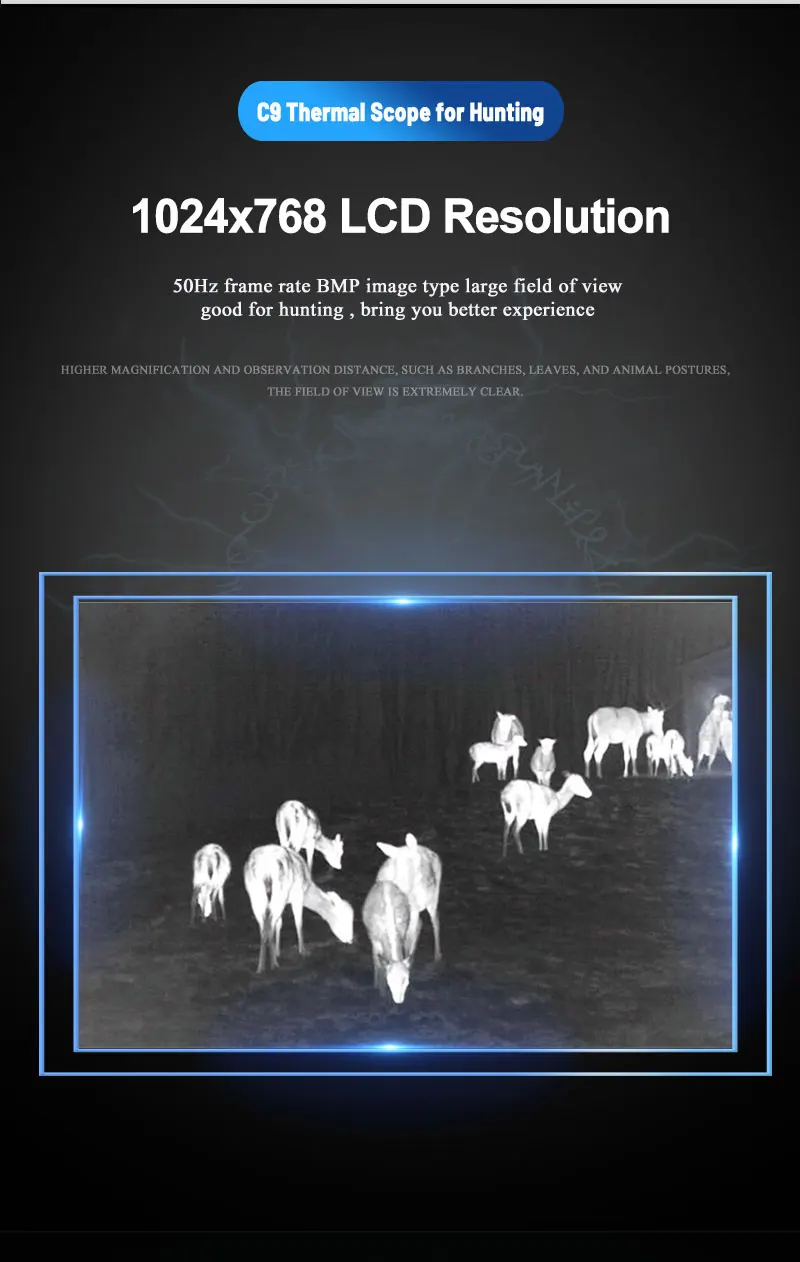

Display

Display screen type

OLED

Resolution ratio

1024×768

Display size

0.39inches

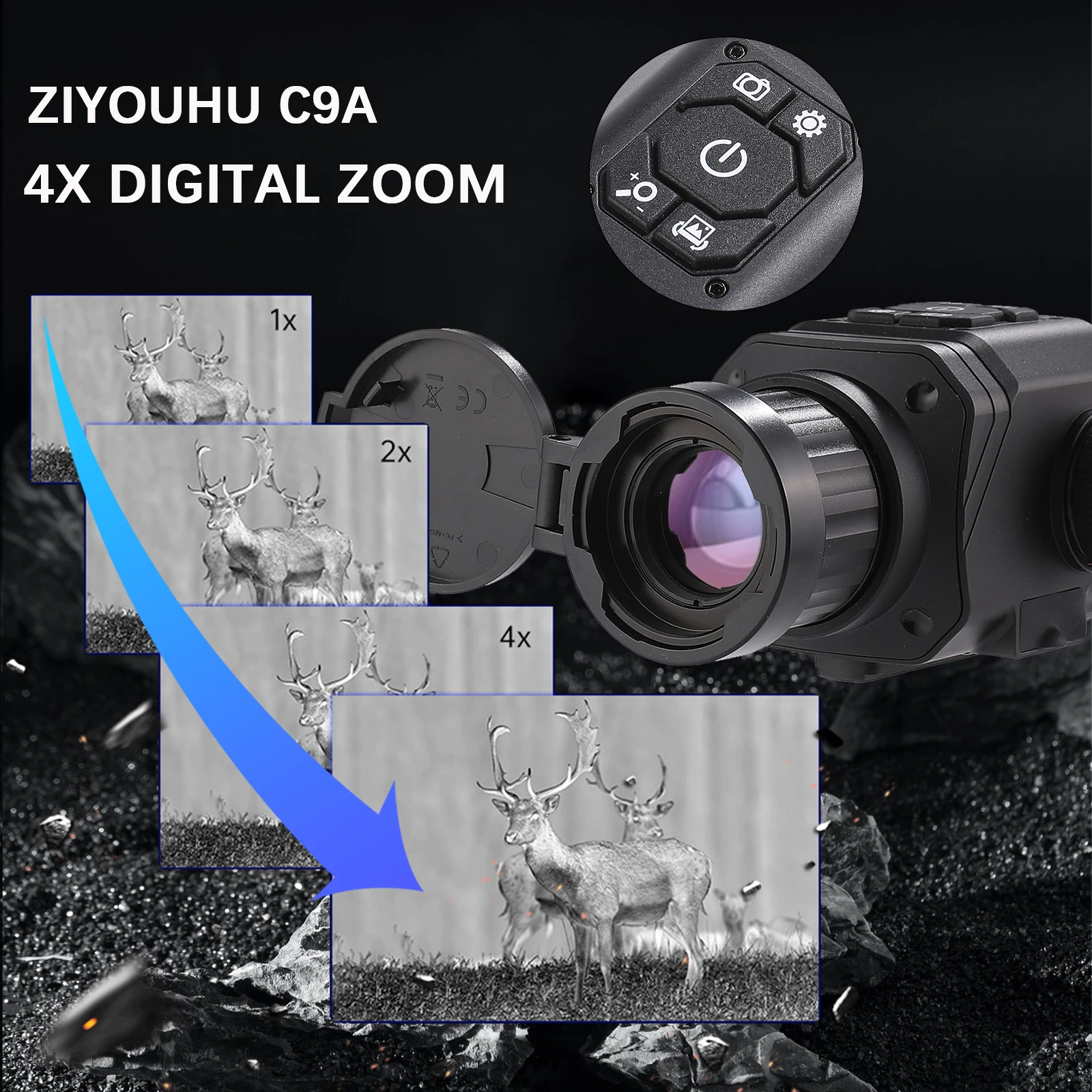

Electronic zooming

1×/2×/4×

Diopter regulation

±5SD

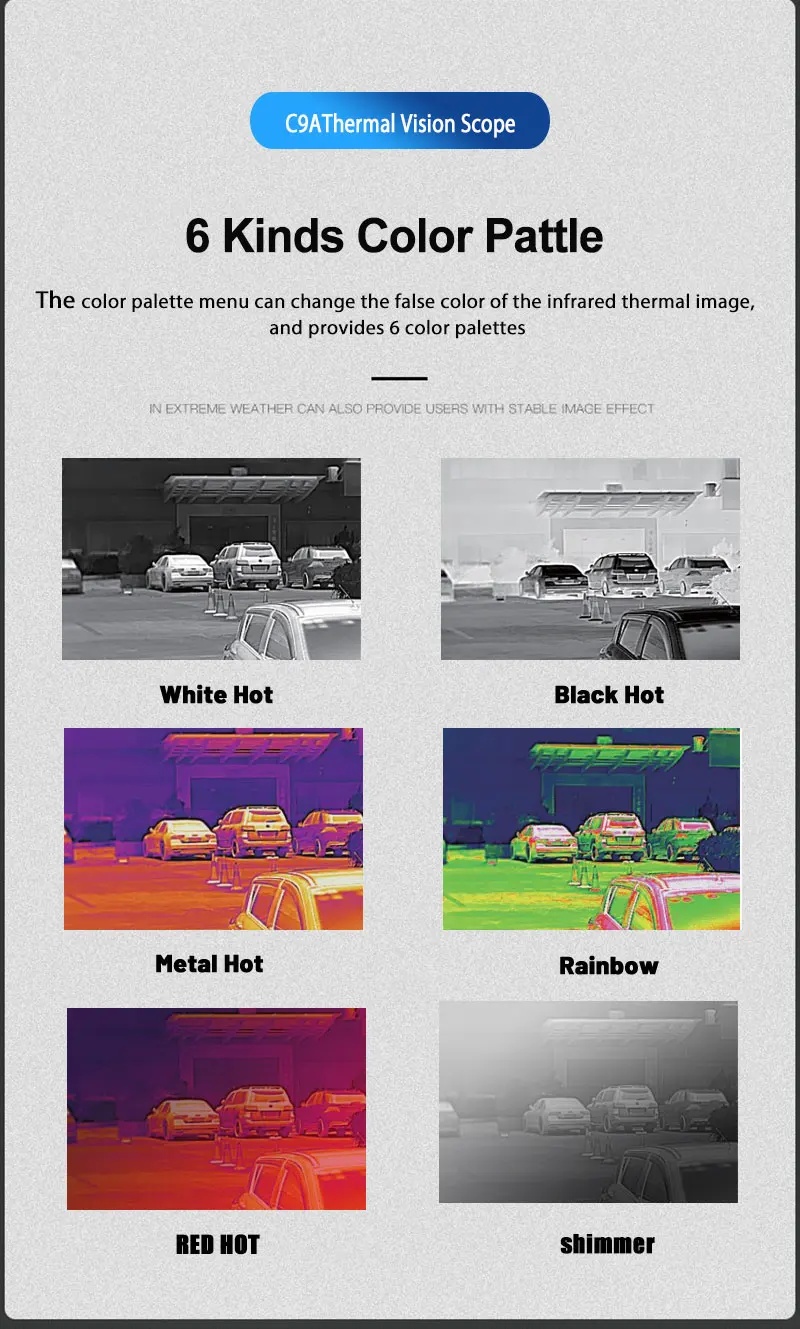

False color

White Hot, Black Hot, Red iron, Rainbow, Iron Red, Glimmer

Picture in Picture

Supported

Language

Simplified Chinese, Traditional Chinese,English, Russian

Storage

Capacity

Built-in 16G EMMC (the system occupies some space, and the actual size isabout 13.8G)

Camera

Supported

Video

Supported

Picture/Video format

JPG/MP4

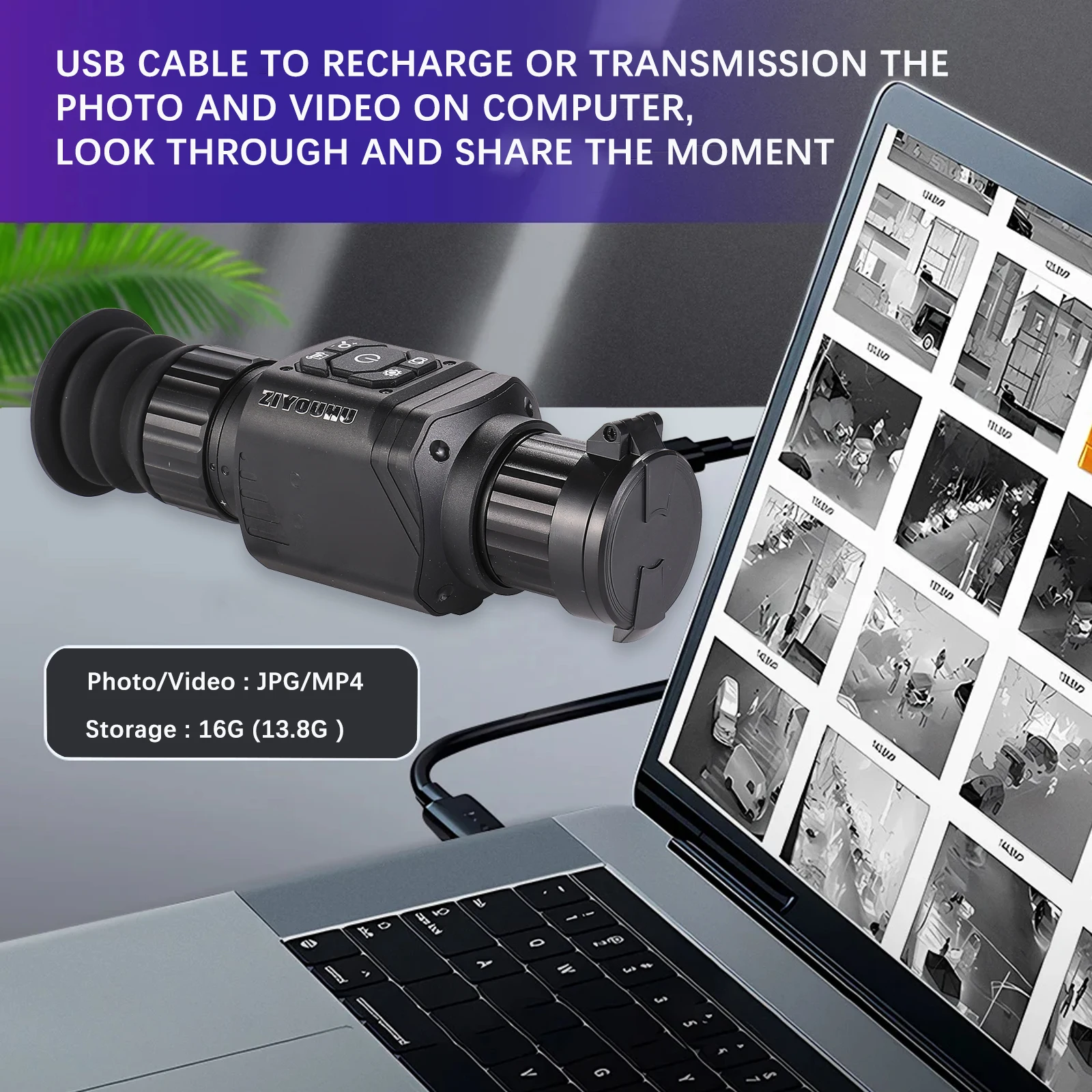

Interface

Usb Interface

Charging/exporting pictures and videos

Power supply

Detachable recharge-

able lithium battery

2040mAh (battery model 18500)

General technical indicators

Overall power consumption

≤1.2W

Duration

≥5 hours

Working temperature

-20 ℃ ~ +60 ℃

Storage temperature

-30 ℃ ~ +70 ℃

Impact

800G IEC 68-2-29

Protection level

IP65

Size/Weight

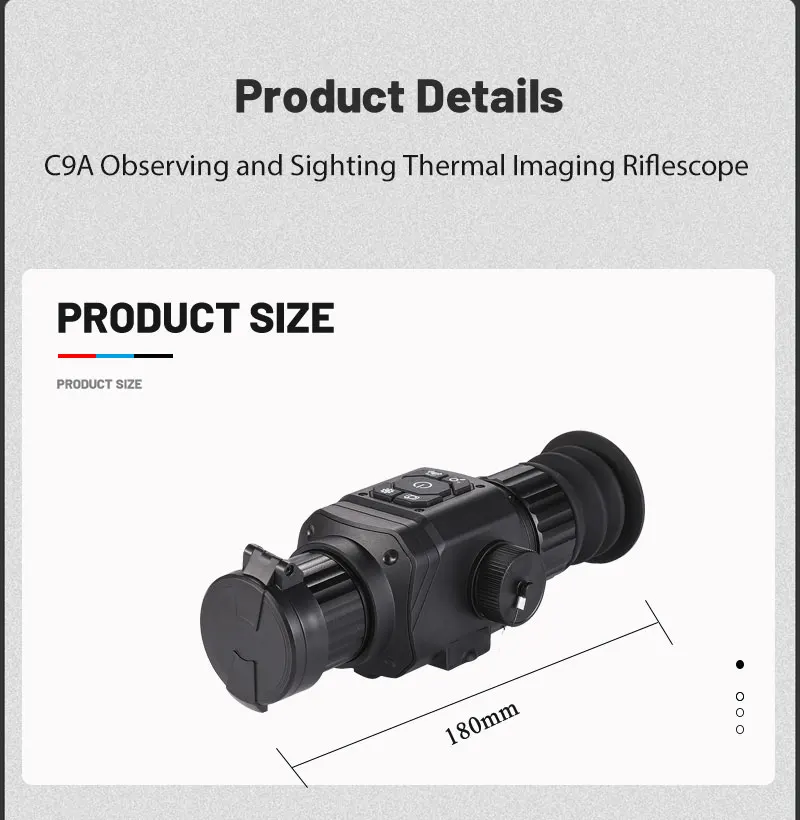

Product size

179.8x72x62.2mm

Product weight

510g
