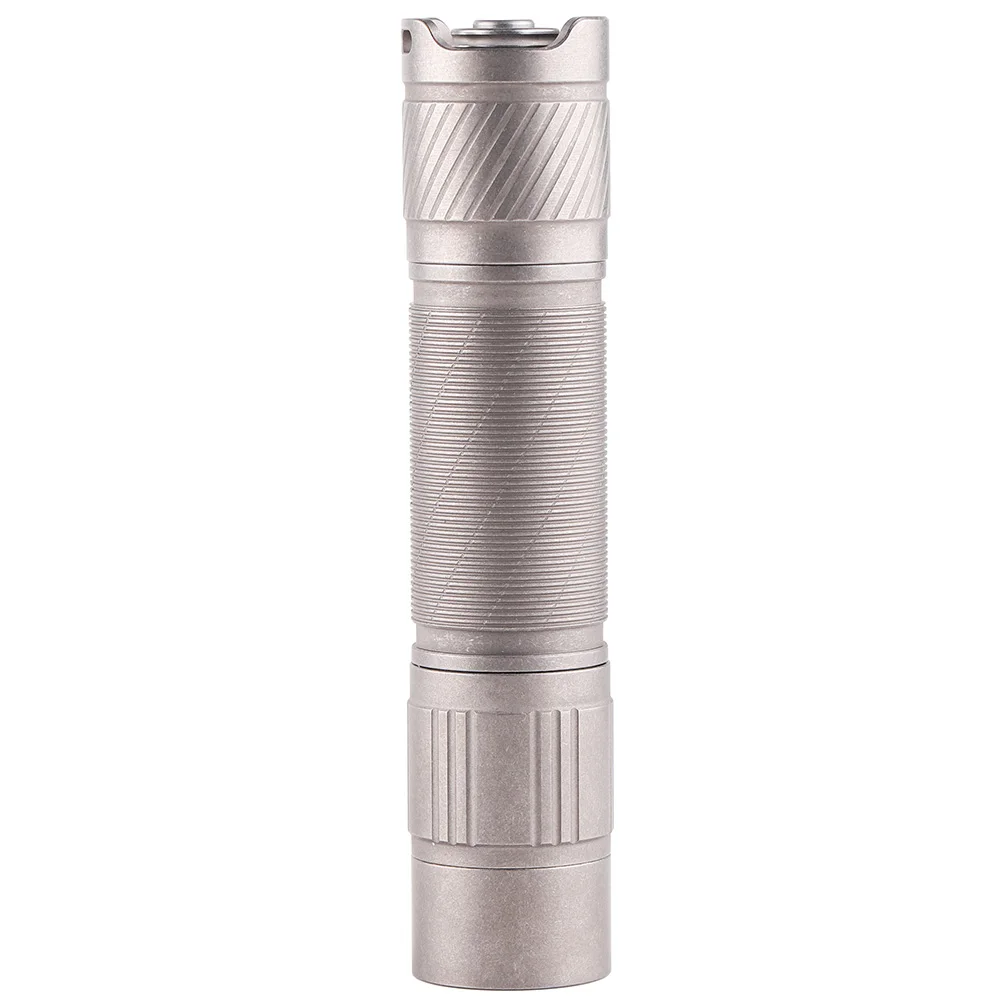

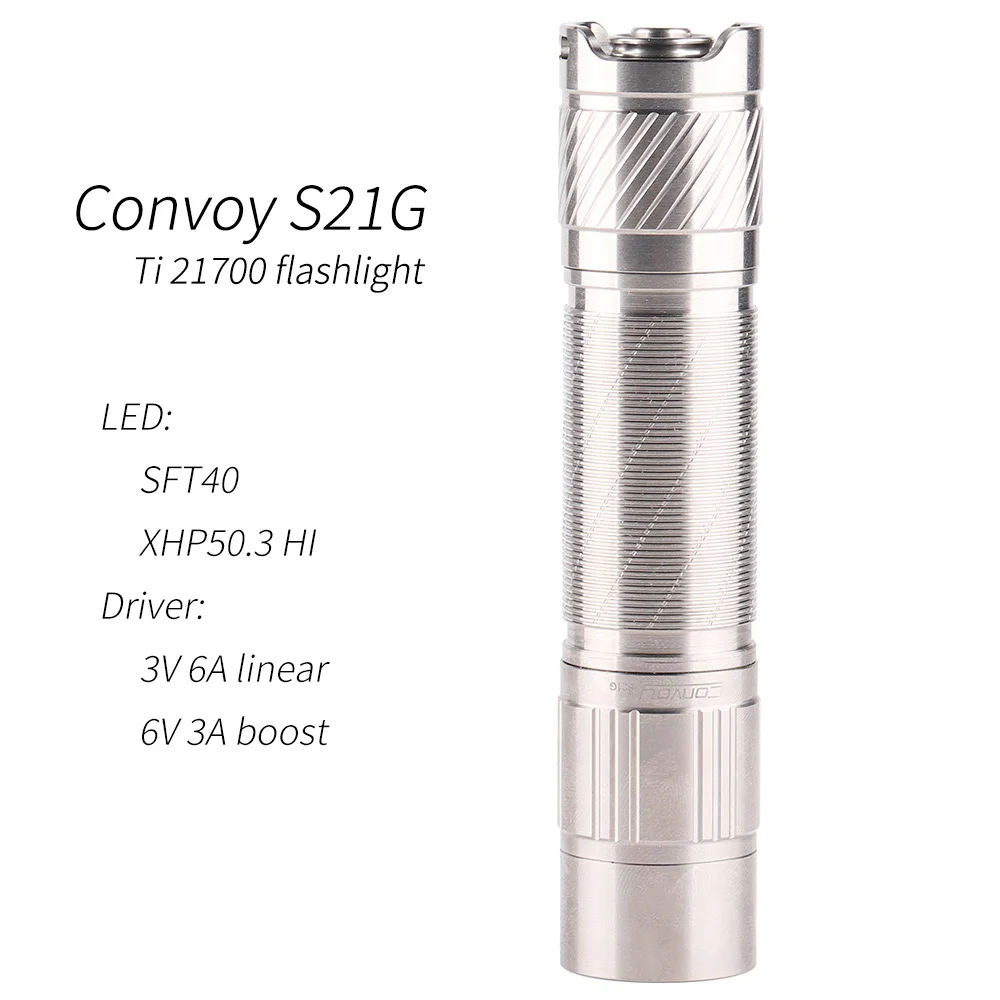

Ti Convoy S21G 21700 flashlight SFT40 XHP50.3 HI

Because of the low thermal conductivity of titanium alloy, the 8A drive circuit was used before, and the plastic gasket was melted due to excessive heat.

At present, the drive circuit has been changed to a 6a linear version.

Parameter:

LED: 1 * SFT40 / XHP50.3 HI

Luminous flux: max 2000LM

Mode: see detailed description later

Brightness memory: Yes

Battery: 1 * 21700 lithium battery flat head without protection board (not included)

Material: Ti

Colour: glossy / stonewash

Waterproof rating: IPX6

Switch type: mechanical switch at the end of the flashlight.

Driver output current: max 8A buck, constant current

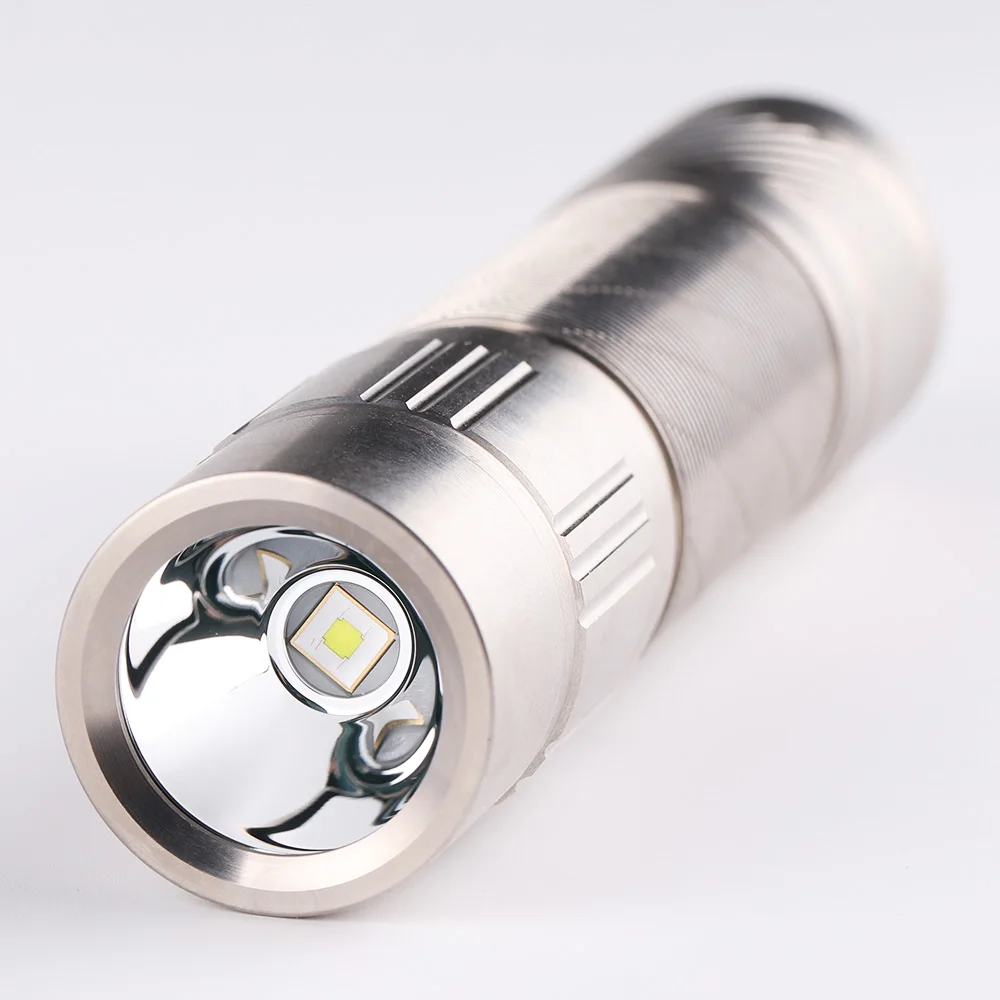

Reflector type: smooth reflector for SFT40, orange peel reflector for XHP50.3 HI

Lens: ar-coated glass

Size: 26mm (body diameter),27.2mm(head&tail diameter), 126.8mm (length)

Net weight of the flashlight: 123.8g (without packaging, battery, lanyard)

Package gross weight: 150g

Package size:15.2*5.6*4cm

Included accessories: 1*lanyard,

12
groups:

1.click
the switch to turn the flashlight on/off,tap the switch to select mode

2.if
flashlight is turned on,tap the switch 20 times quickly to enter into
config mode.(On a visual interface,as long as you click on an option, it means
that the option is selected. The flashlight has no visual interface. It flashes
to represent an option, and “tap the switch in the flashing process”
means to select the option.)

   Option
1 (normal-flash 1 time + buzz-flash): tap the
switch to enter into sub-option to select the mode group,If the user has no
operation, the config mode will enter option 2.

       ————-sub-option
1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%,
1%, 10%, 35%, 100%, strobe, biking, battery-check)

       ————-sub-option
1.2 (normal-flash 2 times) : tap the switch to select mode group 2
(0.1%, 1%, 10%, 35%, 100%)

       ————-sub-option
1.3 (normal-flash 3 times) : tap the switch to select mode group 3
(100%, 35%, 10%, 1%, 0.1%)

       ————-sub-option
1.4 (normal-flash 4 times) : tap the switch to select mode group 4
(1%, 20%, 100%, strobe, biking, battery-check, SOS)

       ————-sub-option
1.5 (normal-flash 5 times) : tap the switch to select mode group 5
(1%, 20%, 100%)

       ————-sub-option
1.6 (normal-flash 6 times) : tap the switch to select mode group 6
(100%, 20%, 1%)

       ————-sub-option
1.7 (normal-flash 7 times) : tap the switch to select mode group 7
(0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)

       ————-sub-option
1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%,
1%, 10%, 50%)

       ————-sub-option
1.9 (normal-flash 9 times) : tap the switch to select mode group 9
(50%, 10%, 1%, 0.1%)

       ————-sub-option
1.10 (normal-flash 10 times) : tap the switch to select mode group 10
(1%, 10%, 35%, 100%)

       ————-sub-option
1.11 (normal-flash 11 times) : tap the switch to select mode group 11
(100%, 20%, strobe)

       ————-sub-option
1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100%
only)

   Option 2 (normal-flash
2 times + buzz-flash): tap the switch to active the
mode memory or inactive it,If the user has no operation,flashlight will
enter into the last mode.

battery-check instructions:

 <2.95V    1 flash,

2.95-3.25V  2 flashes,

3.25-3.55V  3 flashes,

3.55-3.85V  4 flashes,

>3.85V     5 flashes
