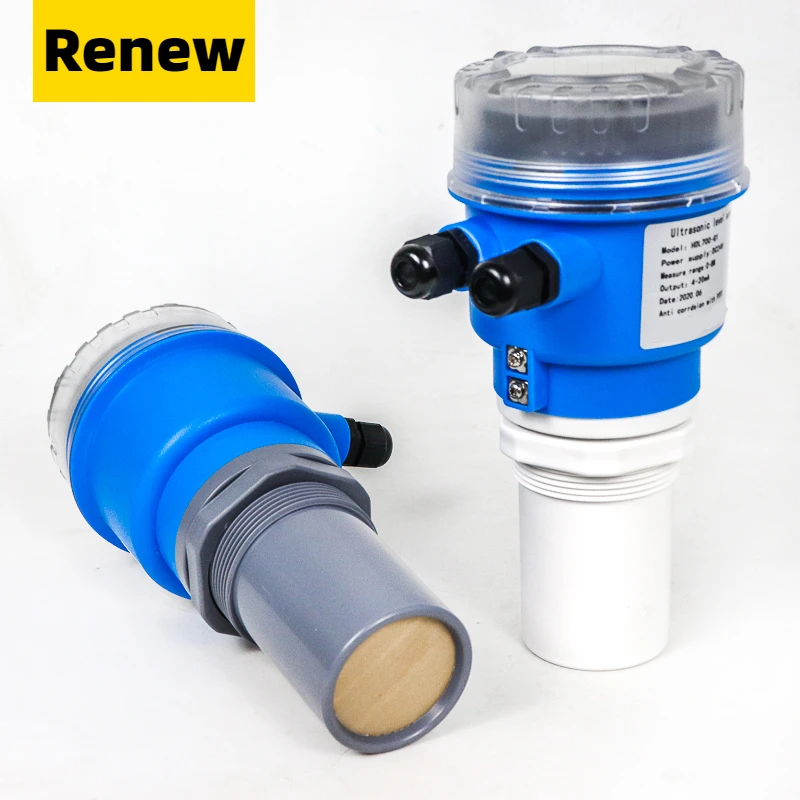

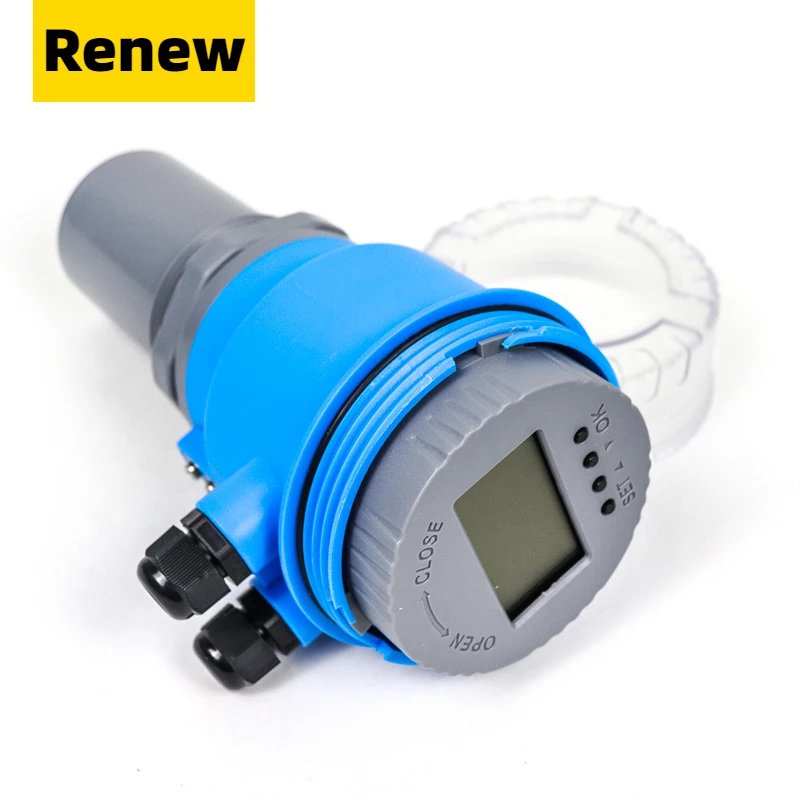

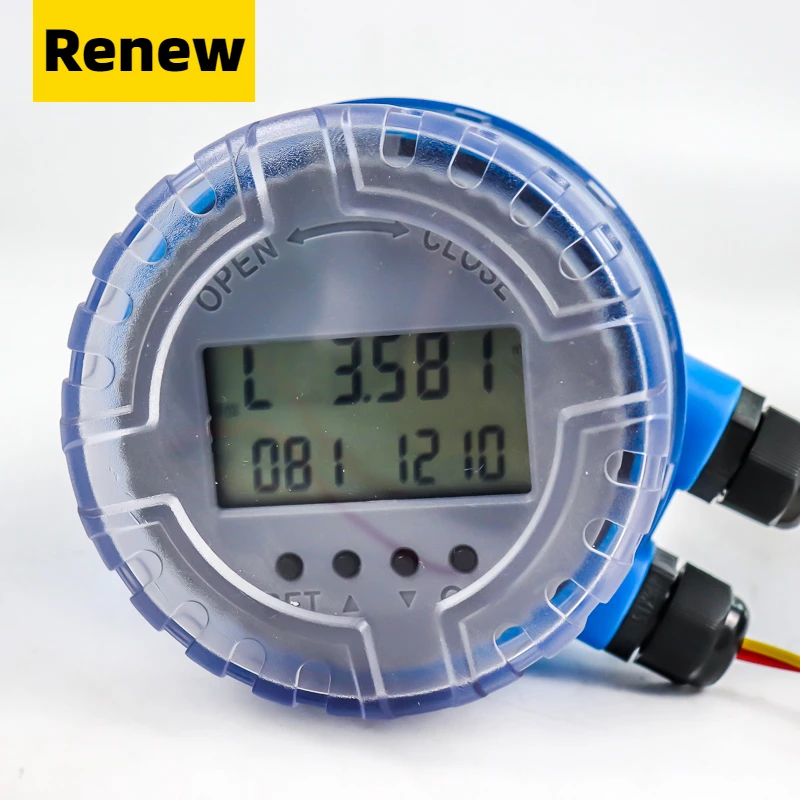

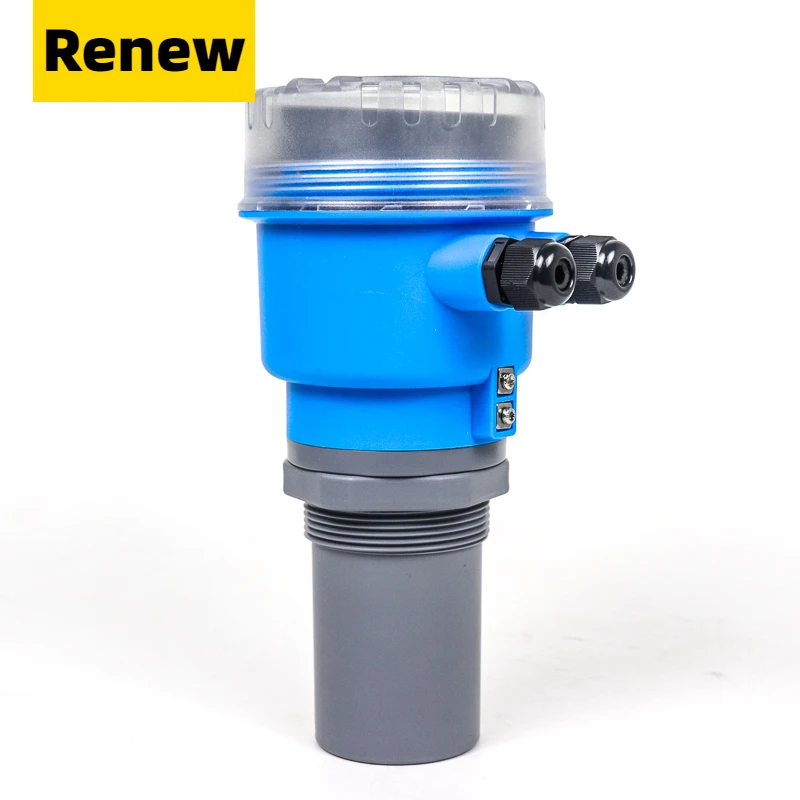

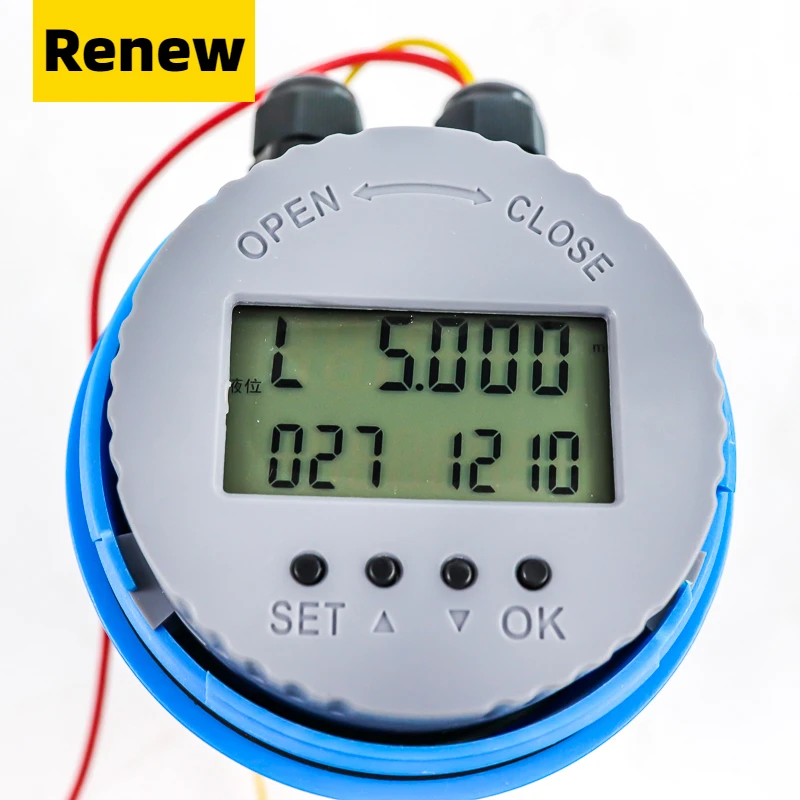

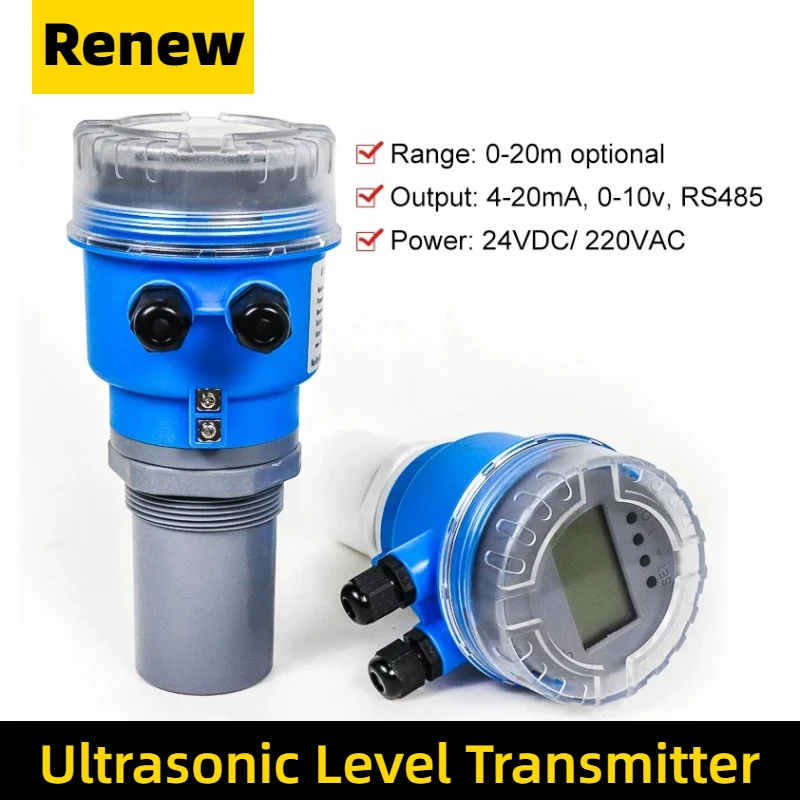

tank level gauge Ultrasonic Liquid Level Meter Water Level Measurement 4-20mA relay Output
Notes:
What we can make:
1. Available measuring range: any range within 0~20 metres
2. Available output signal: 4~20mA, 0~10V, 0~5V, RS485, 2 relays
3. Available power supply: DC24V, AC220V
So: if you need other parameters, please contact me.
And tell me the measuring range, output signal, power supply.
We can make special customization for you.
Product Description
1>>. Ultrasonic level gauges/Ultrasonic level transmitter includes several proprietary technologies, is safe and clean, with high precision and long service life, stable and reliable, and convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature.
2>>. Ultrasonic level gauges/Ultrasonic level transmitter all input and output lines must be with such protection functions as lightning protection and short circuit prevention. Ultrasonic wave spread speed among gas is influenced by gas temperature, When level meter works, it measures gas temperature needing, compensates for the velocity of sound, so as to ensure the precision of measuring.
Measuring range
0…20m
Blind area
0.35-0.5m
Output signal
4~20mA,0~5V/0~10V/RS485,HART
Power supply
DC24V, AC220V
Measurement accuracy
0.5%F.S.
Response time
1.5s
Resolution
1mm
Medium temperature
-10~45℃
Shell material
ABS
Probe material
PP/PE/PTFE
Electrical interface
PG9
Installation interface
G2
Compatible medium
Solid, liquid, gel, etc
Product Features
Product Application
FAQ
Q: Are you the final manufacturer?
A: Yes, we are the leading sensor manufacturer with 10+ years of experience.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you.
Q: What payment ways do you accept?
A: You can pay us by credit card, T/T, PayPal, by Alibaba Insurance Order.
Q: What is your delivery time?
A: It is in 2 days since the payment was confirmed. If the quantity is more than 100pcs /order, it will need extra 3-4 working days.
Q: What is your normal delivery way?
A: We use DHL / FEDEX / UPS / SF or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is free to exchange within one month and 12 months quality guarantee.
Q: Can I be your exclusive distributor?
A: Yes surely, we welcome business partners who can achieve a long-term relationship of trust with each other.
Product Description
1>>. Ultrasonic level gauges/Ultrasonic level transmitter includes several proprietary technologies, is safe and clean, with high precision and long service life, stable and reliable, and convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature.
2>>. Ultrasonic level gauges/Ultrasonic level transmitter all input and output lines must be with such protection functions as lightning protection and short circuit prevention. Ultrasonic wave spread speed among gas is influenced by gas temperature, When level meter works, it measures gas temperature needing, compensates for the velocity of sound, so as to ensure the precision of measuring.
Measuring range
0…20m
Blind area
0.35-0.5m
Output signal
4~20mA,0~5V/0~10V/RS485,HART
Power supply
DC24V, AC220V
Measurement accuracy
0.5%F.S.
Response time
1.5s
Resolution
1mm
Medium temperature
-10~45℃
Shell material
ABS
Probe material
PP/PE/PTFE
Electrical interface
PG9
Installation interface
G2
Compatible medium
Solid, liquid, gel, etc
1>>. Ultrasonic level gauges/Ultrasonic level transmitter includes several proprietary technologies, is safe and clean, with high precision and long service life, stable and reliable, and convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature.
2>>. Ultrasonic level gauges/Ultrasonic level transmitter all input and output lines must be with such protection functions as lightning protection and short circuit prevention. Ultrasonic wave spread speed among gas is influenced by gas temperature, When level meter works, it measures gas temperature needing, compensates for the velocity of sound, so as to ensure the precision of measuring.
|
Measuring range
|
0…20m
|
|
Blind area
|
0.35-0.5m
|
|
Output signal
|
4~20mA,0~5V/0~10V/RS485,HART
|
|
Power supply
|
DC24V, AC220V
|
|
Measurement accuracy
|
0.5%F.S.
|
|
Response time
|
1.5s
|
|
Resolution
|
1mm
|
|
Medium temperature
|
-10~45℃
|
|
Shell material
|
ABS
|
|
Probe material
|
PP/PE/PTFE
|
|
Electrical interface
|
PG9
|
|
Installation interface
|
G2
|
|
Compatible medium
|
Solid, liquid, gel, etc
|
Product Features
Product Features
Product Application
Q: Are you the final manufacturer?
A: Yes, we are the leading sensor manufacturer with 10+ years of experience.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you.
Q: What payment ways do you accept?
A: You can pay us by credit card, T/T, PayPal, by Alibaba Insurance Order.
Q: What is your delivery time?
A: It is in 2 days since the payment was confirmed. If the quantity is more than 100pcs /order, it will need extra 3-4 working days.
Q: What is your normal delivery way?
A: We use DHL / FEDEX / UPS / SF or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is free to exchange within one month and 12 months quality guarantee.
Q: Can I be your exclusive distributor?
A: Yes surely, we welcome business partners who can achieve a long-term relationship of trust with each other.
