Minimeta
Disposable Single gas detector
Product overview

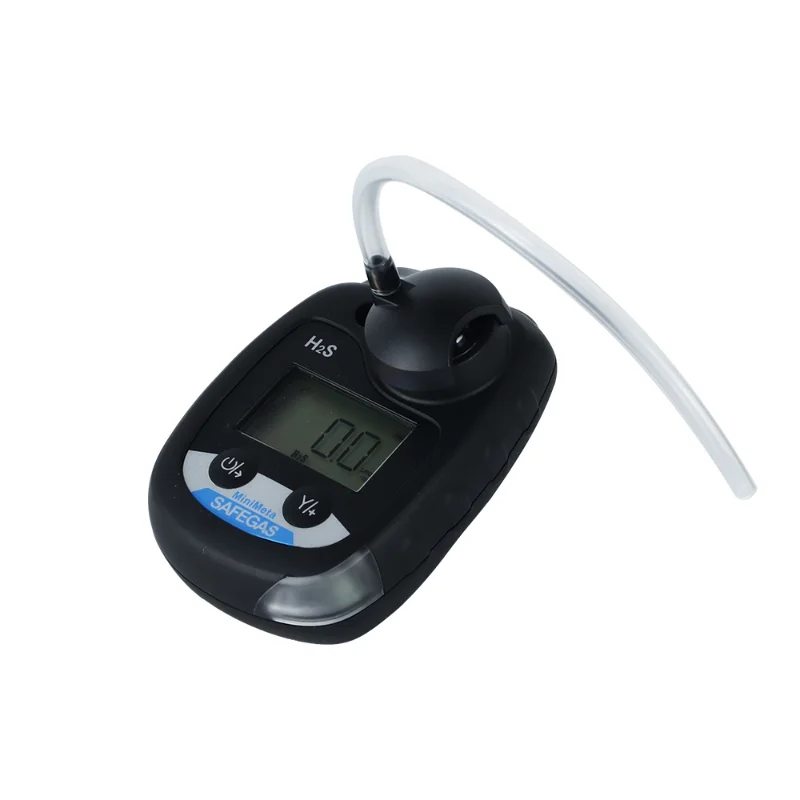

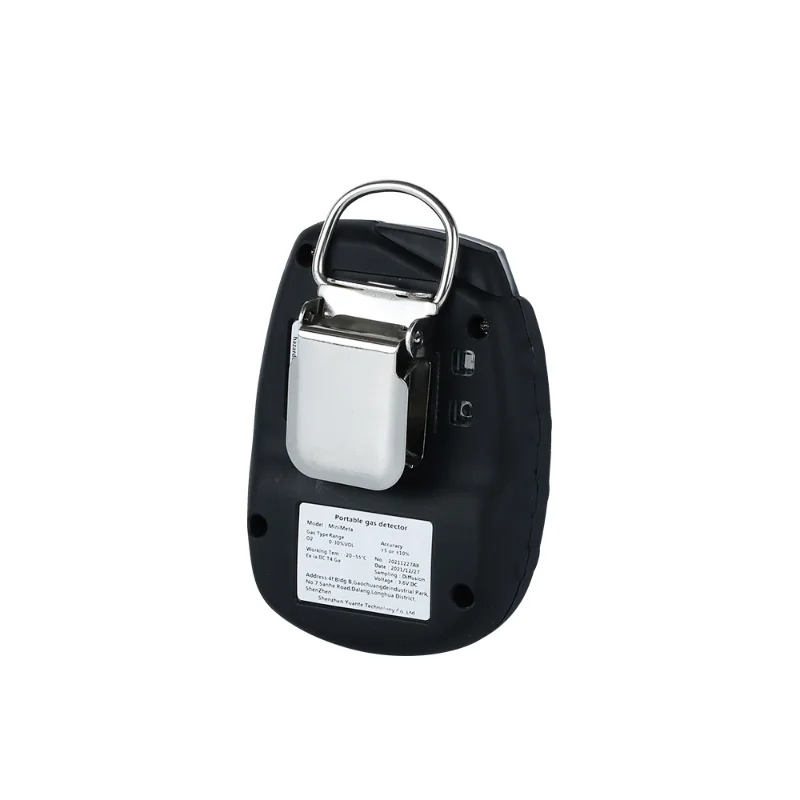

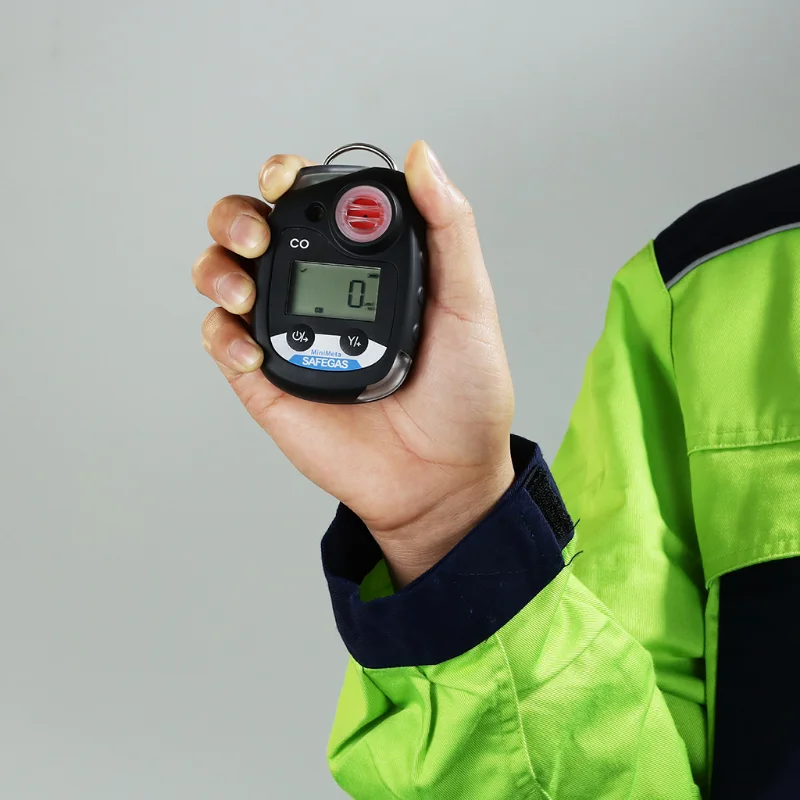

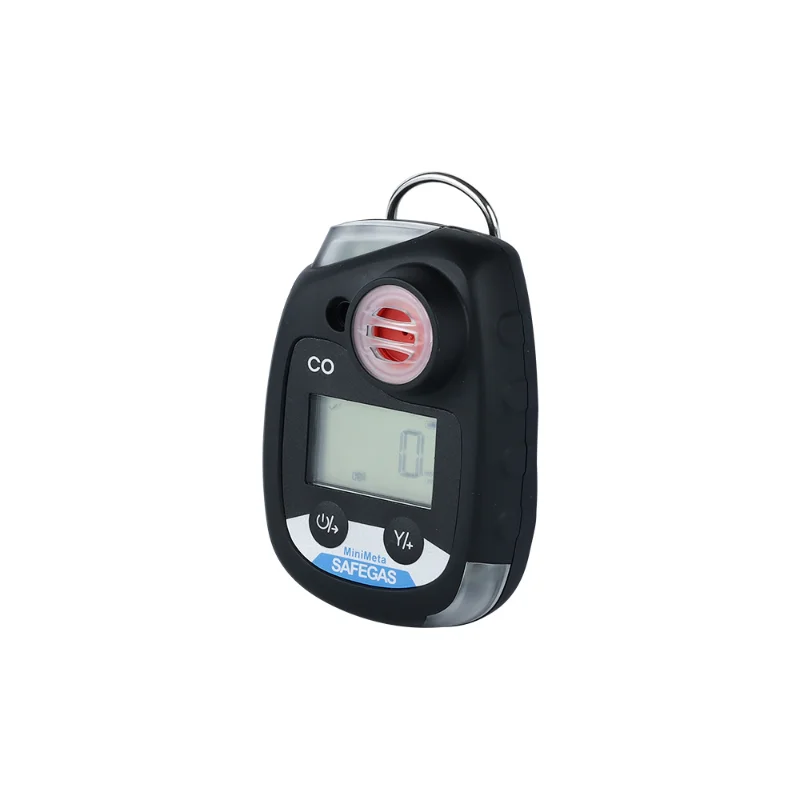

MiniMeta is a maintenance-free single gas detector, it offers up to 2 years of protection-with no need for calibration, sensor replacement, battery replacement or battery charging. It’s IECEx, ATEX, CNEX explosion proof certificated and meet the highest standards of quality and reliability to ensure workers’safety and compliance. MiniMeta is small, sturdy, ergonomic, and can be attached to a work coat or cap with alligator clips for easy carrying.
Product advantage
1. Low power consumption and long standby time, the standby time is up to 2 years, no need to replace the battery
2. Maintenance free: just turn on the device and it will run continuously -no calibration, no sensor replacement, no battery charging
3. Ultra-high buzzer alarm sound, 2 high-bright red LED up and down alarm, sound, light and vibration triple alarm to remind workers
4. High point alarm, low point alarm, TWA, STEL multiple alarm types, the user can adjust the alarm set point as needed throughout the life cycle
5. Automatic logging 10 sets of recent alarm events for easy and accurate record keeping
6. Protection class IP68, splash-proof, dust-proof, explosion-proof, shock-proof, intrinsically safe circuit design
7. Compact and lightweight design with two-button operation without extensive training
8. Affordable, with low cost of ownership
9. Small size, light weight, easy to carry
10.The shell is made of high-strength materials, designed for a variety of harsh environments, comfortable and durable
11. With self-test function, which can improve safety by automatic self-test
Specification
|
Detect gas
|
O2
|
|
Sensor type
|
Electrochemical ( Honeywell or CITY brand sensor)
|
|
Sampling method
|
Diffusion
|
|
Measure range
|
0-30%VOL
|
|
Resolution
|
0.1%VOL
|
|
Precision
|
≤± 3% F.S.
|
|
Response Time
|
≤30s(T90)
|
|
Unit
|
%VOL
|
|
Display
|
Gas name, concentration unit, measured value, electricity
|
|
Alarm mode
|
Sound, light, vibration alarm, high and low alarm values can be set by yourself
|
|
Alarm type
|
Low alarm, high alarm, STEL, TWA, low battery
|
|
Display
|
LCD Display
|
|
Operating language
|
Chinese/English
|
|
Size
|
90*60*33mm
|
|
Weight
|
125g
|
|
Working Temperature
|
-20℃~50℃
|
|
Working Humidity
|
0-95%RH
|
|
Working air pressure
|
86~106kpa
|
