Saturated silver chloride electrode R0303/5 Agcl silver/silver chloride reference electrode can be invoiced

Price: -

Main technical data

1. Electrode internal resistance：≦10KΩ

2. Flow rate of the liquid part: ≥ 1 drop/10min

3. Electrode made of silver chloride solid immersed in solution containing CL-1，It can be expressed as Cl-（x mol• L^-1）AgCl，Ag，Electrode reaction is AgCl+e-→Ag+Cl-。

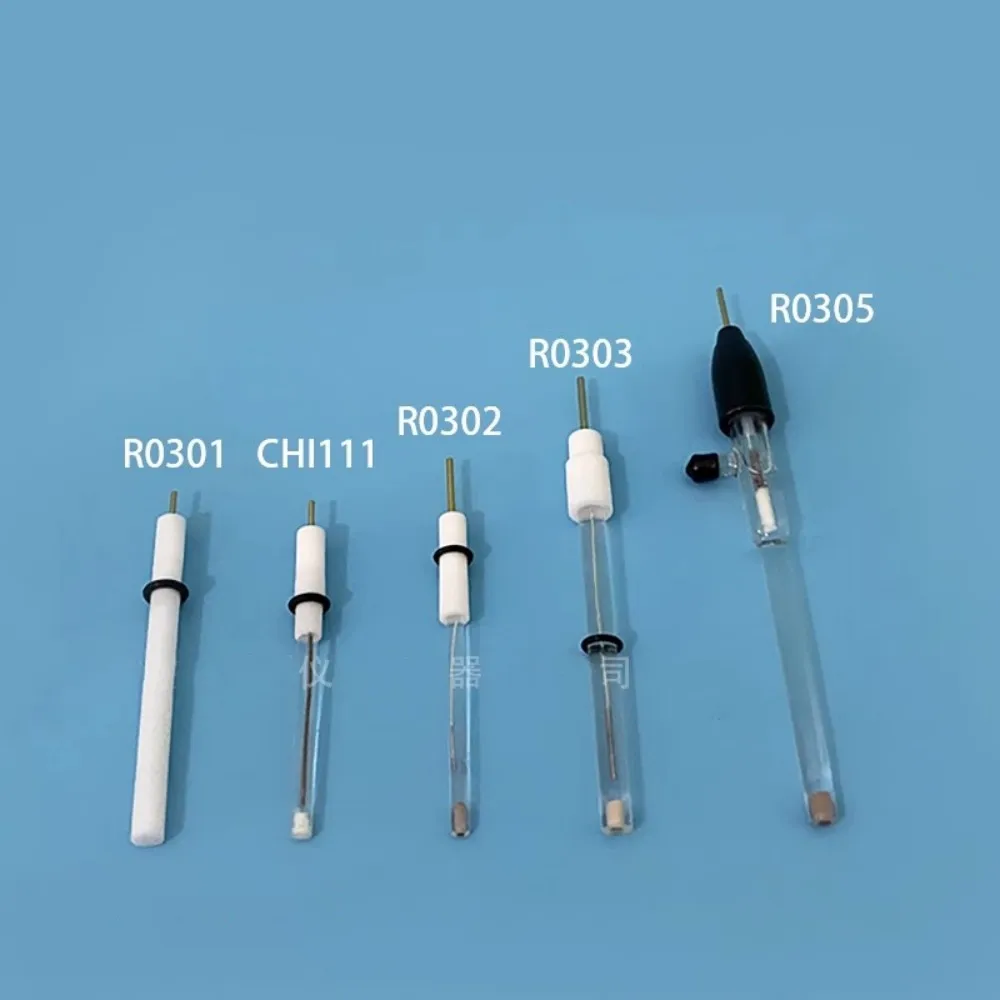

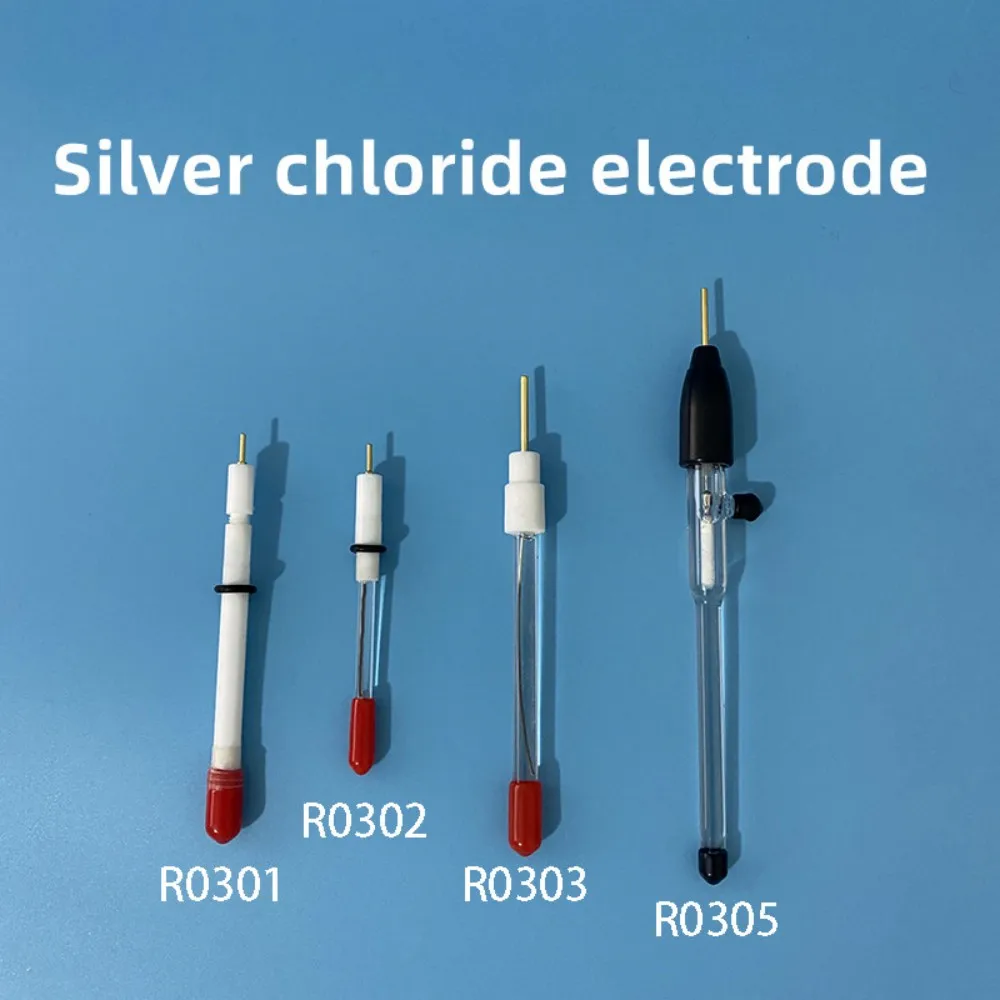

Electrode modelSpecifications   Salt bridge solution electrode potential

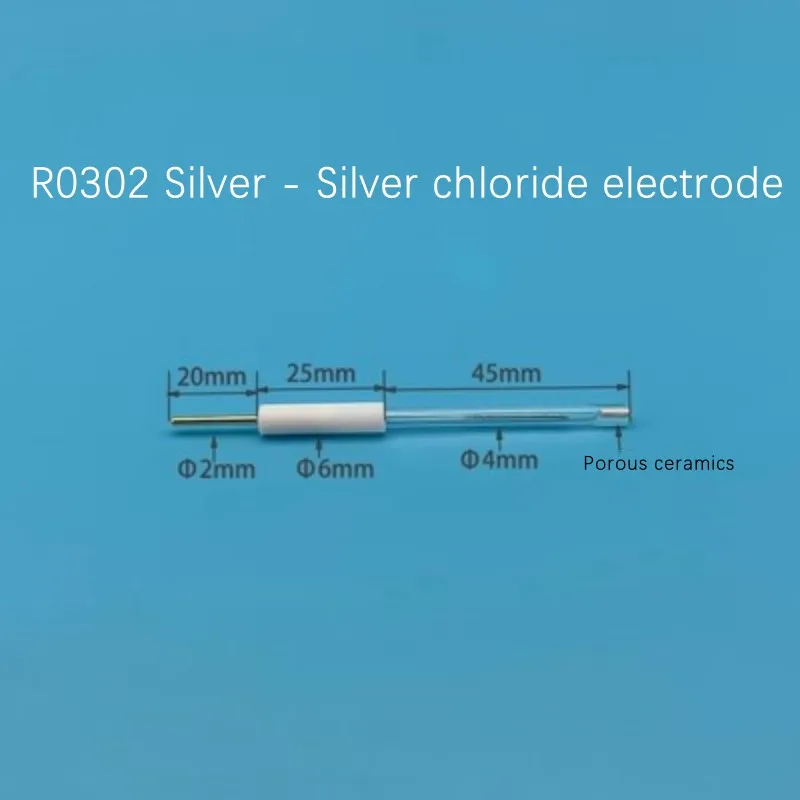

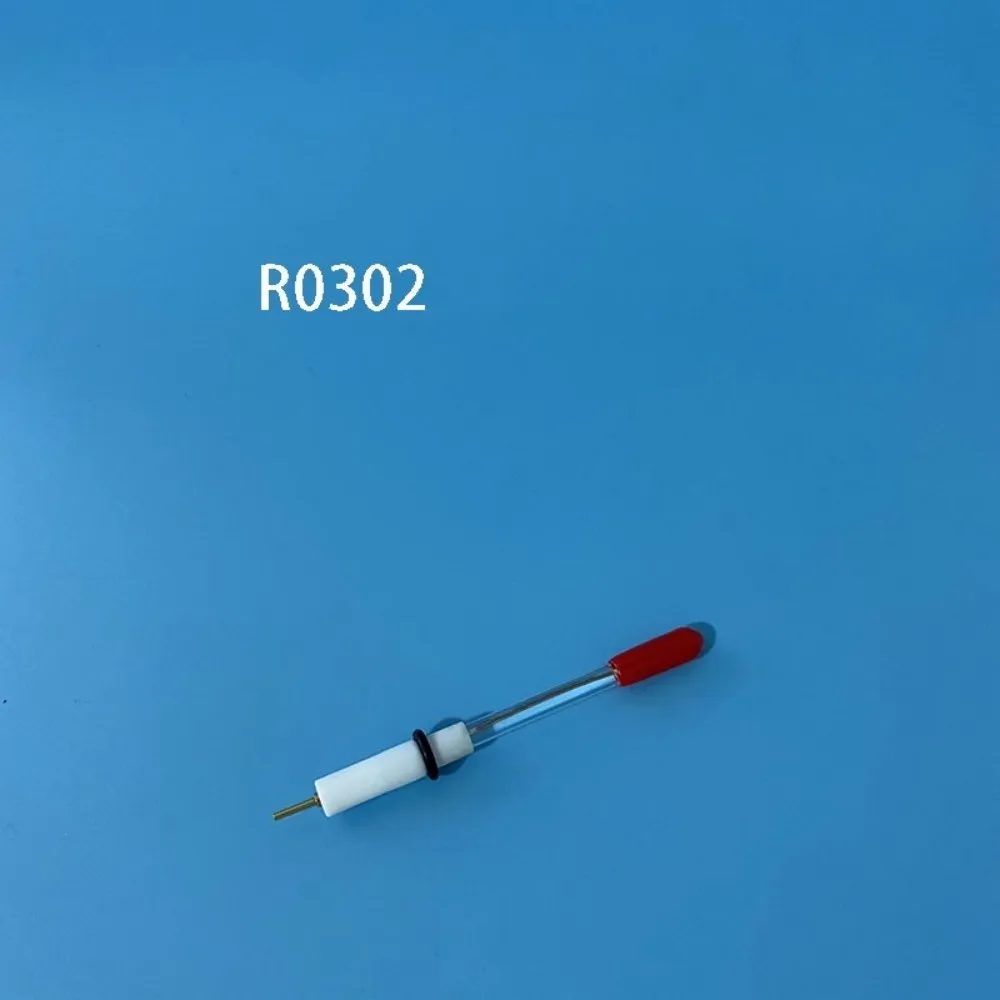

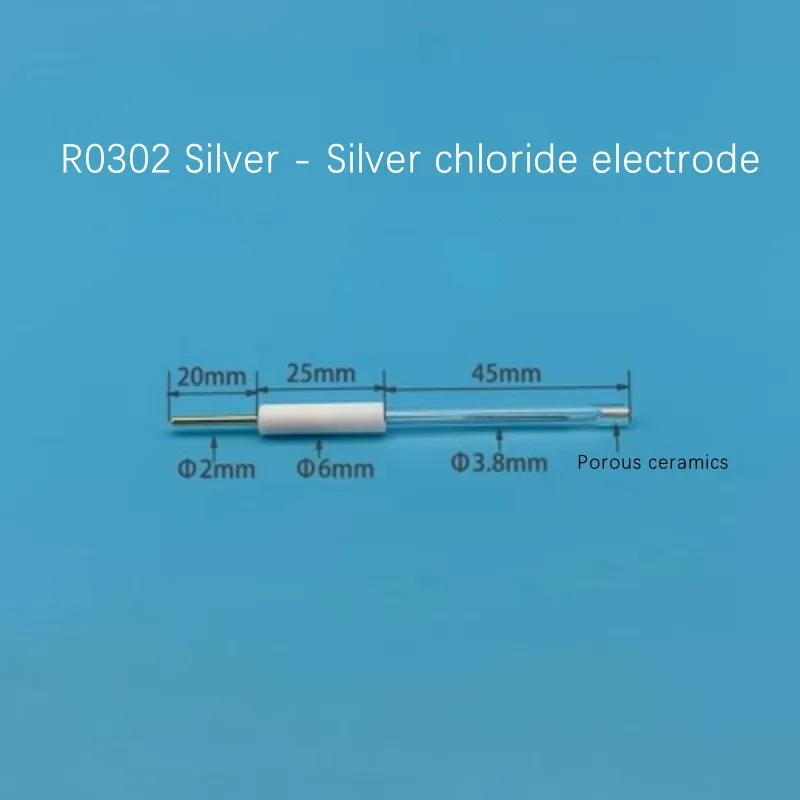

R0302 Diameter 3.8mm        3.5M/KCL              0.2046V/for NHE

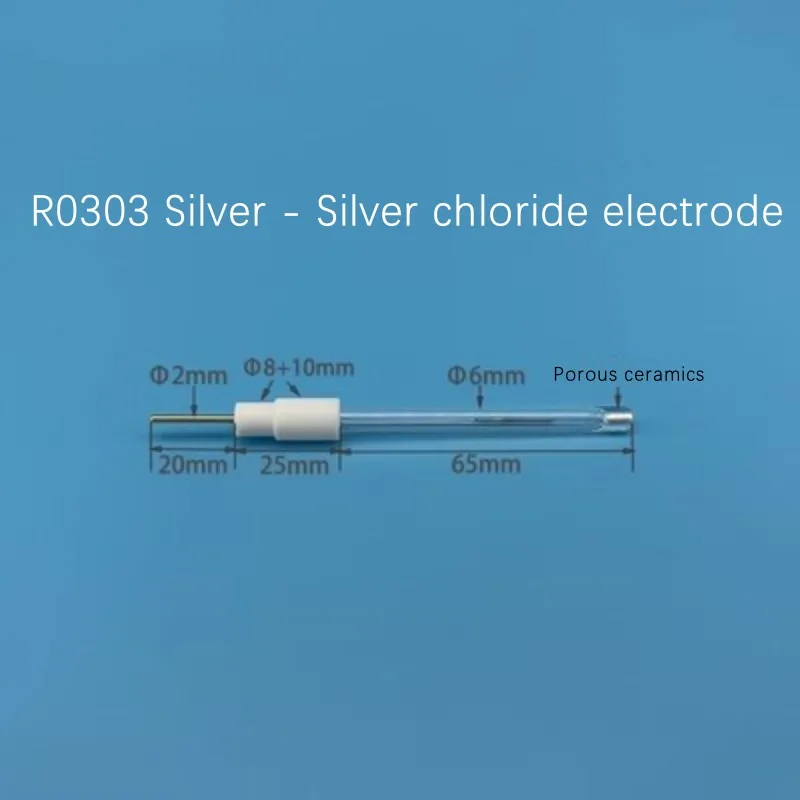

  R0303       Diameter 6mm          3.5M/KCL             0.2046V/for NHE

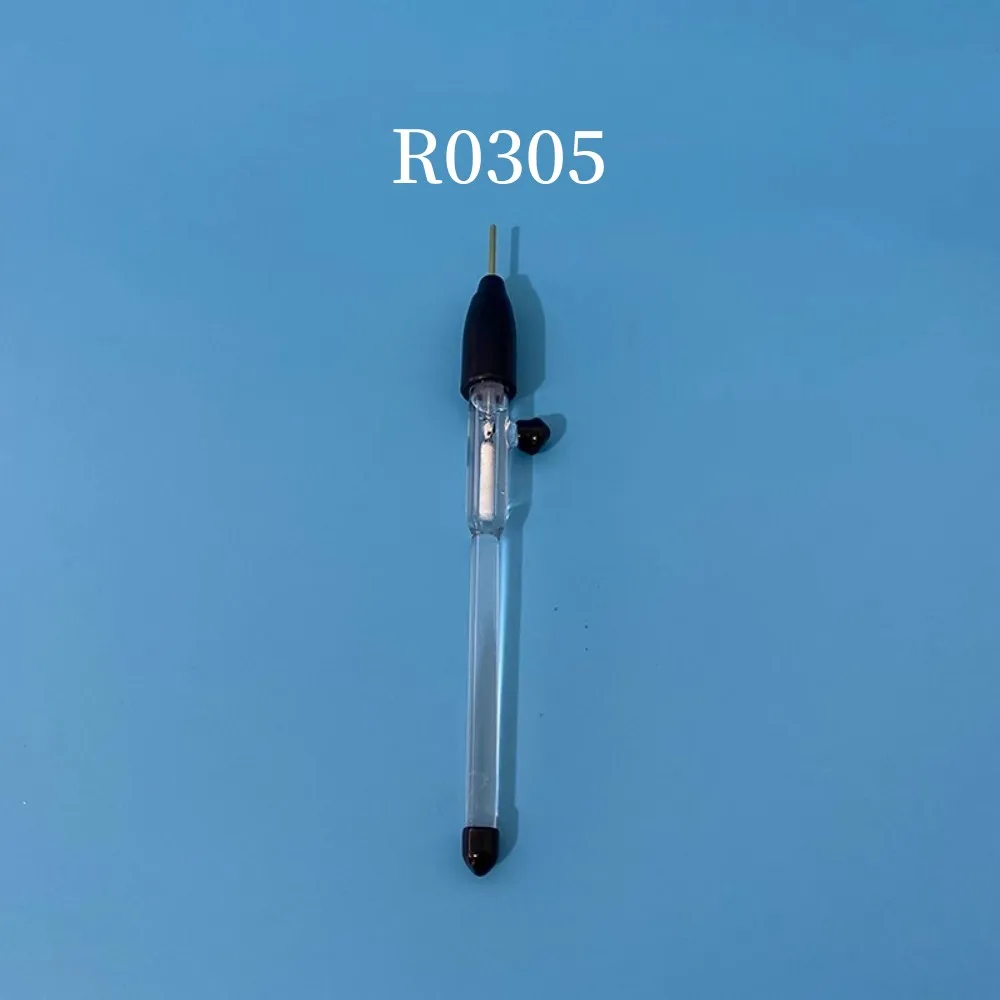

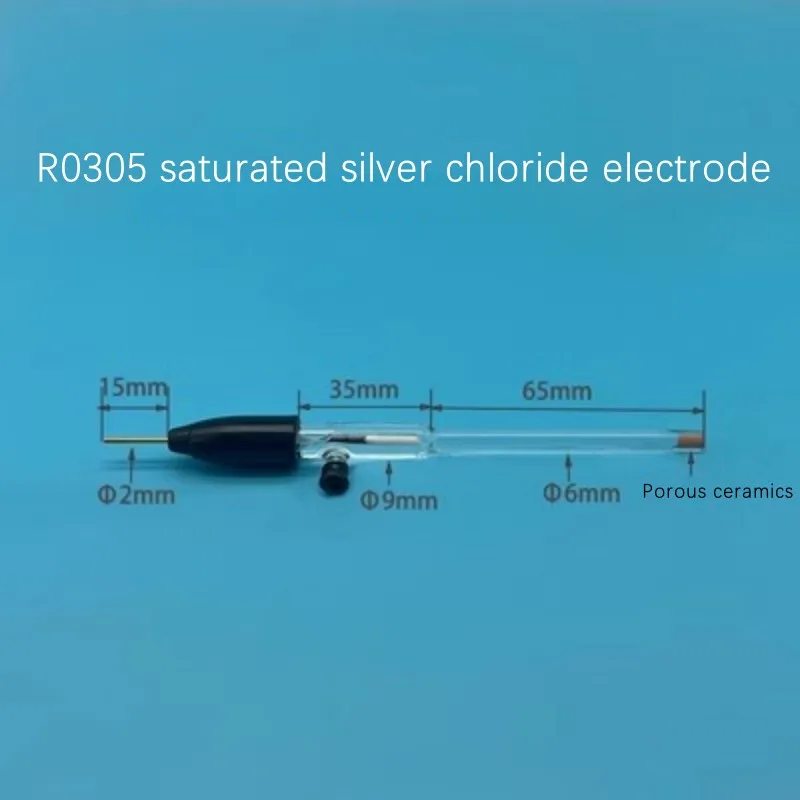

  R0305       Diameter 6mm          Saturated KCL          0.1989V/pair NHE

Note 1: Electrode standard potential at 25 ℃

Note 2: The electrode can be used normally at this temperature, but the electrode potential will change with the change of temperature.
