Specification:
Model: DR-TC200
Sensor Type: Electrochemical, Infrared, Semiconductor, PID
Detection Gas: Toxic Gas, Oxygen
Detection Range: 0-30%VOL; 0-NPPM
Minimum Reading: 0.01%/0.1%VOL, 0.1/1/10PPM
Indication Error: ±5%FS
Sampling Mode: Diffusion Type
Product Size: 215*205*80mm
Product Weight: 1.6KG
Power Supply: DC 24V
Electrical Interface: G3/4
Explosion Proof: Ex d Ⅱ C T6 Gb
Production Grade: IP66
Output signal: 4-20ma/RS485/Switching Value(optional)
Alarm Mode: LED Display + Sound & Light Alarm

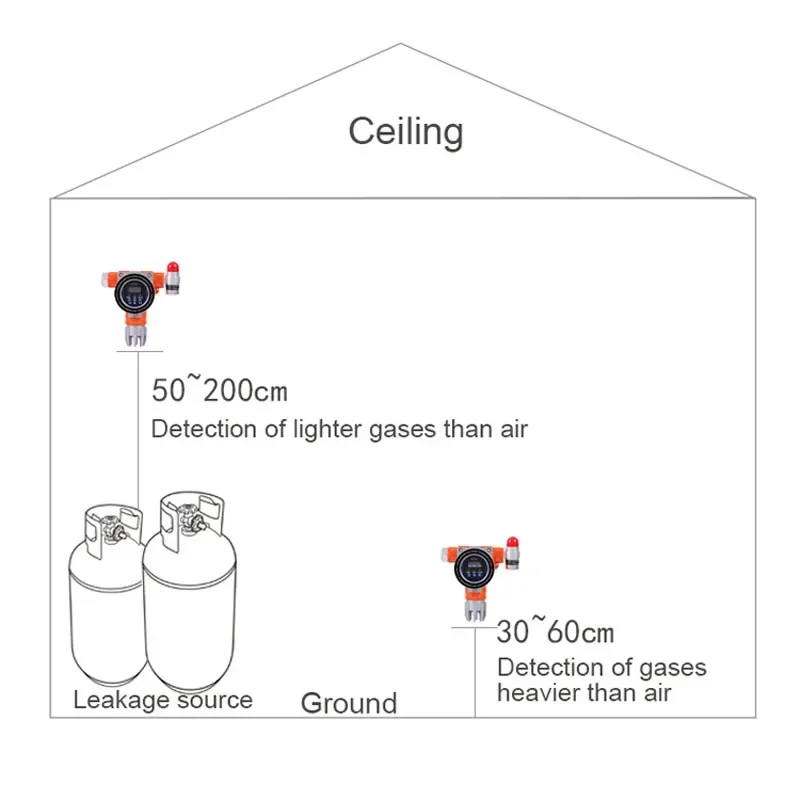

Way to Install: Fixed Bracket/Tube Mounting/Wall Mounting
Using the Environment: Humidity(0-95)%RH/Temperature -20℃-50℃
Feature:
1. IP66 has a high level of protection against splashing..
2. Adopting high precision sensor for accurate gas leak detection.
3. Real-time display of gas concentration, normal, fault, high & low alarm.
4. High accuracy sensor, strong interchangeability and high reliability.
5. Brightness LED display, English menu, easy to operate.
