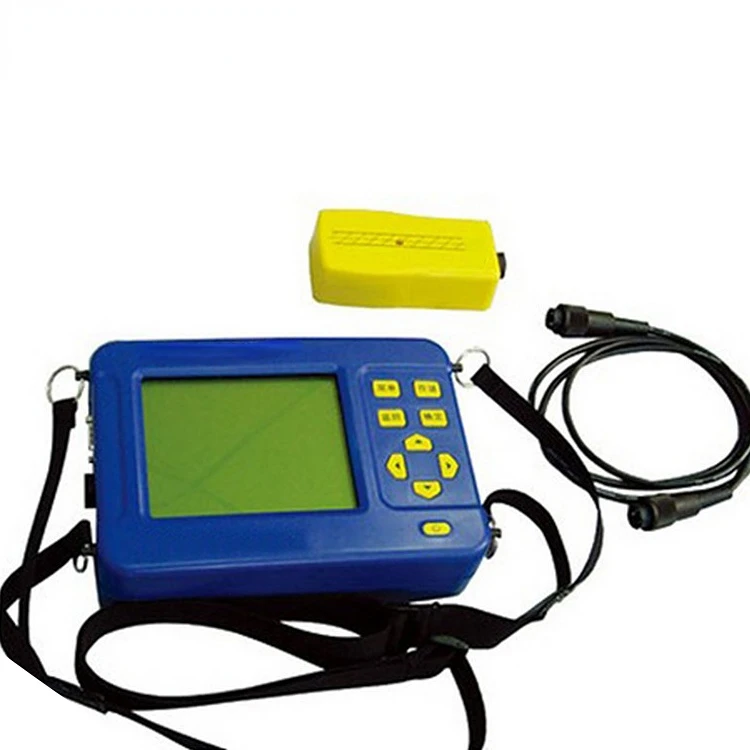

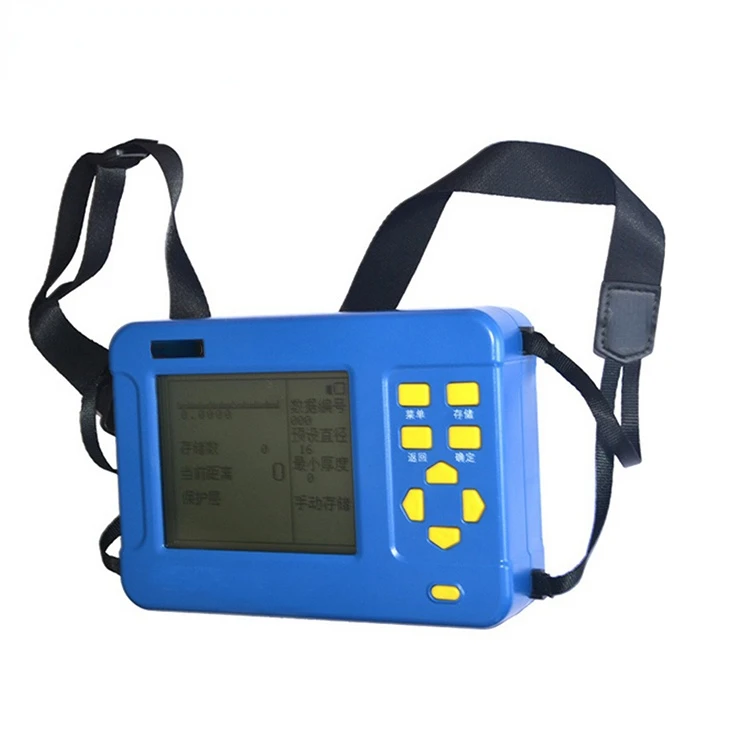

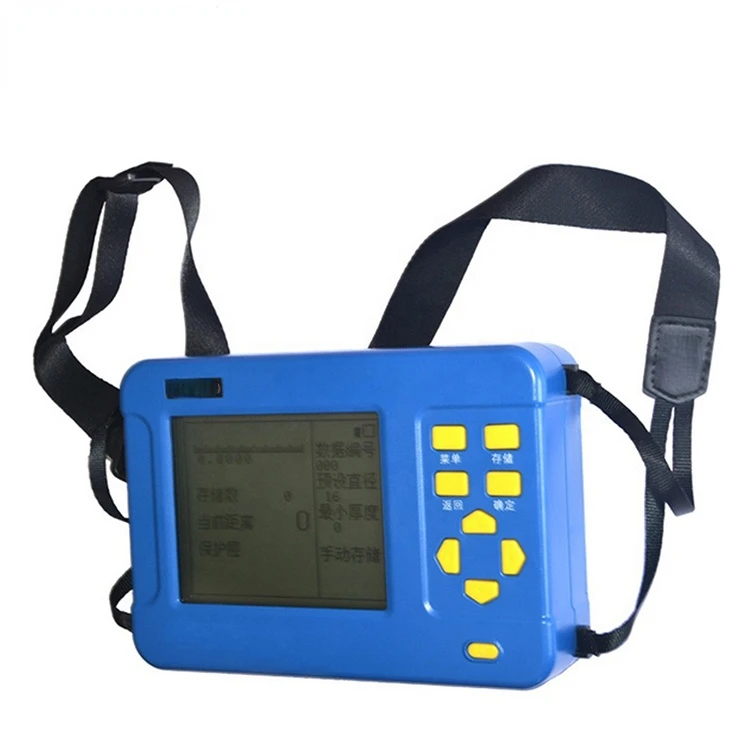

ZBL-R620 Rebar detector
Introduction:
ZBL-R630A is used to test the location of rebar in concrete, rebar cover meter, and the diameter, orientation, and distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magnetic and conductor such as cables and metal pipes in non-magnetic medium and non-conducting medium.
Features:
1. With two probes, you can have a quick and accurate scan;
2. Unique all-wheel, dustproof and waterproof, multi-parameter rebar probe ensures accuracy and reliability of data taking;
3. Rebar detection is automatically alerted by the probe via flashing red light;
4. Data can be stored on usb-thumb drive, great for field work;

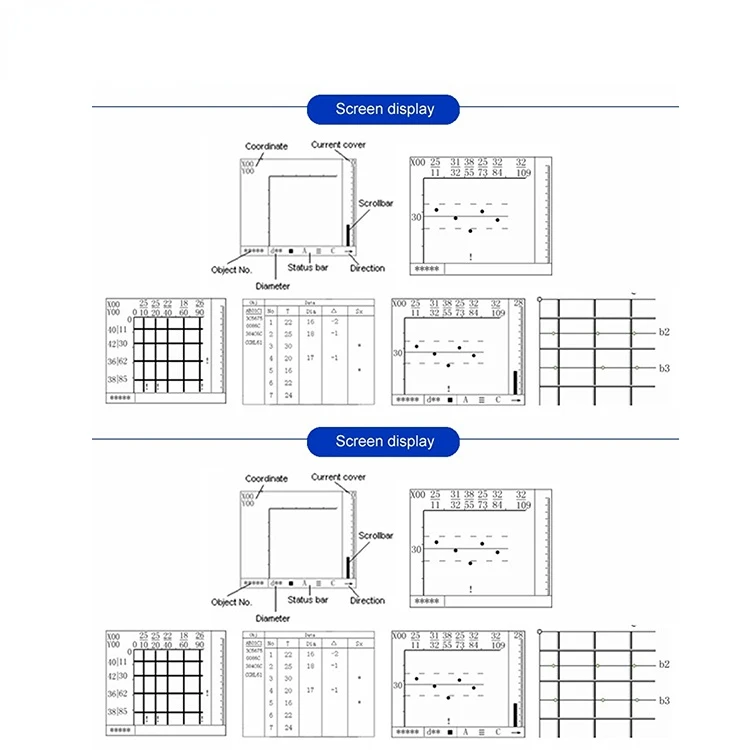

5. The device can generate rebar distribution maps;
6. Powerful professional analysis-process software allows for the automatic generation of test reports;

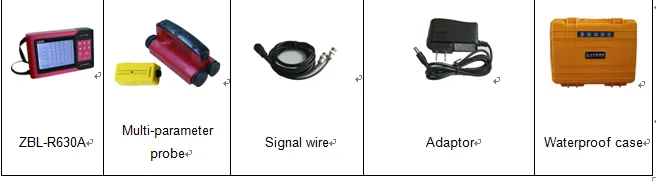

Standard configurations
Technical Specifications
|
Model |
ZBL-R630A |
|
|
Applicable rebar diameter range(mm) |
φ6~φ50 |
|
|
Max cover meter range(mm) |
First range |
3~98 |
|
Second range |
3~196 |
|
|
Max allowed error of cover meter |
±1(mm) |
3~77 |
|
±2(mm) |
58~118 |
|
|
±4(mm) |
70~196 |
|
|
Applicable diameter range(mm) |
φ6~φ50 |
|
|
Max allowed error for diameters measurement |
±1 |
|
|
Common scanning |
ü |
|
|
Dense bars scanning |
ü |
|
|
Profile Scanning |
ü |
|
|
Grid Scanning |
ü |
|
|
Image Scanning |
— |
|
|
Scan range |
borderless |
|
|
Data correction |
Manually |
|
|
Data transfer |
USB |
|
|
Screen |
160×128 |
|
|
Power |
Built-in battery |
|
|
Size(mm) |
212×135×52 |
|
|
Weight(kg) |
0.9 |
|
|
Sensor |
Double sensor |
|
