If you do not have prior experience with a metal detector,we strongly recommend that you:
1):Adjust the Gain to a low setting in the event of false signals.
2):Do not use indoors.This detector is for outdoor use only.
Many household appliances emit electromagnetic energy, which can interfere with the detector. If
conducting an indoor demonstration, turn the Gain down and keep the search coil away from
appliances such as computers, televisions and microwave ovens.
If your detector beeps erratically, turn off appliances and lights.
Also keep the search coil away from objectsco ntainingmetal,suchasfloors and walls.
3): Usea9-voltALKALINEbattery only. Do not use Heavy Duty Batteries.
Introduction to the TX-850 DEEP PENETRATING GOLD NUGGET HUNTER
The New TX-850 is unique among gold prospecting metal detectors for its combination of high
sensitivity to small gold nuggets and its versatile function as an allpurpose treasure detector.
The controls and features are tailored to gold prospecting, including a sophisticated ground
balancing system, separate control over signal gain and threshold,and aunique discrimination
control system.
These features also make foragreatrelic-hunting detector. While theTX-850 makes
fora highly competentcoin-shootingdetector,its user interface and features are not specifically
designed for this purpose.
As a coin-shooter,you will notice that the TX-850 exhibits slightly lower sensitivity to high-
conductivity coins,likeaU.S. quarter; this is a resul to fits specialized design to empha-size
sensitivity to small, low conductivity metals like gold nuggets.
Device Specifications
Mechanical: S-rod with electronics housing on rod, 3-piece breakdown construction, nonmetallic telescoping lower rod, adjustable position armrest
Standard searchcoil: 11 inch searchcoil
Batteries: Single 9 volt rectangular alkaline
Operating principle: VLF induction balance
Operating frequency: 19 kHz, crystal controlled
Reactive overload: 10,000 micro-cgs (with standard searchcoil)
Resistive overload: 1,200 micro-cgs (with standard searchcoil)
Ground balance range: From ferrite to salt water inclusive
Discrimination ground suppression: Combination of 2 nd and 3 rd order methods
Target-ID ground suppression: 3 rd order
Battery life: 15+ hours on good quality alkaline
Operating temp range: 14 to 122 degrees F (-10 to +50 C)
Operating humidity range: 0 – 90% noncondensing
SEARCH TECHNIQUES
Target Verification
After detecting a target, do the following:
1. Walk around the target in acircle.
2.While circling the target, conttinue sweeping the search coil across the target.
3.Sweep once every 30° or 40° of the circle.
If the tone does not change and the Target-ID value is consistent as you circle the target, you can be highly confident of the target’s identification.
If the tone or Target-ID changes as you circle the target,you may have multiple targets or an irregularly shaped object.
If the tone completely disappears at different angles, the target may be trash or a low- valuemetal.
If you are new to the hobby, dig all targets. With practice in the field, you will soon be able to
correlate audible and visual target feedback with certain types of metal objects.
Pinpointing in Discrimination Mode:
1. Sweep over target in narrowing side-to-side pattern.
2. Takevisual note of spot on ground where “beep” occurs.
3. Step 90° to the side of the target.
4. Sweep searchcoil over same area, at 90° to 1st sweep pattern.
5. This pinpoints the target location with an “X.”
TARGET PINPOINTING
After you have identified a target using Discrimination Mode,press-and-hold the PINPOINT button to identify the target’s exact location. This technique can yield more information about the target’s shape and size and also find its exact location to facilitate extraction.
Pinpoint as follows:
1. Position the searchcoil just barely off the ground, and to the sideof the target.
2. Now move the searchcoil slowly across the target; you can locate it by the sound. The target is located directly under where the sound is loudest.
Narrow It Down:
1. Tonarrow the response further, position the center of the searchcoil
near the center of the response pattern, but not directly over the center.
2. Release the PINPOINT button.
3. Press-and-hold PINPOINT button again.
4. Repeat this narrowing procedure to narrow the field of detection further.
Note: Depth indication is less accurate after narrowing.
Main material: plastic
Power: 1 * 6F22 9V battery (not included)
Frequency: 19.23KHZ
Current: standby 20mA
Voltage: 7.2-9V
Basic sensitivity: UScoin (12-15 inches)
Detection depth: Maximum: 1.5 meters (50 x 50 x 1.2 cm aluminum plate)
Detection indication: LCD analogue display mode, sound indicator
Control: power switch
Sensitivity: adjustable
Adjustable height of extension aluminum tube: 640-870mm
The search coil is waterproof, but the control housing is not waterproof.

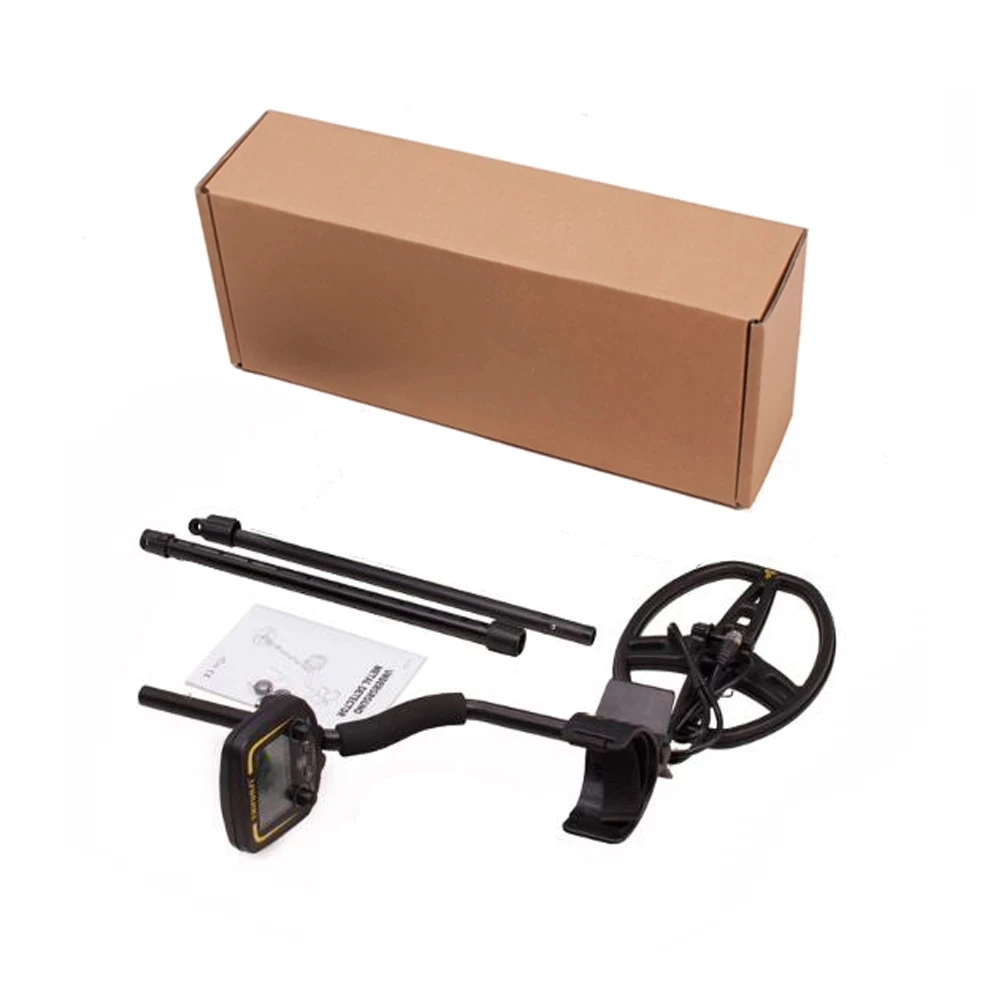

Packing Including
