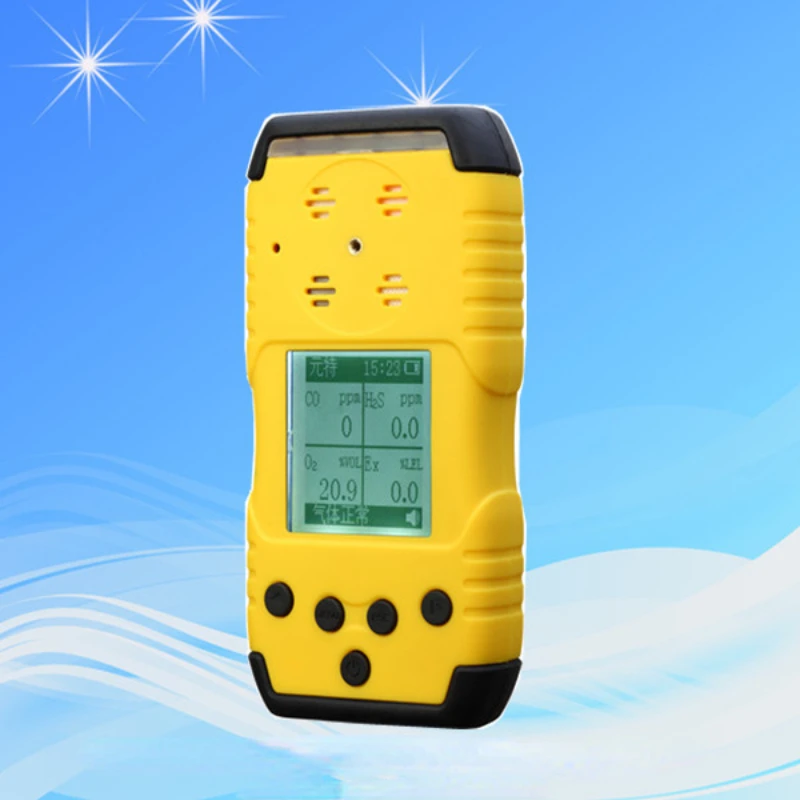

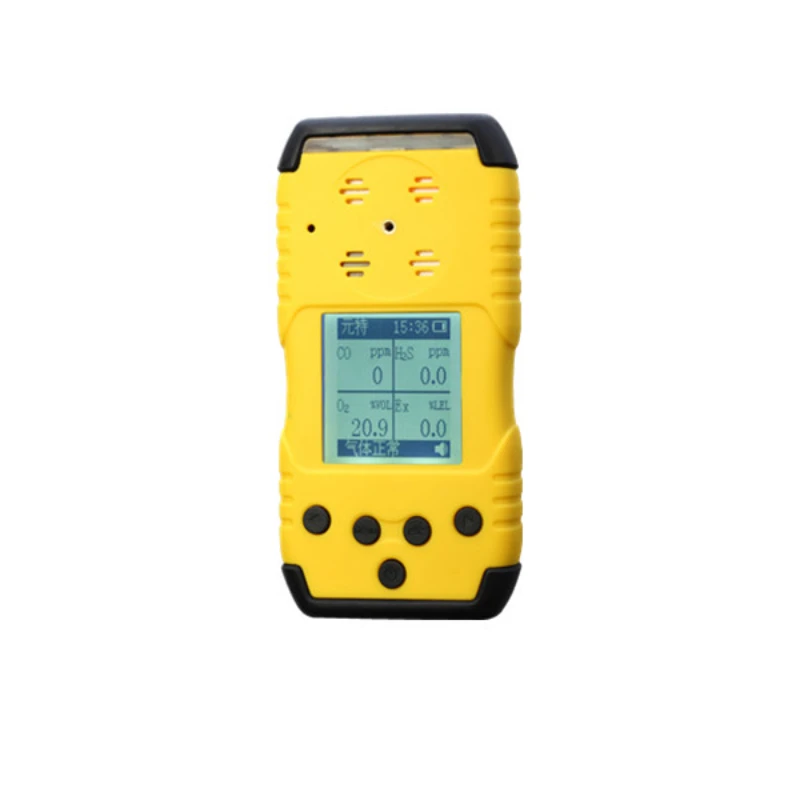

ETO Ethylene Oxide Gas Detector of Industrial Safety Equipment
Characteristics
lLCD dot matrix display, support Chinese and English operation.
lThe gas concentration unit PPM and mg/m3 can be shifted quickly.
lUltra-high buzzer alarm sound, higher and lower alarm values are settable.
lData storage function, historical data can be viewed on the device and also can be exported and printed by connecting to computer (optional).
l Rechargeable lithium polymer battery of large capacity, which ensure the device to work continuously for a long time.

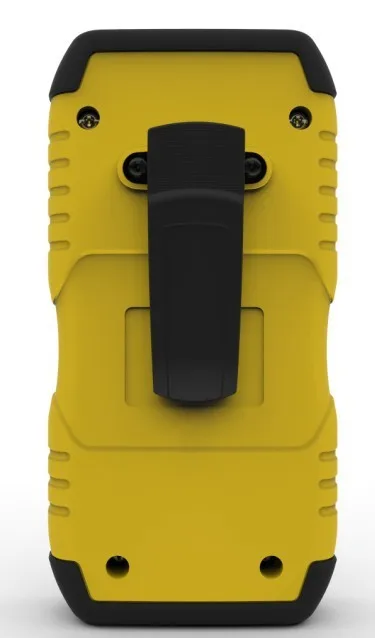

lStrong and upscale alligator clip, convenient to take along during operation.
Technical Specification
l Target Gas: ETO/ethylene oxide
lDetection principle: Electrochemistry
lMeasure range: 0-10ppm, 0-20ppm, 0-50ppm,0-100ppm,0-200ppm,0-500ppm,0-1000ppm
lResolution: 0.01ppm,0.1ppm,1ppm
lPrecision: 3%FS
lSampling method: Diffusion (add external sampling pump if necessary)
lUnit: ppm,mg/m3
lDisplay: Monochrome dot matrix 128*128 LCD graphic display.
lBacklight:Time of backlight is settable, when alarm the backlight will be auto on.
lData recording:Storage capacity of over one hundred thousand sets, it can continue to store for 15 months with interval of 5 minutes. Interval time ranges from 10~3600 seconds are settable. (Optional function)
lData transmission:High speed data transmission by USB, and is available for data downloading and printing after installing necessary software (optional function).
lCalibration: two target point calibration, both can be set up a calibration value. Support automatic zero point calibration of all channels by one click.
lPassword Protection: calibration is protected by password, and the password is resettable.
lRestoration: support restoration of factory calibration, support restoration of factory parameter settings.
lLanguage:Chinese/English
lAlarm type: sound and light. Higher and lower alarm point values are settable. There are three alarm status for selection: ON/OFF/MUTE.
lBattery:3.7V rechargeable lithium battery, with capacity of 1800mAh, and the working time is more than 50 hours (no combustible gas), and the charging time is less than 6 hours.
lExplosion-proof grade:ExiaⅡCT4
lProtection grade:IP66
lWorking temperature:-20℃~50℃
lWorking humidity:0-95%RH (Non-condensing, a filter dryer is needed in environment of humidity more than 90%RH)
