Product Description
The PTM-600 portable carbon disulfide gas detector is used for portable and fast detection of the concentration of carbon disulfide gas, temperature and humidity measurement (optional), and alarms for exceeding standards. The 3.5-inch high-definition color screen is used to display the concentration in real time, and imported brand gas sensors (Honeywell, Japan Fundamental, British CITY, British Alpha, British Dynament, Swiss Membrapor, etc.) are selected. The main detection principles are: electrochemistry, infrared, catalytic combustion, Thermal conductivity, PID photoion. It can detect the gas concentration in the pipeline or in the confined space and the atmospheric environment. It can detect the gas leakage or the purity of a high-concentration single gas with nitrogen or oxygen as the background gas. It can detect more than 500 types of gases.
Main Features
* Waterproof, dustproof, explosion-proof, shockproof, intrinsically safe circuit design, anti-static, anti-electromagnetic interference, passed the national standard test and CPA measuring instrument type certification
* Protection level IP66, corresponding accessories can be selected for use in high humidity and high dust occasions
* Built-in pump-suction measurement, quick response, sampling distance greater than 10 meters, special gas path design, optional related accessories can detect positive pressure or negative pressure -0.3～2kg gas, no influence on the measurement result

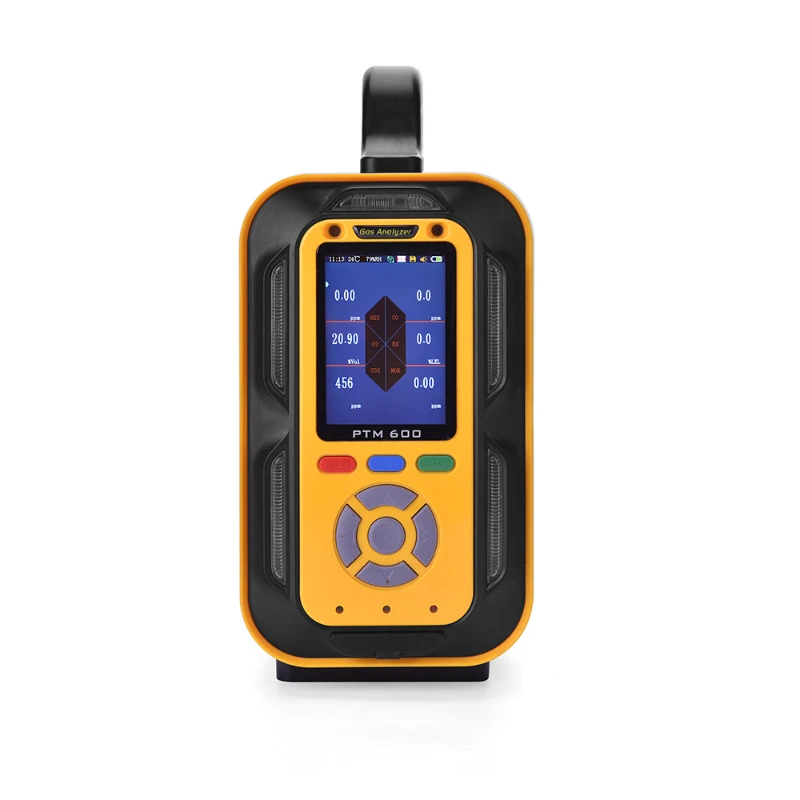

* The 3.5-inch high-definition color screen displays real-time concentration, alarm, time, temperature, humidity, storage,
communication, printing, power, charging status and other information. The menu interface uses high-definition simulation icons to display the function names of each menu
* Large capacity data storage function, larger capacity can be customized. It supports real-time storage, timed storage, or only alarm concentration data and time, supports viewing and deleting data on this machine, and also uploads data to a computer through USB and RS232 interfaces, and analyzes the data with upper computer software and stores and prints.

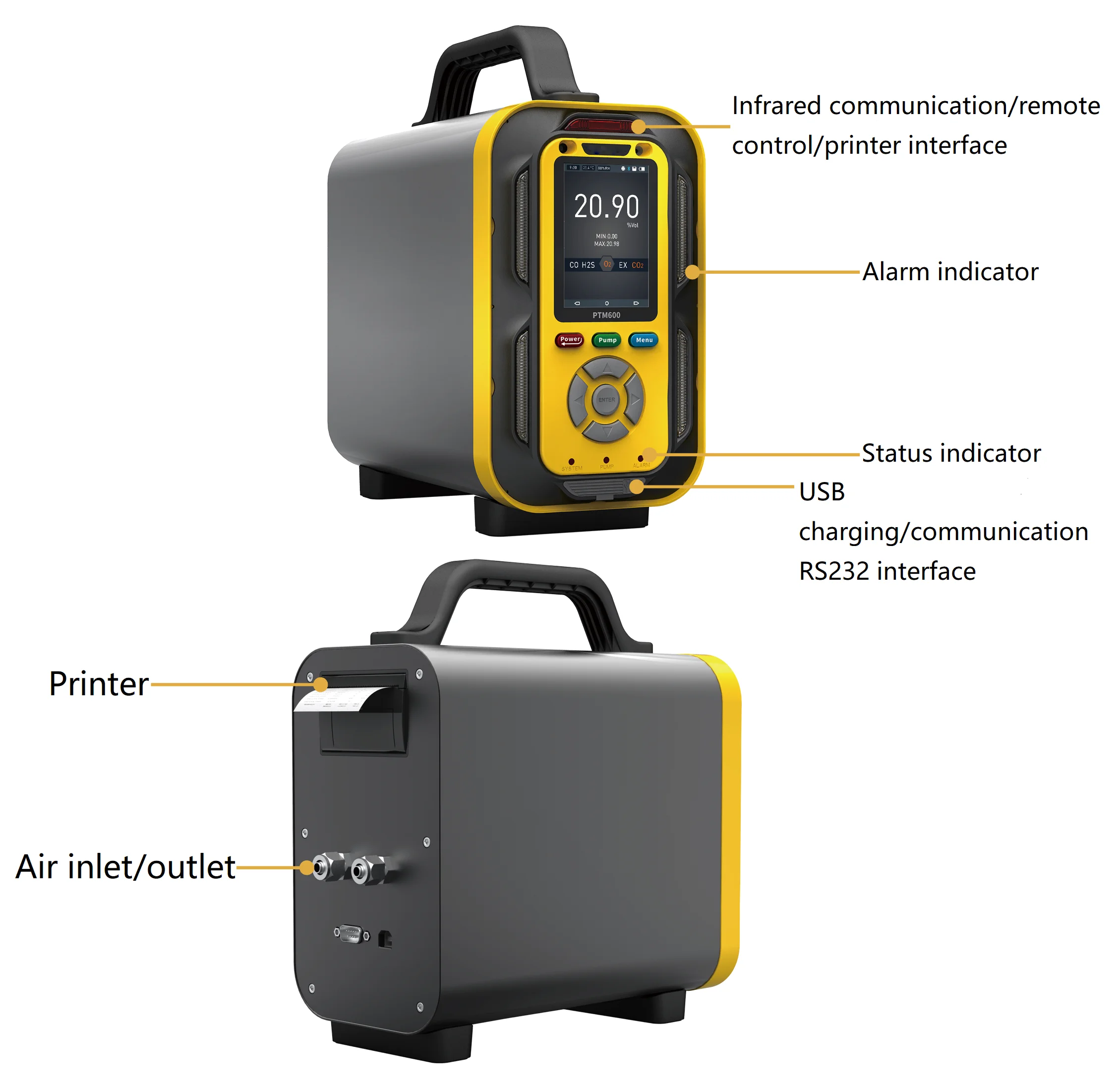

* Standard USB interface, optional: RS232/RS485, optional built-in or external wireless infrared printer, print content: company name, gas name, date and time, ambient temperature and humidity, concentration data, test results (qualified)
* USB charging port, can be charged by computer or power bank, compatible with mobile phone charger, overcharge, overdischarge, overvoltage, short circuit, overheat protection, 5-level accurate power display, support USB hot plug, the detector can be normal when charging jobs
* Using 5400mAh×2 large-capacity rechargeable polymer battery, which can work continuously for a long time
* Sound and light alarm, visual alarm, under-voltage alarm, fault alarm, multi-directional three-dimensional display of alarm status when alarming.
* The alarm value can be set, and the alarm mode can be low alarm, high alarm, interval alarm, weighted average alarm
* High-precision temperature and humidity measurement (optional), while temperature compensation is performed on the sensor. The instrument uses a temperature range of -40 to 70 degrees, and can detect gas at 1300 degrees (optional high temperature sampling cooling filter handle or high temperature and high humidity pretreatment system)
* The minimum can detect 0.001PPM, the maximum can detect 99.999%Vol, and support automatic switching of high and low ranges (please specify when ordering).
* Real-time detection or timing detection is possible (for the case where the amount of the gas to be measured is relatively small), the pump can be turned off when not detecting to extend the startup time.
* It can be selected to detect 1 to 6 kinds of gases at the same time, up to 18 kinds, and the units can be switched freely.
Normal gases do not need to enter the molecular weight, and the molecular weight of special gases needs to be automatically calculated and switched. The units are optional: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/L
* Three display modes can be switched: display the concentration of four gases at the same time, the concentration of a single channel gas and the real-time curve can be displayed in a large font cycle, the automatic cycle or manual cycle between the channels can be switched, and the maximum, minimum, and Gas name, you can view the history curve graph.
* Data recovery function, selective recovery or full recovery, automatic identification and prevention of misoperation of concentration calibration, to avoid defects caused by human factors
* Zero point automatic tracking, multi-level calibration of target points, to ensure the linearity and accuracy of measurement, and it can meet the national standards and the standards of local metrology bureaus at the same time.
* Can record calibration log, maintenance log, troubleshooting countermeasures, reminder of the expiration of sensor life, reminder of next concentration calibration time.
Technical Parameters
|
Model
|
PTM600
|
|
Detection gas
|
The carbon disulfide (CS2) gas
|
|
Measuring range
|
0~1ppm, 0~10ppm, 0~100ppm, 0~500ppm, 0~1000ppm, 0~2000ppm, 0~5000ppm, 0~10000ppm, 0~50000ppm
0~100mg/L
0~100%LEL
0~5%Vol, 0~20%Vol, 0~30%Vol, 0~50%Vol, 0~100%Vol (Optional) Please consult and confirm the measuring range before placing order. |
|
Resolution
|
0.001ppm (0~10ppm) High accuracy
0.01ppm (0~10ppm) 0.01ppm (0~100ppm) 0.1ppm (0~1000ppm) 1ppm (0~5000ppm) 0.01mg/L
0.1%LEL
0.01%Vol; 0.001%Vol
|
|
Working principle
|
Electrochemical, infrared, catalytic combustion, thermal conductivity, semiconductor, PID, etc.
Depends on measuring range, field environment and customer requirements. |
|
Sampling method
|
Built-in pump suction
|
|
Display
|
3.5" HD color screen
|
|
Accuracy
|
≤±2% F.S. (Customizable with higher accuracy)
|
|
Linearity
|
≤±2%
|
|
Repeatability
|
≤±2%
|
|
Alarm
|
Sound and light alarm
|
|
Response time
|
≤20s(T90)
|
|
Recovery time
|
≤30s
|
|
Unit switch
|
The unit can be switched freely. Normal gas does not need to input molecular weight. Special gas needs to input molecular weight
to automatically calculate and switch. Units for optional: ppm, mg/m3, Vol%, LEL%, ppb, mg/L. |
|
Power supply
|
High-capacity rechargeable polymer battery 3.7VDC, 5400mAh×2
|
|
Working environment
|
Temperature: -40℃～+70℃
Humidity: ≤10～95%RH (no condensation) |
|
Data storage
|
Large-capacity data storage, supports expansion.
|
|
Communication interface
|
USB (charging and communication), with charging protection function, support USB hot plug
|
|
Interface language
|
English
|
|
Explosion-proof
|
Intrinsically safe ExiaⅡCT4Ga Explosion-proof certificate No.:CnEx16.3091
|
|
Protection
|
IP66
|
|
Dimensions
|
255×210×125mm(L×H×W) Customized: 420×210×125mm(L×H×W)
|
|
Weight
|
3.2Kg
|
|
Standard accessories
|

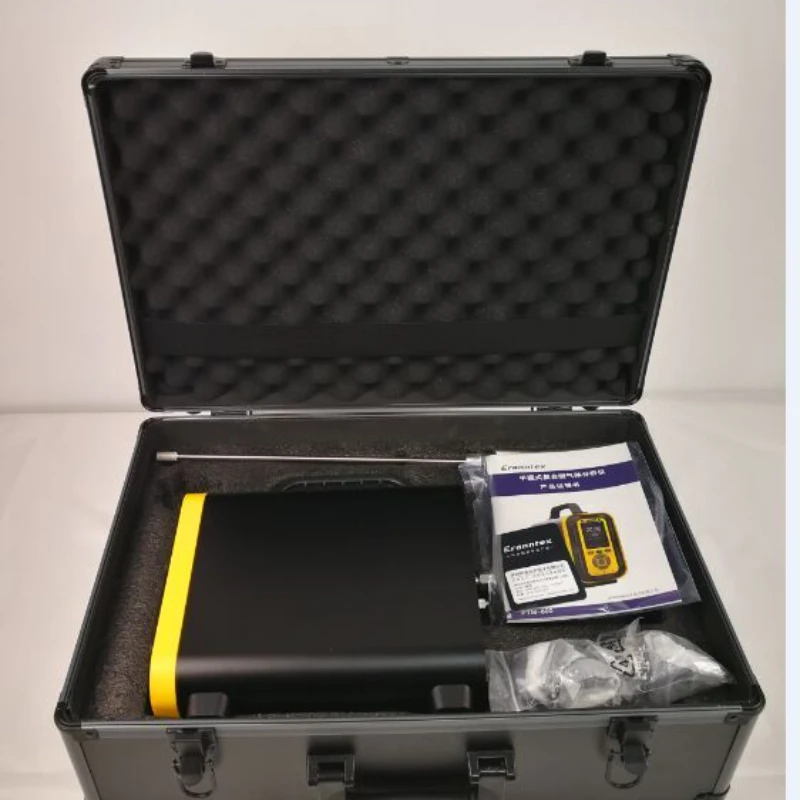

Manual, certificate, warranty card, USB charger (including data cable), high-grade aluminum alloy instrument case, back clip,

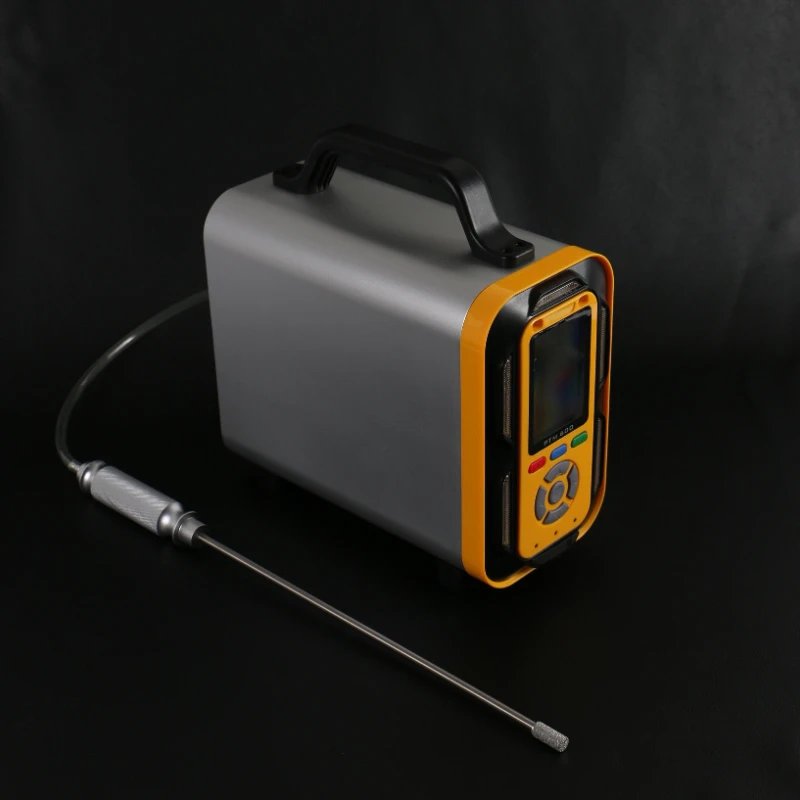

humidity and dust filter, 0.4-meter stainless steel sampling handle |
|
Oprional accessories
|
Filter tip: filter water vapor and dust, change regularly according to the site environment
Imported high temperature sampling handle: 400°C, 800°C, 1300°C high temperature sampling handle (to detect high temperature sample gas) |
|
Optional functions
|
RS485 signal output, integrated built-in printer, external wireless Bluetooth printer, one-key SOS call, wind speed detection,
pressure difference detection Environmental temperature and humidity detection: temperature -40℃~+70℃, accuracy 0.5℃; humidity 0～100%RH, accuracy 3%RH Wireless data transmission: RoLa module, Bluetooth module, WiFi module, 443M module, Zig-Bee module (free computer software/cloud platform/mobile APP remote monitoring data) Storage function: optional 16G or larger capacity SD card storage |
|
Application
|
Petroleum, chemical, pharmaceutical, environmental protection, flue gas analysis, air treatment, etc.
|
