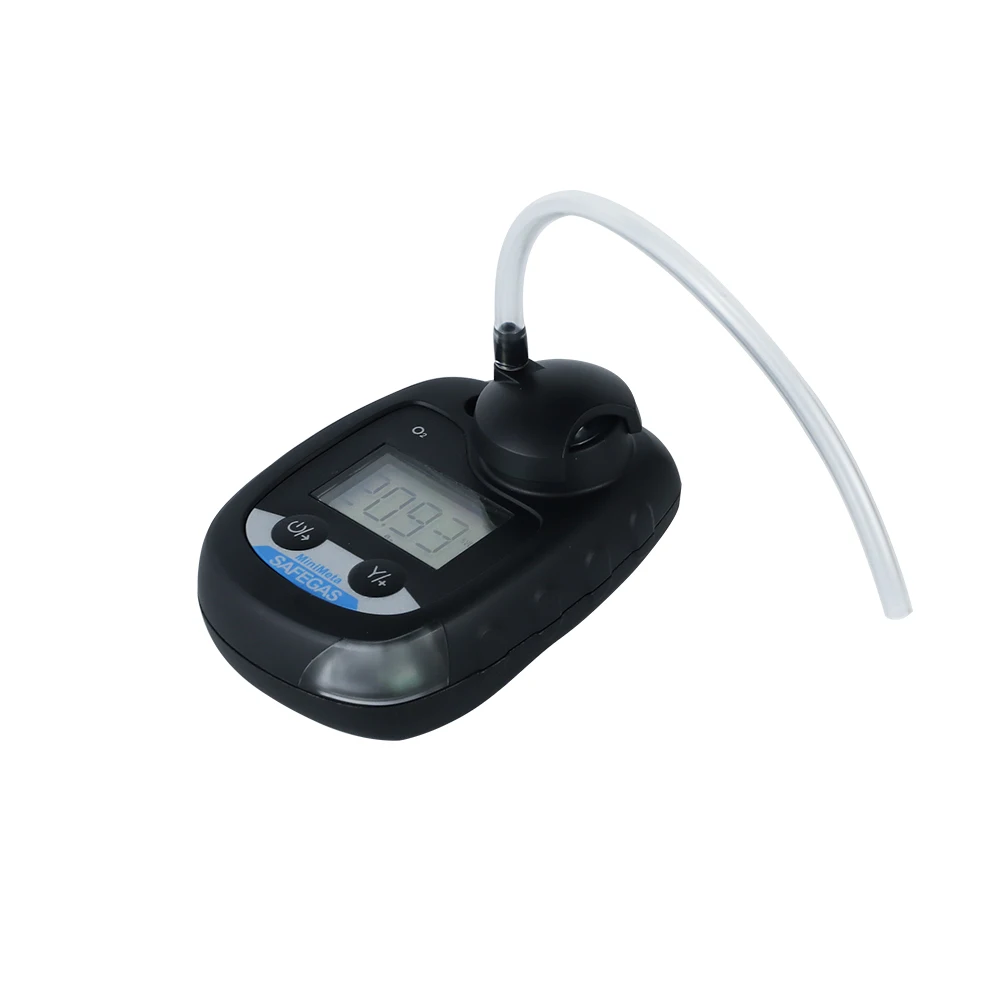

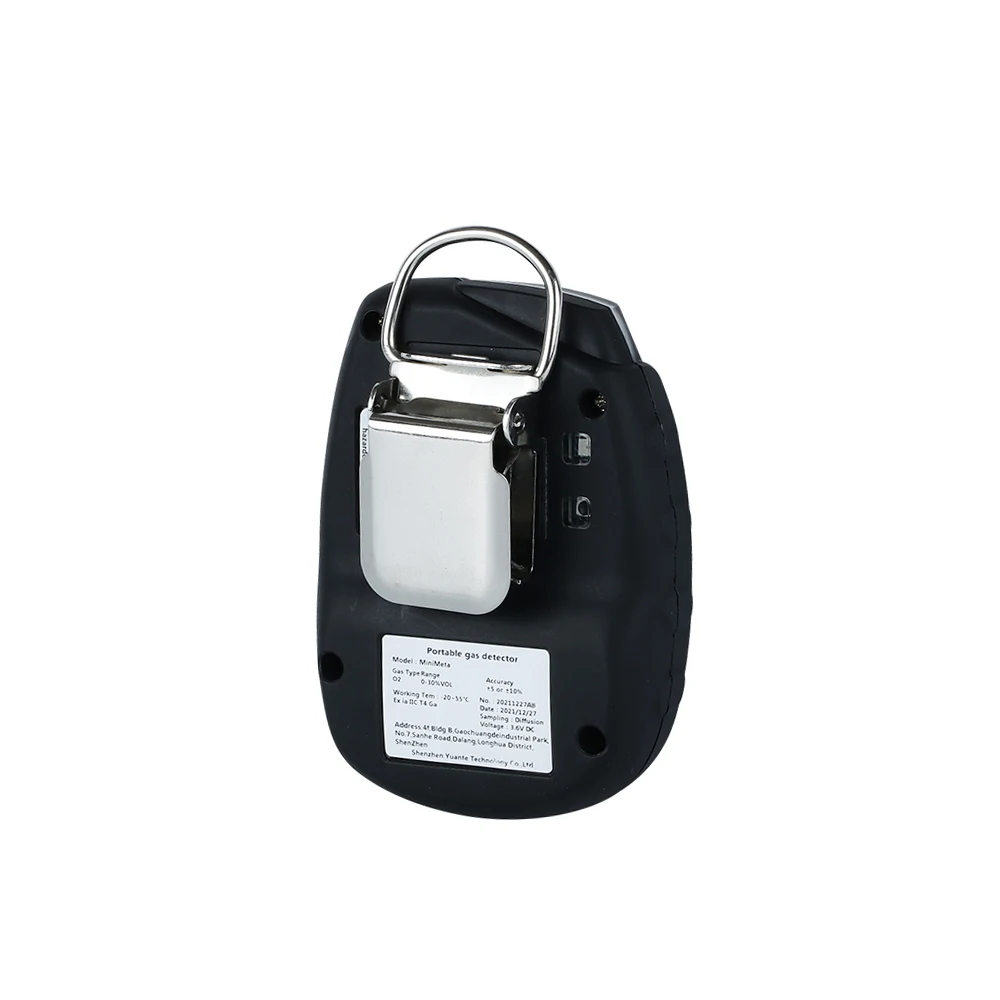

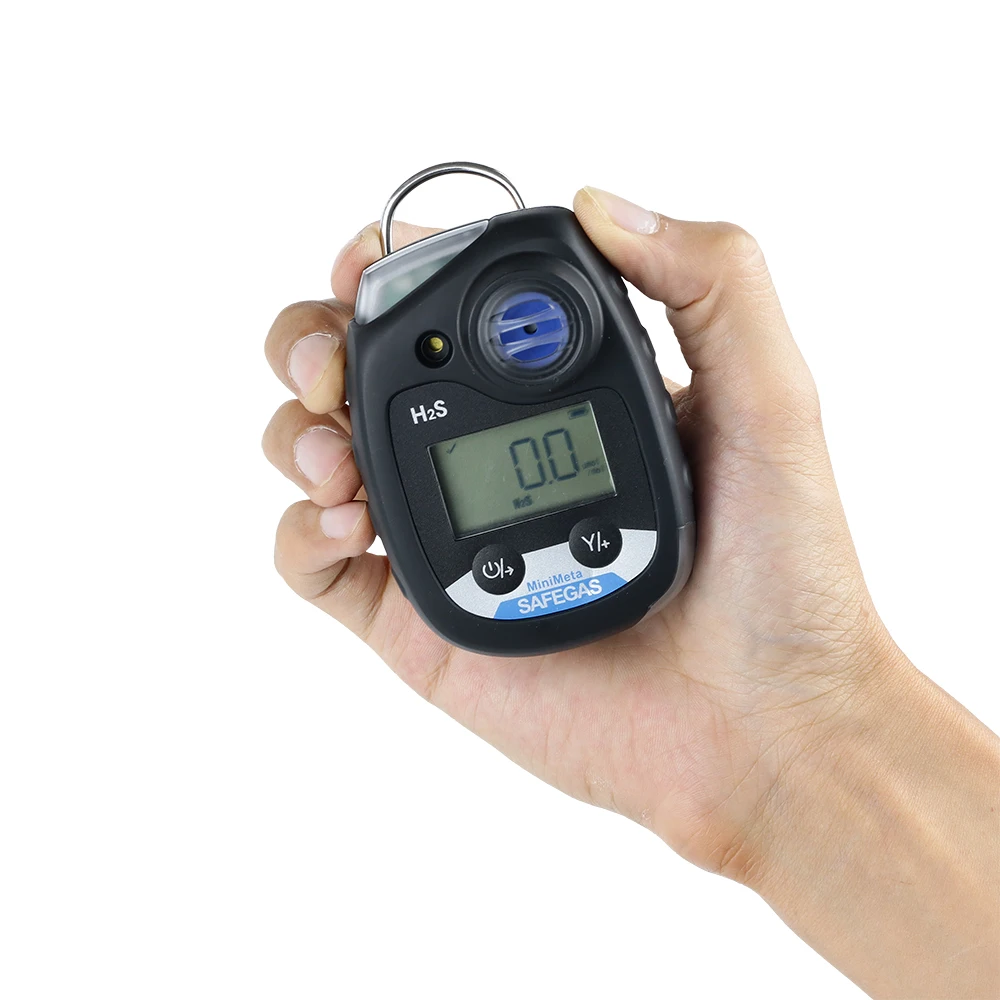

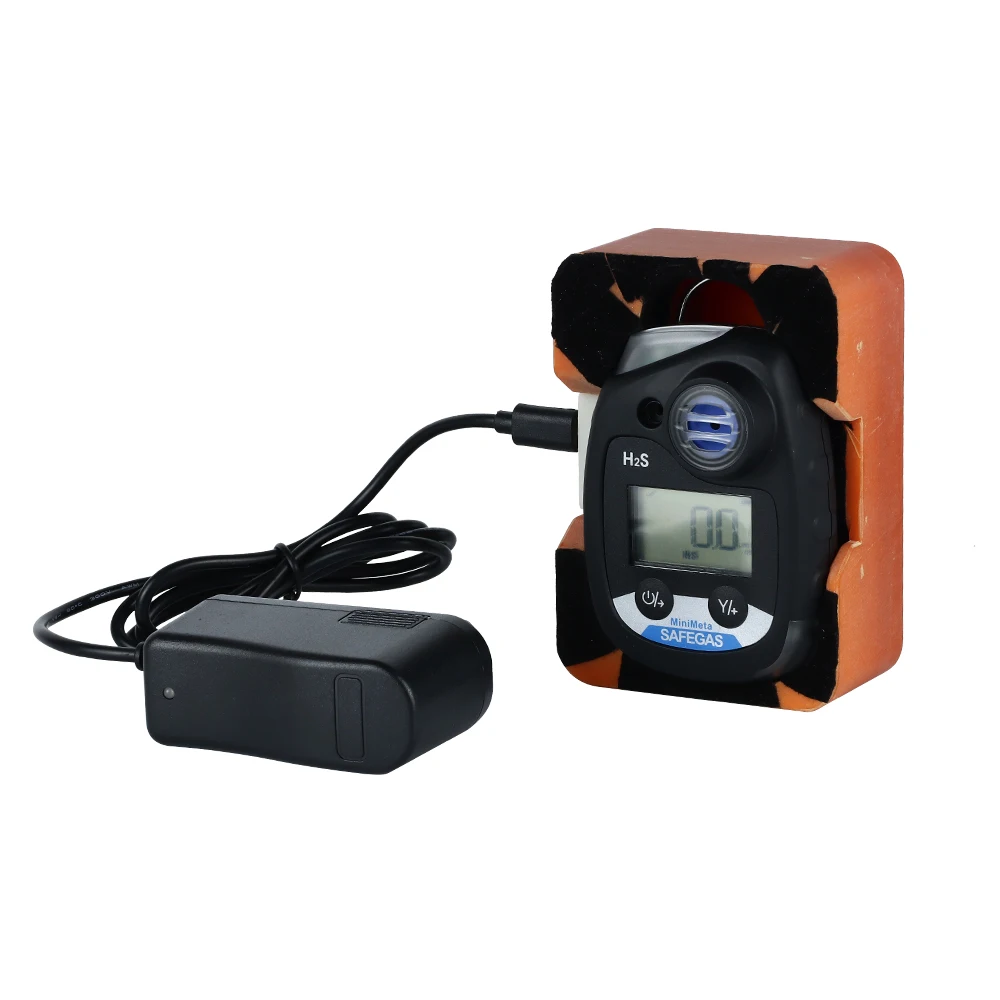

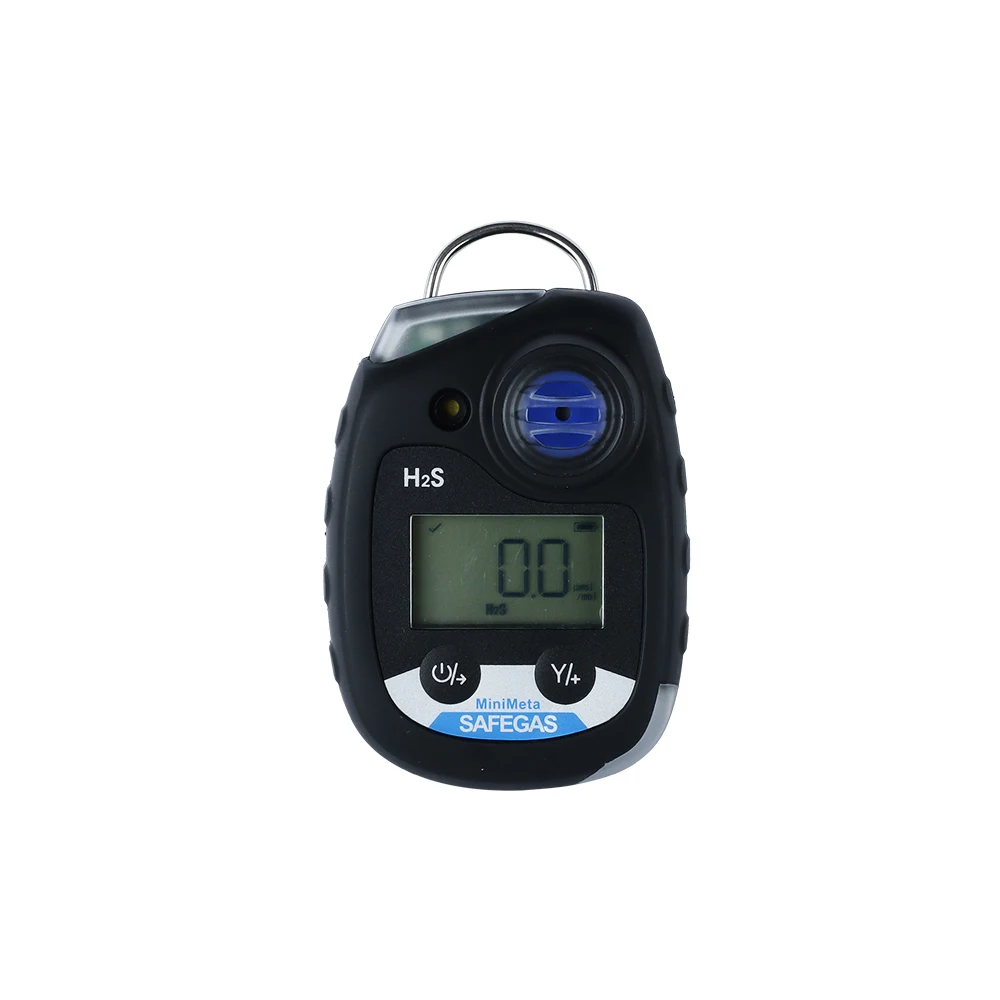

Detector Personal De Gas H2S Portable Gas Detector IECEX ATEX IP68 Coal Mining Gas Detector
Product overview
MiniMeta is a maintenance-free single gas detector, the most reliable, user-friendly, cost-effective detection solution for worker safety and operational compliance. It offers up to 2 years of protection-with no need for calibration, sensor replacement, battery replacement or battery charging. It’s IECEx, ATEX, CNEX explosion proof certificated and meet the highest standards of quality and reliability to ensure workers’safety and compliance. MiniMeta is small, sturdy, ergonomic, and can be attached to a work coat or cap with alligator clips for easy carrying. MiniMeta can detect toxic and harmful gases like: carbon monoxide, hydrogen sulfide, oxygen and sulfur dioxide, other toxic gases can be customized, which is widely used in petroleum, petrochemical, metallurgy, chemical and other industries for gas detection and personnel protection.
Product Advantages
● Low power consumption and long standby time, the standby time is up to 2 years, no need to replace the battery.
● Maintenance free: just turn on the device and it will run continuously -no calibration, no sensor replacement, n battery charging.
● With self-test function, which can improve safety b automatic self-test.
● Ultra-high buzzer alarm sound, 2 high-bright red LED up and down alarm, sound, light and vibration triple alarm to remind workers.
● High point alarm, low point alarm, TWA, STEL multiple alarm types, the user can adjus the alarm set point as needed throughout the life cycle.
● Automatic logging 10 sets of recent alarm events for easy and accurate record keeping.
● Protection class IP68, splash-proof, dust-proof, explosion-proof, shock-proof, intrinsically safe circuit design.
● Compact and lightweight design with two-button operation without extensive training.
● Affordable, with low cost of ownership.
● Small size, light weight, easy to carry.
● The shell is made of high-strength materials, designed for a variety of harsh environments, comfortable and durable.

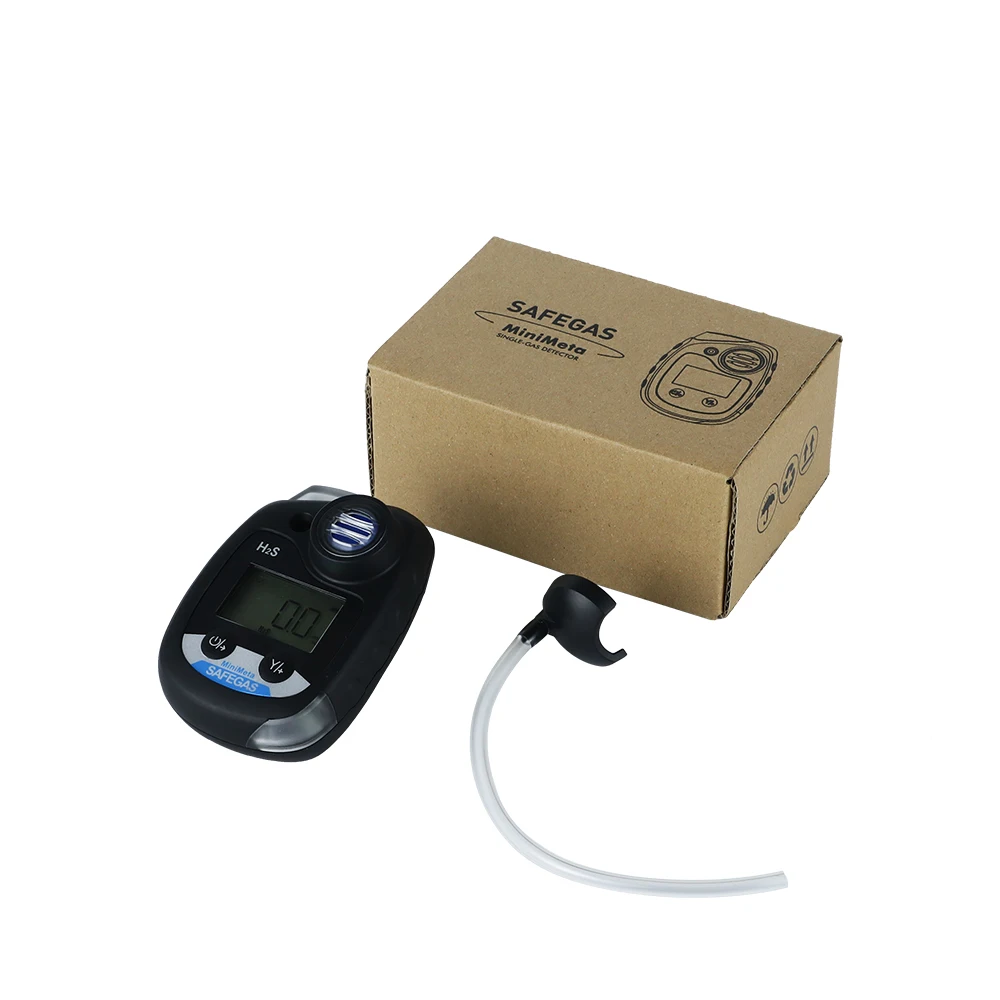

Accessories & Configuration list
● 1 calibration cap 1 copy of user manual
● 1 quality certificate
● 1 Calibration certification
Technical Specifications
|
Detected gas:
|

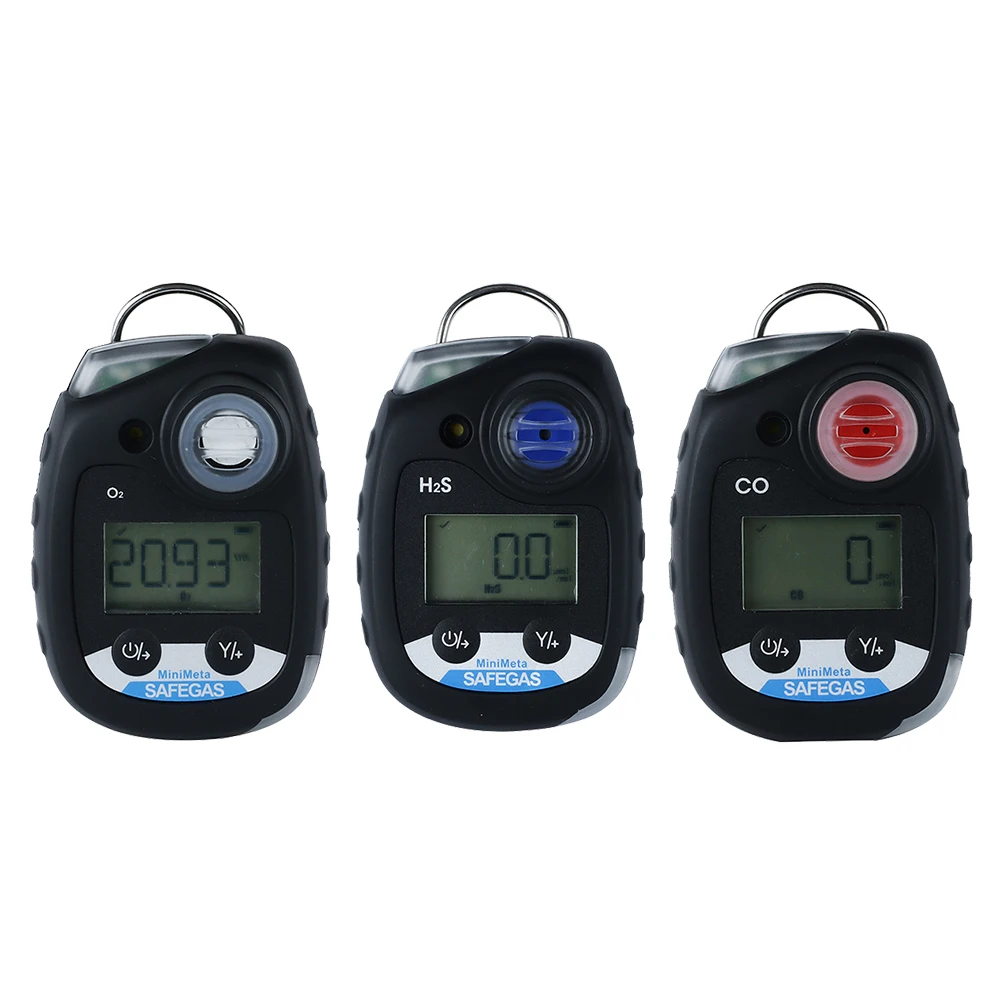

H2S, CO, O2, SO2, NH3, etc different single gases. According to customers’ requirements.
|
|
Detection principle:
|
Electrochemical, according to gas, sensor and measure range.
|
|
Measure range:
|
Carbon Monoxide(CO): 0-500ppm/1000ppm/2000ppm, Hydrogen Sulfide(H2S): 0-100ppm/200ppm, Oxygen(O2): 0-25%VOL/30%VOL, according to customer’s requirements.
|
|
Resolution:
|
Carbon Monoxide(CO): 1ppm, Hydrogen Sulfide(H2S): 0.01ppm, Oxygen(O2): 0.01%VOL, according to sensor and measure ranges.
|
|
Accuracy:
|
≤±3%F.S. (higher precision can be customized)
|
|
Response time:
|
≤30 seconds (T90)
|
|
Power Model:
|
3.6V dry battery (non-removable and rechargeable)
|
|
Display:
|
Gas name, concentration unit, measured value, electricity
|
|
Concentration unit:
|
ppm, mg/m3, %VOL, etc
|
|
Alarm mode:
|
Sound, light, vibration alarm, high and low alarm values can be set by yourself.
|
|
Explosion-proof grade:
|
ExiaIICT4Ga
|
|
Protection Class:
|
IP68
|
|
Executive standards:
|
GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC
60079-11-2 |
|
Working temperature:
|
-20℃～55℃
|
|
Working humidity:
|
0-95%RH (non-condensing
|
|
Working air pressure:
|
86~106kpa
|
|
Language:
|
English
|
|
Dimensions:
|
90*60*33mm (length*width*thickness)
|
|
Weight:
|
125g
|
