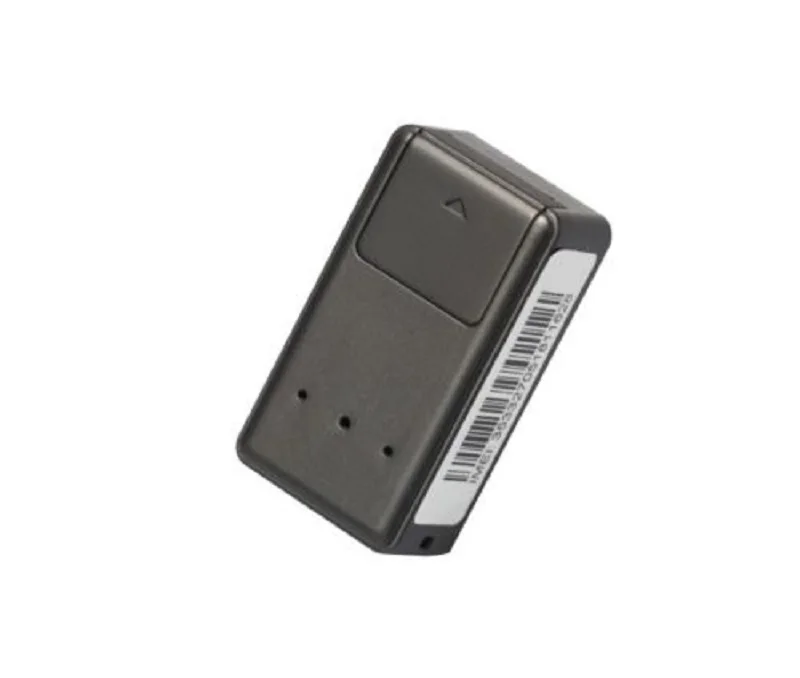

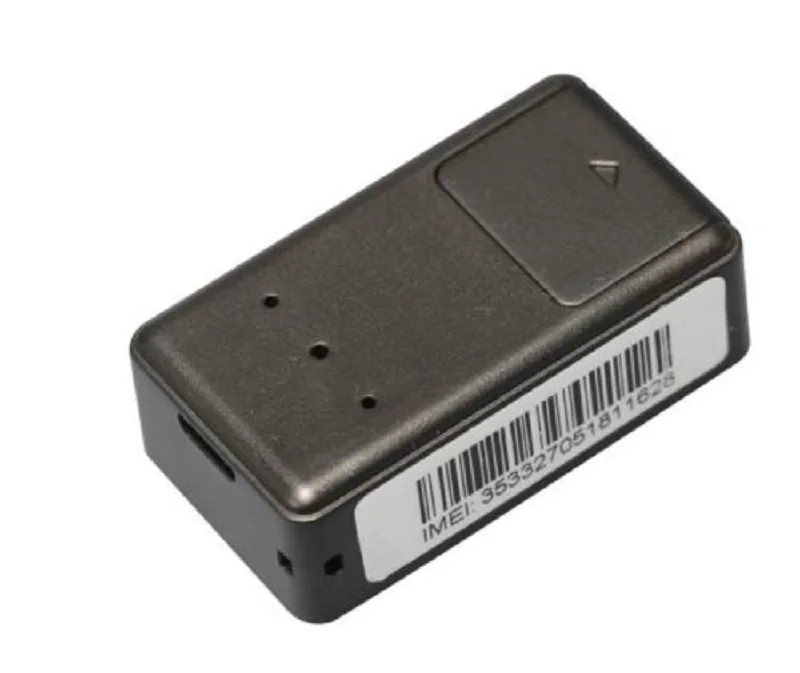

N11 Real Time Listen GSM/GPRS/GPS Tracker Acoustic Alarm 15 Days Standby time Locator Positioning Tracker GPS tracker
Product Description

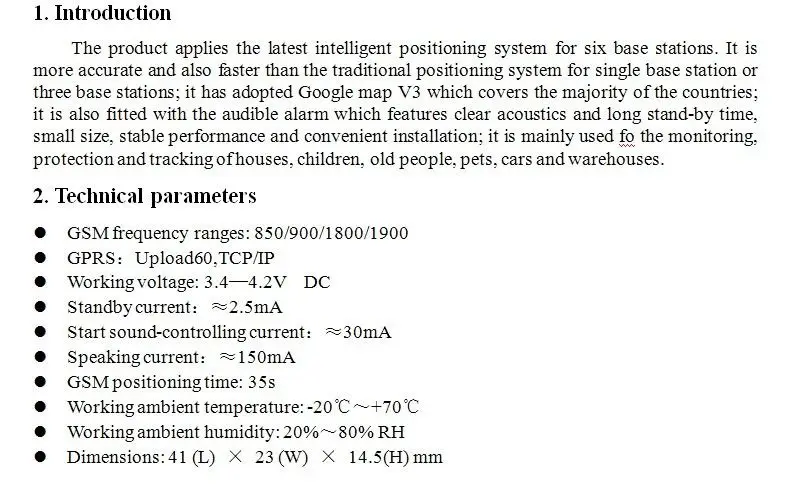

Introduction:
The product applies the latest intelligent positioning system for six base stations. It is more accurate and also faster than the traditional positioning system for single base station or three base stations; it has adopted Google map V3 which covers the majority of the countries; it is also fitted with the audible alarm which features clear acoustics and long stand-by time, small size, stable performance and convenient installation; it is mainly used for the monitoring, protection and tracking of houses, children, old people, pets, cars and warehouses.
Technical parameters:
GSM frequency ranges: 850/900/1800/1900
GPRS:Upload60, TCP/IP
Working voltage: 3.4-4.2V DC
Standby current:2.5mA
Start sound-controlling current:30mA
Speaking current:150mA
GSM positioning time: 35s
Working ambient temperature: -20 dEgree+70degree
Working ambient humidity: 20%~80%RH

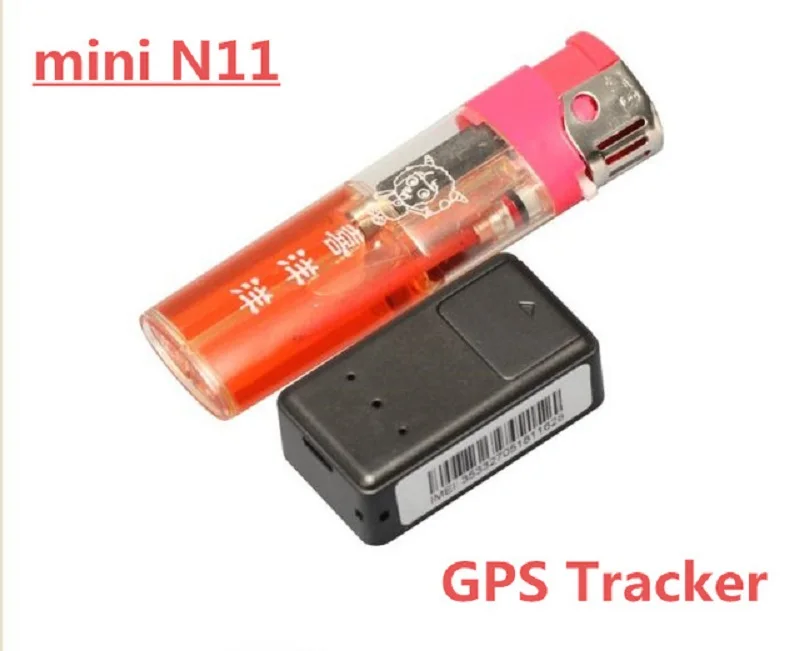

Dimensions: 41 (L)* 23 (W)* 14.5(H) mm

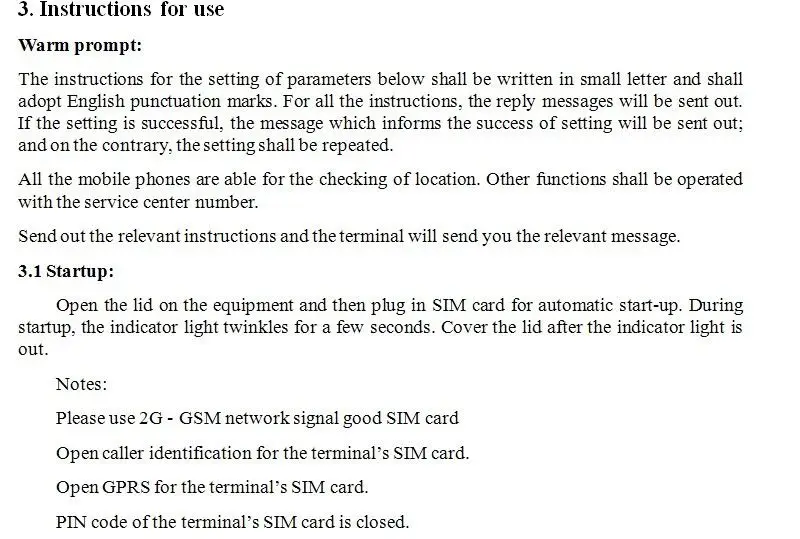

Warm prompt:
The instructions for the setting of parameters below shall be written in small letter and shall adopt English punctuation marks. For all the instructions, the reply messages will be sent out. If the setting is successful, the message which informs the success of setting will be sent out; and on the contrary, the setting shall be repeated.
All the mobile phones are able for the checking of location. Other functions shall be operated with the service center number.
Send out the relevant instructions and the terminal will send you the relevant message.

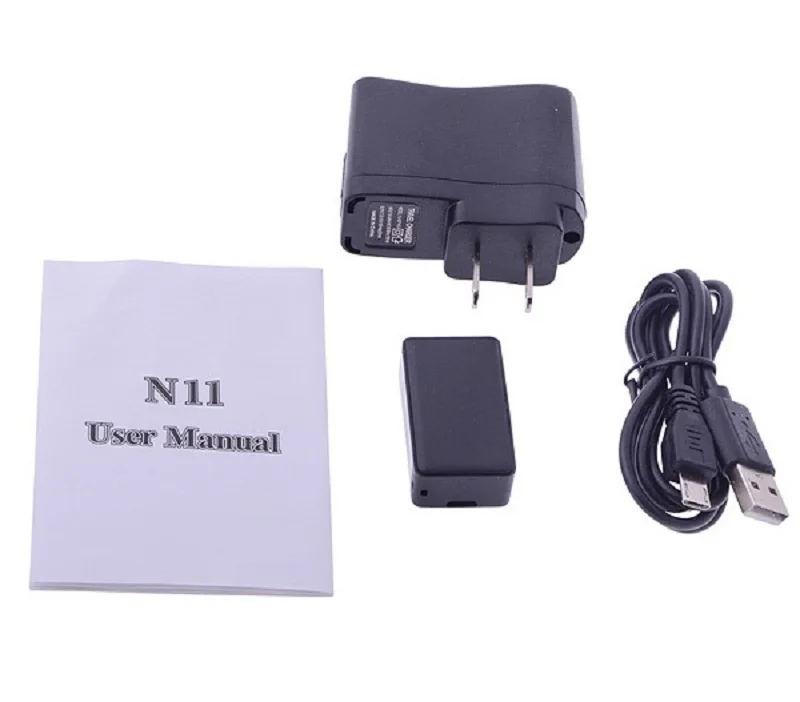

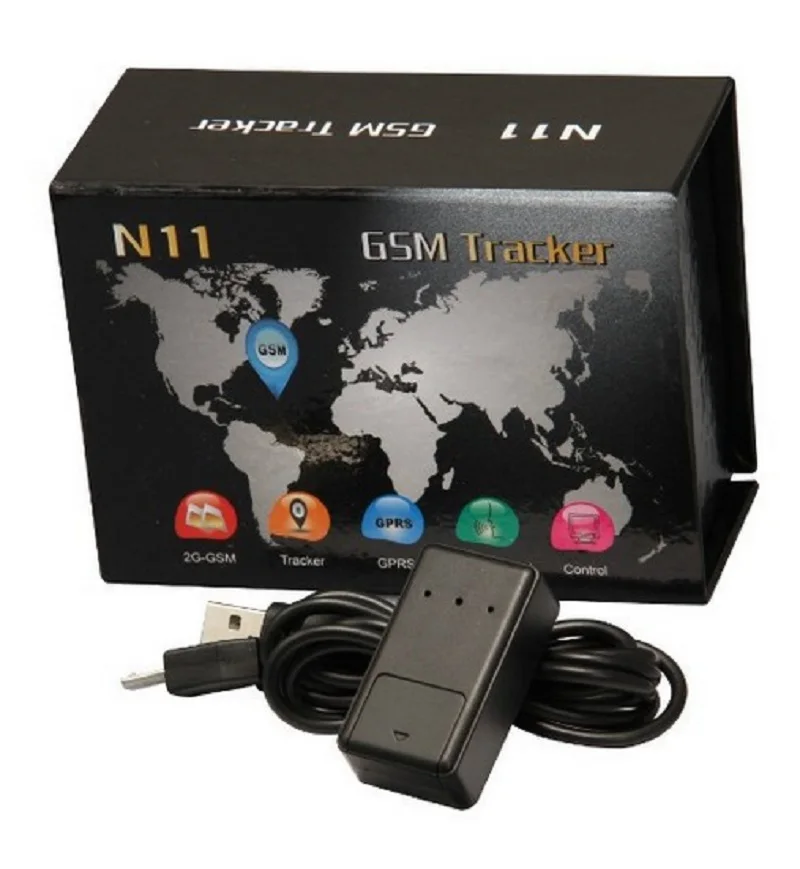

Package Includes:
1* N11 GSM system tracker device
1*USB cable
3.1 boot:

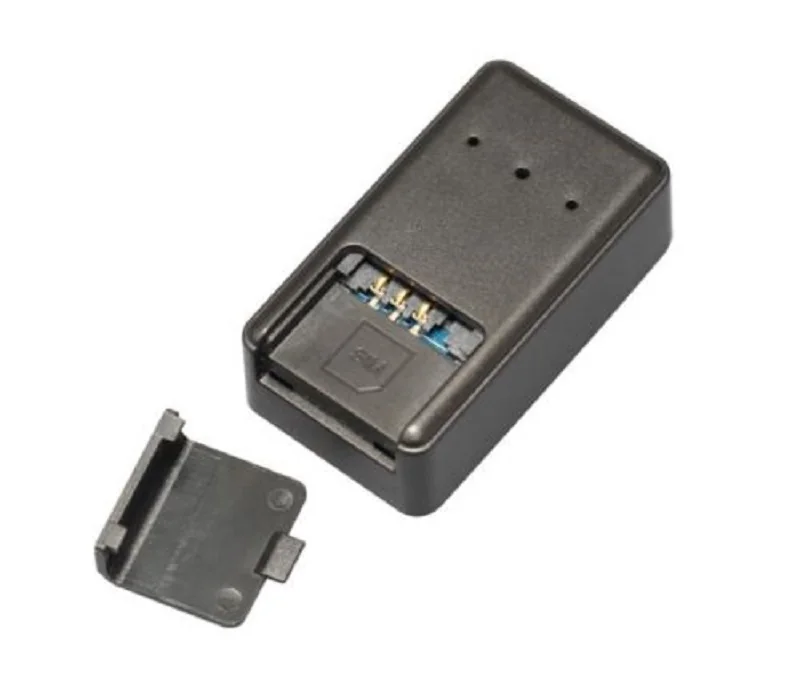

Open the small lid on the device and insert the SIM card into the deck automatically. Power, the light flash a few seconds, stay out of light, covered with a small lid to use.
Note:
Please use 2G – GSM network signal better SIM card (such as: mobile)
Terminal SIM card needs to be opened Caller ID
The terminal SIM needs to enable GPRS function
The terminal SIM card PIN is turned off

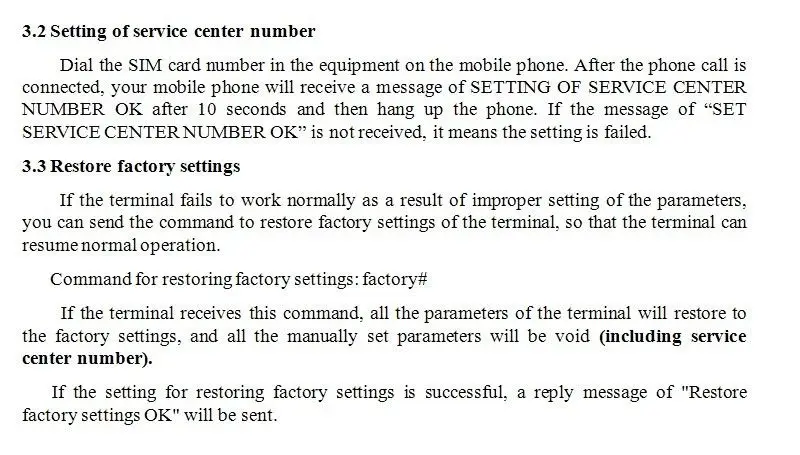

3.2, set the center service number
Use the mobile phone to dial the SIM card number in the device, dial the connection, and hear the sound around for about 10 seconds, your mobile phone will receive the "center number set successfully" message ring, then you can hang up the phone. If you do not receive the "center number set successfully" message, the service center number setting failed.
3.3, restore the factory settings
When the setting parameters of the terminal are not set correctly, the terminal will work abnormally. You can send a message to reset the terminal parameters to the factory default settings, and try to make the terminal work again.
The factory reset instruction is: factory #
When the terminal receives the instruction. The terminal will be set back to the factory default settings parameters, all the previous manual setting parameters disappear (including the service center number will disappear)
If the terminal restores the factory settings successfully, the message "Restore factory settings successfully" is returned

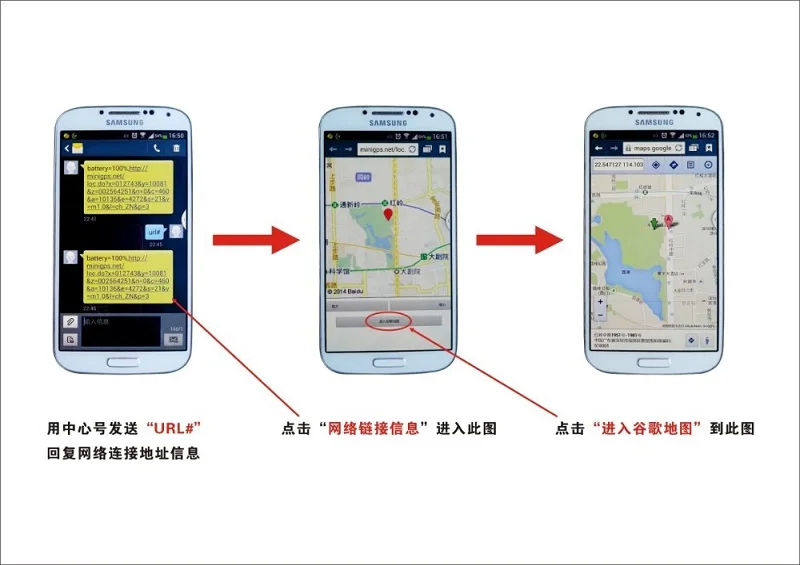

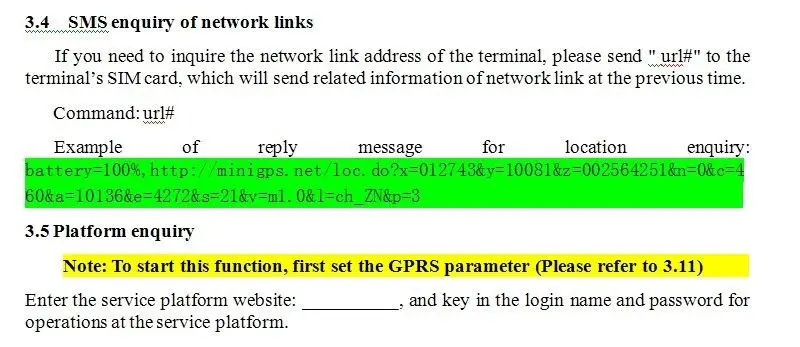

3.4, location network link SMS query
When it is needed to query the location network link information of the terminal device, it may send "url #" to the SIM card of the terminal device, and the terminal will reply the location information of the network link last located
Instruction: url #

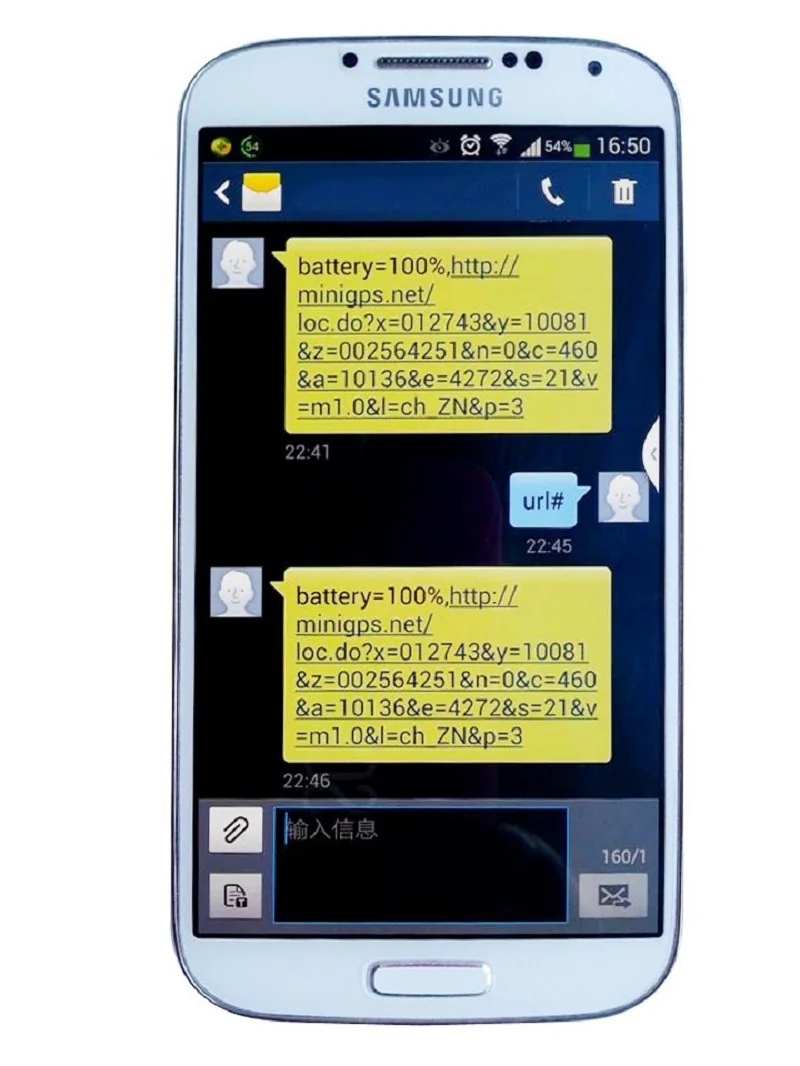

Location Inquiry SMS reply message example:
battery = 100%, http: //minigps.net/loc.do? x = 012743 & y = 10081 & z = 0025642
51 & n = 0 & c = 460 & a = 10136 & e = 4272 & s = 21 & v = m1.0 & l = ch_ZN & p = 3

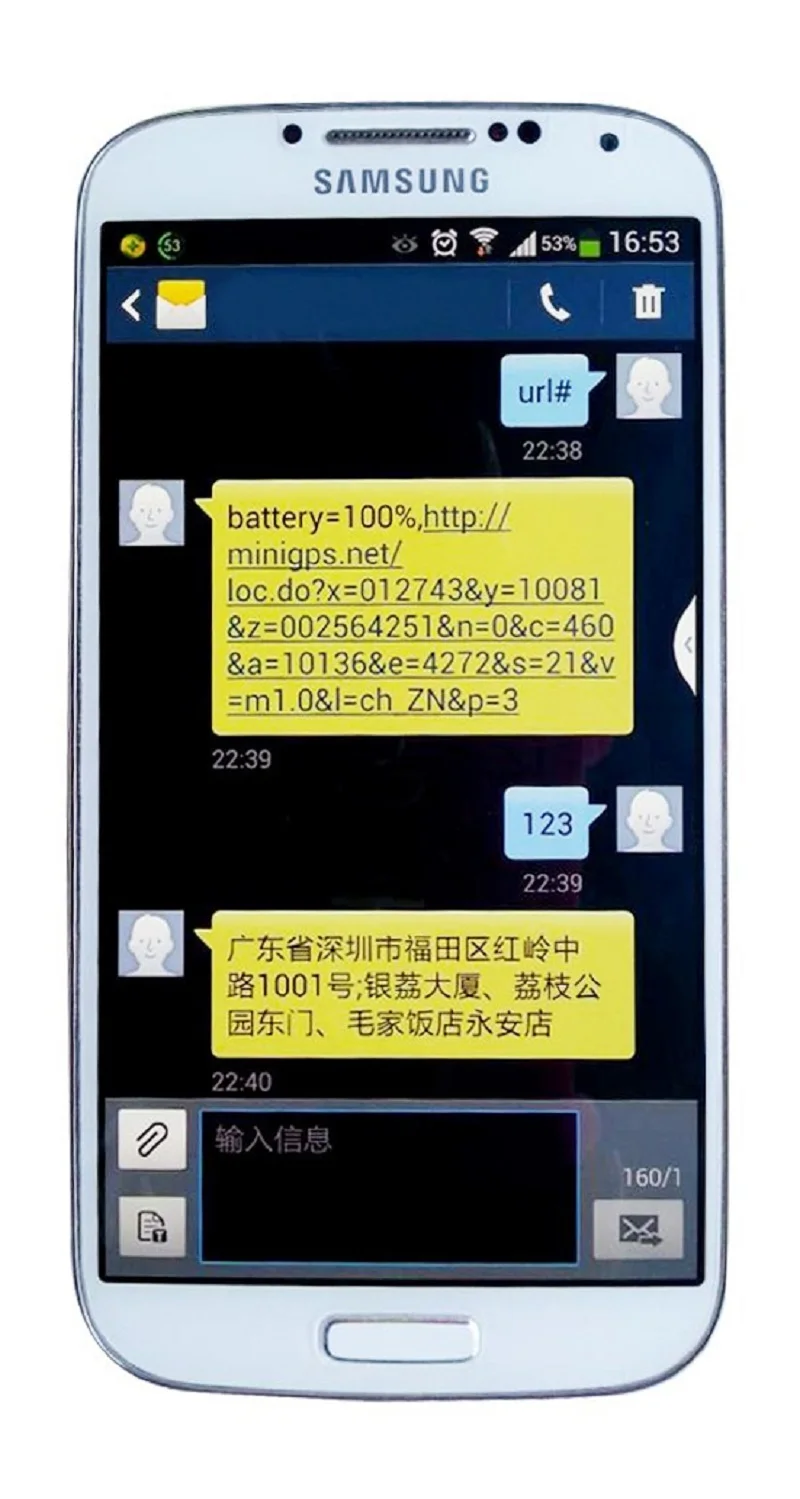

3.5, SMS Chinese address query
When you need to check the Chinese address information of the terminal device, you can send "123" to the SIM card of the terminal device. The terminal will reply the location information of a Chinese address. If the terminal has not searched for the location information, please reply nothing. Move your location, send instructions again to get the Chinese location information
Order: 123
Chinese address query message reply message example:
Futian District, Shenzhen City, Guangdong Province

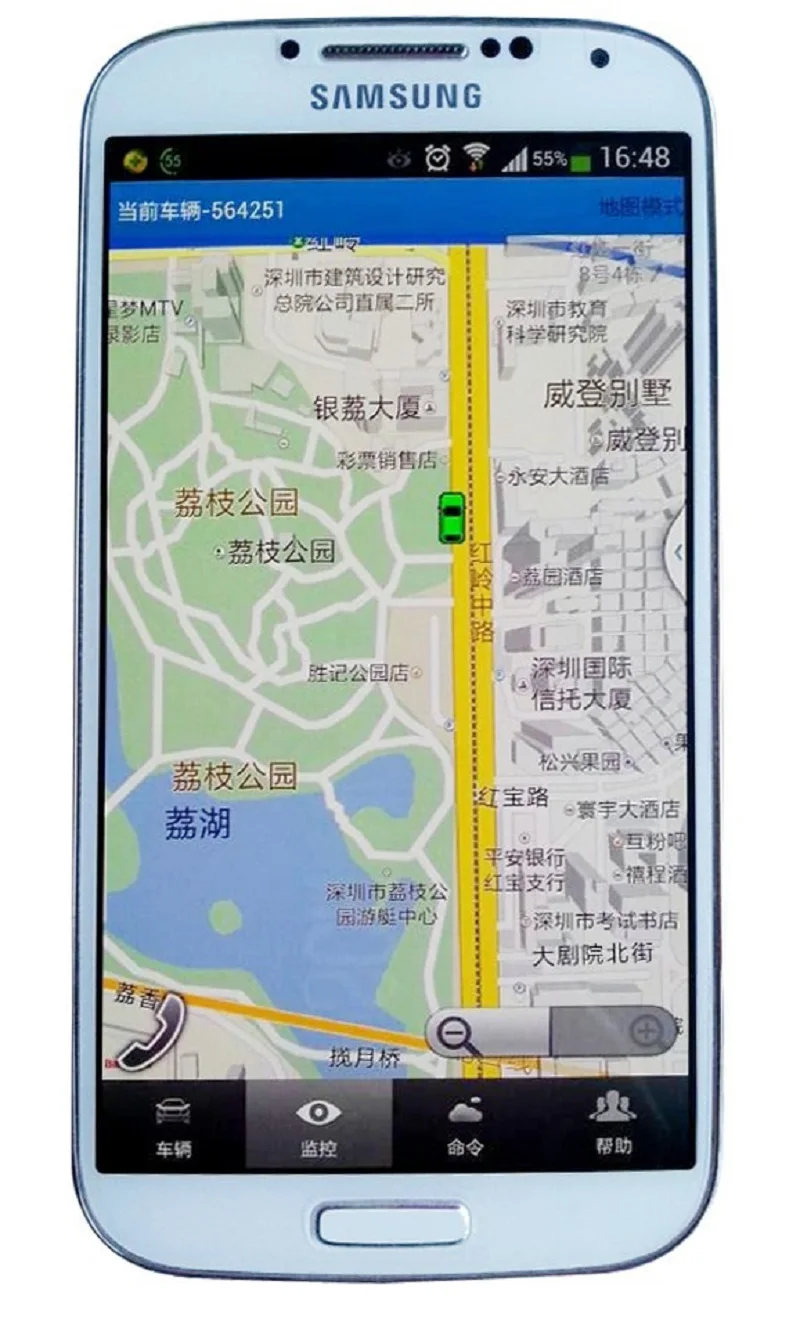

3.6 platform query
Note: This feature MUST set the GPRS parameters first (see 3.12)
Open the service platform URL: ______________________, type the user name and password to operate on the service platform
3.7 Automatic continuous positioning (this feature default off state)
3.7.1, send SMS "fix time s times n #" to the device, continuous positioning is set successfully.
Example: fix060s005n #
This example shows that the device sends the latitude and longitude information every 60 seconds, sending a total of 5 times. (S: seconds, m: minutes) This directive must be set with 3 digits and the maximum value is 600
3.7.2 unlimited positioning
Send SMS "fix080m *** n #" to the device, set an unlimited number of consecutive success.
Example: fix080m *** n #
This example shows that the device sends latitude and longitude information every 80 minutes without limit
3.7.3 Cancel automatic continuous positioning
Send SMS "nofix #" to your device. If automatic continuous positioning cancellation is successful, the device will reply "Cancel automatic continuous positioning" message
Example: send "nofix #" to the device, cancel automatic continuous positioning
3.8, voice-activated remote switch
3.8.1 Send "1111" SMS content to the SIM card number of the device by using the mobile phone, after the message is sent successfully, the voice control function is about to turn on
Voice on command: 1111
If the voice control is enabled successfully, the message "Voice control enabled" is returned
3.8.2 send "0000" SMS content to the SIM card number of the device by the mobile phone, after the successful sending of the SMS, the voice control function is going to be closed
Voice close command: 0000
If the voice control is successfully set, the message "Voice control closed successfully" is returned
3.9, voice sensitivity settings
When the device's voice sensitivity is not satisfied for you, you can send text messages to adjust the device's voice sensitivity.
Instruction format: level, sensitive value #
Sensitivity value setting range: 30 – 100, the greater the sensitivity value of the device more sensitive to the voice sensitivity
Example: level, 83 #
The example shows that the device's acoustical sensitivity value is set to 83
If the voice sensitivity setting is successful, then restore the "voice sensitivity setting is successful! Sensitivity of 83" message
3.10, terminal restart function
When the terminal works abnormally, for example, the terminal is not located, you can send a text message to the terminal. So that the terminal performs a remote restart so that the terminal resumes normal operation.
Terminal restart setting instructions: reset #
When the terminal receives the instruction, restart the terminal immediately
If the terminal reboots successfully, reply "reboot successfully" message
3.11, set GPRS transmission positioning data interval time
The terminal default GPRS transmission positioning data interval of 60S, that is, every 60 seconds to the platform server
Upload a positioning data. To set GPRS transmission positioning data interval, you can edit send GPRS timing setting
Set instructions
Instruction format: upload, timing time # (seconds)
Time setting range: 0 or 60-1800 seconds, "0" means not to upload data
Example: upload, 60 #
The example shows that the interval of GPRS transmission positioning data is 60 seconds, that is, every 60 seconds to the background server
Pass a positioning data
If the setting is successful, then reply "Upload Interval Time Set Success! Interval Time" 60 "Information
3.12, set GPRS parameters
3.12.1 Set APN
Different countries have different GSM communication operators APN are different, you need to know your APN SIM card, please consult with the local communications operators
Instruction format: apn, network name #
Example: apn, cmwap #
In the example, cmwap represents APN of China Mobile operator
If APN setting is successful, reply "APN setting successful" message
3.12.2 Set GPRS login user name and password
In most countries, GPRS login user name and password can be omitted, you can skip this step setting.
For countries that want to use a user name and password, you need to make the following settings.
Command format apn, network name, user, user name, pd, password #
Example: apn, cmwap, user, yidong, pd, 123 #
Example "yidong" on behalf of the user name, "123" on behalf of the password
If the GPRS login user name and password is set successfully, then reply "GPRS user name and password is set successfully"
information
3.13, language and time settings
The terminal provides the display in both Chinese and English. The time in different regions is set according to the time zone.
Instruction format: lang, x, zone, n #
x is a linguistic choice 0 is English, 1 is Chinese, n is a time zone option, East 8 is 8, West 3 is -3
Example: lang, 1, zone, 8 #
In the example, "1" means "Chinese" and "8" means East 8th China time. If your country's time zone is negative, send "lang, 0, zone, -8" like this.
3.14, query parameters
When you need to check the parameter setting status of the terminal device, you can write "param #" message and send it to the SIM card number of the terminal device, and the terminal will reply the corresponding parameter query content.
Example: param #
Information Return Content Example:
imei: 386201209006236
apn: cmwap
IP: usa.gpsjm.com: 8500
UPLOAD: 8
CENTER: 12345678901
LEVEL: 80
LANG: EN
ZONE: E8
3.15, check the software version number
Check the software version of the current device
Directive: verno #
Information Return Content Example: N11-V1.0 2013-11-8 18:00
