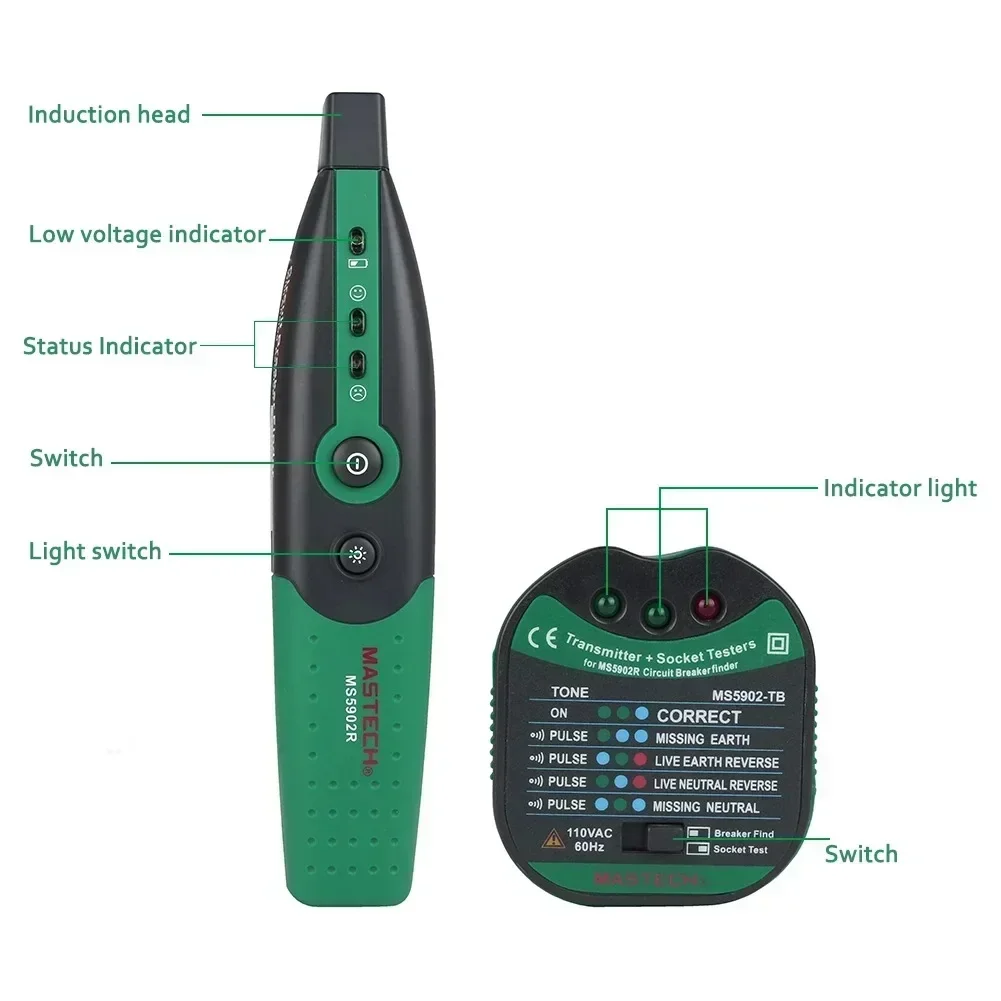

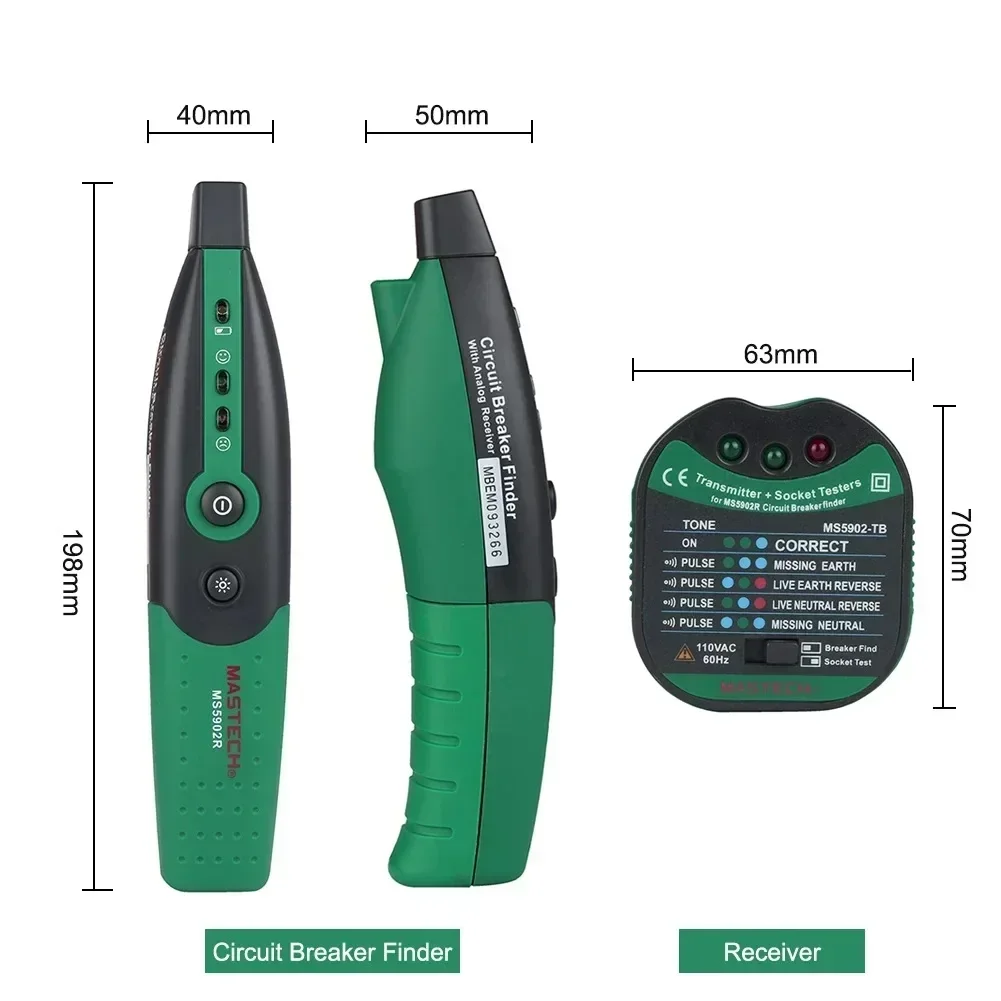

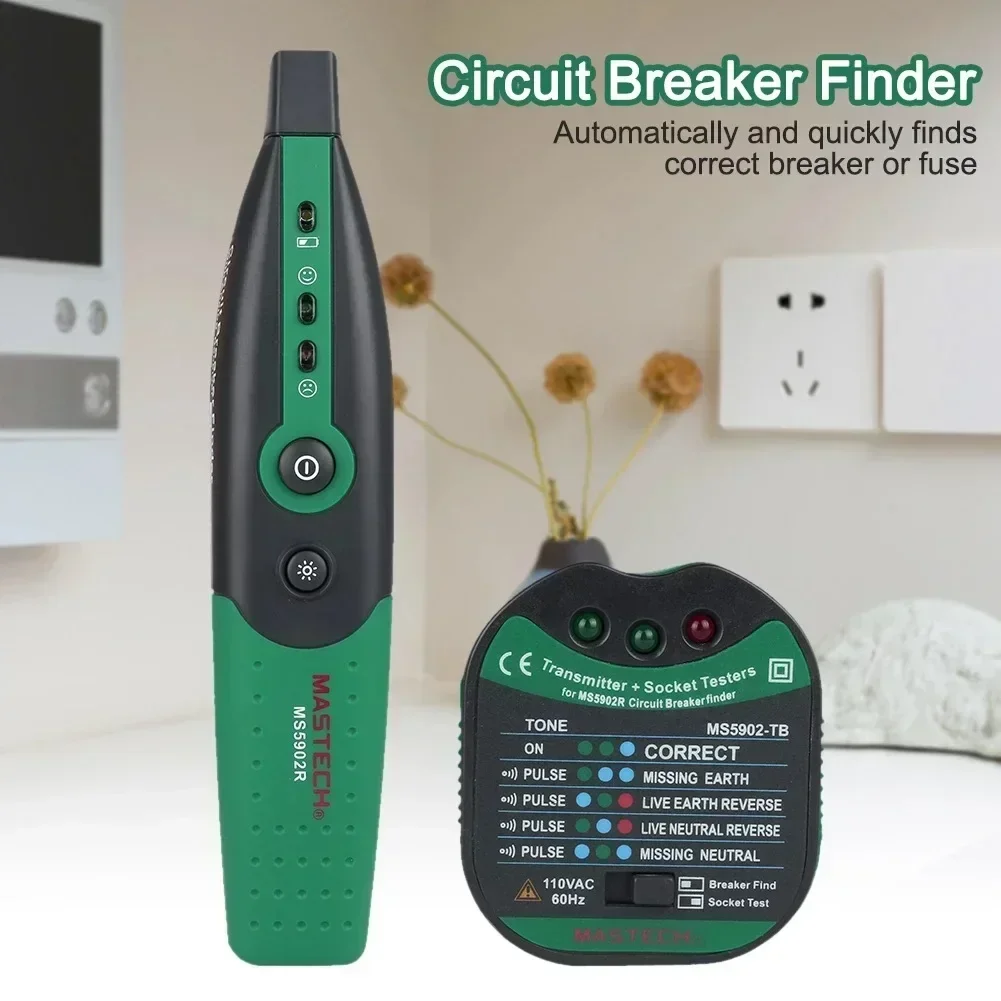

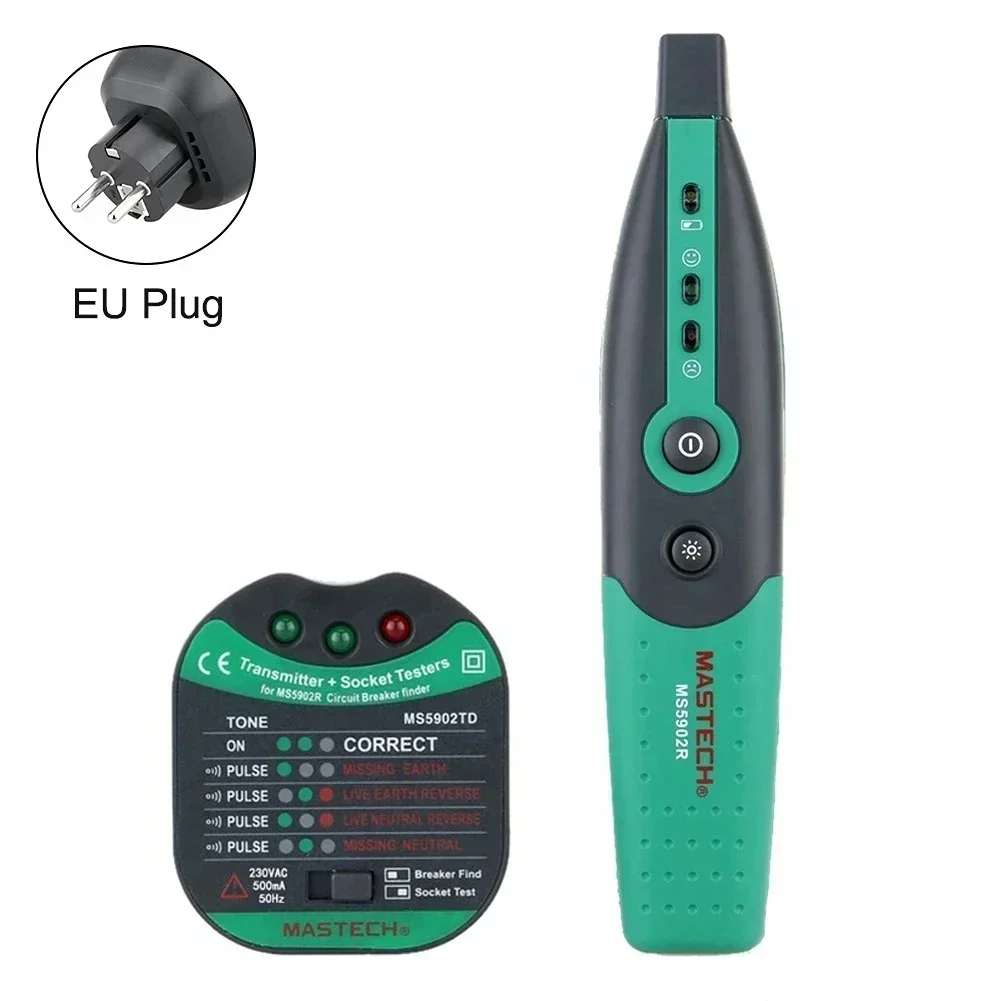

MS5902 Circuit breaker detector socket circuit testing and searching function for electricians

Operation:  Locating a Circuit Breaker or Fuse

•  Keep the pillar at left on the MS5902-T Plug the MS5902-T into the receptacle.if there is a candescent light fixture,please install a socket adapter before make sure the switch is OFF.then plug the MS5902-T into the socket adapter,turn the switch on at one time.(Socket adapter need purchase additional)

• Go to the circuit breaker panel boxTurn the MS5902-R on,the red LED is light.

• Place the chapiter of the MS5902-R directly onto the circuit breaker or fuse.

• Slide the chapiter of the MS5902-R down each breaker along both sides of  the panel .Then the MS5902-R will beep frequently as it denote the relative signal strength.

• Move the MS5902-R down each breaker once more. On the third pass, the MS5902-R will beep ,the red LED will quench and the green LED will light only at the circuit Breaker powering the MS5902-T.

• Push the breaker off and check that the LED on the MS5902-T in the outlet is off to confirm you have found the correct breaker or buse.

Test Socket   Keep the pillar at right on the MS5902-T.
Please contradistinguish nameplate on the MS5902-T.

 Maintenance:

• Keep clean with a dry cloth.

• When the yellow LED is light on the MS5902-R, please unscrew and remove cover, insert new 9V battery so as to the MS5902-R is well-balanced.
