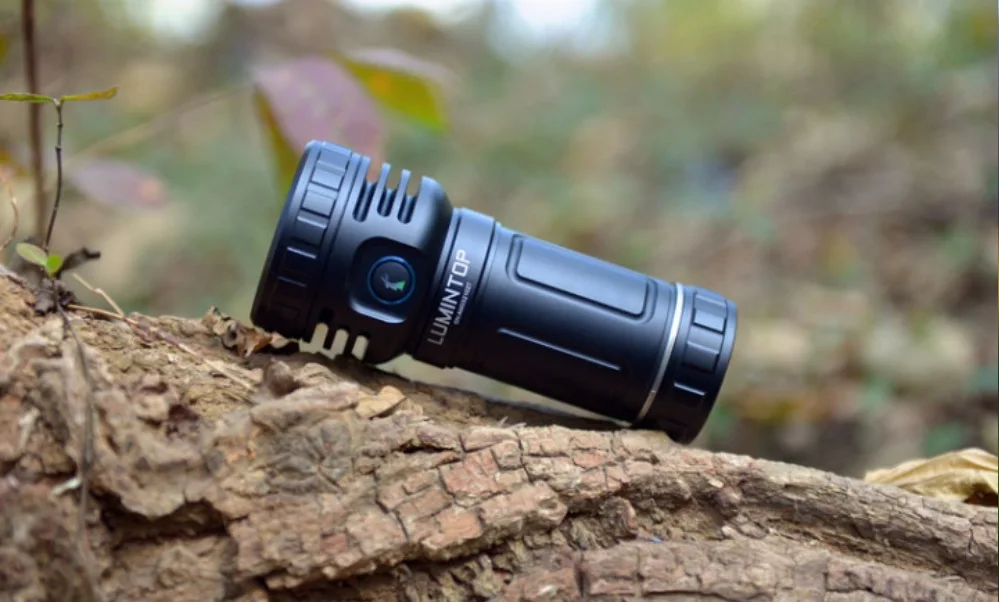

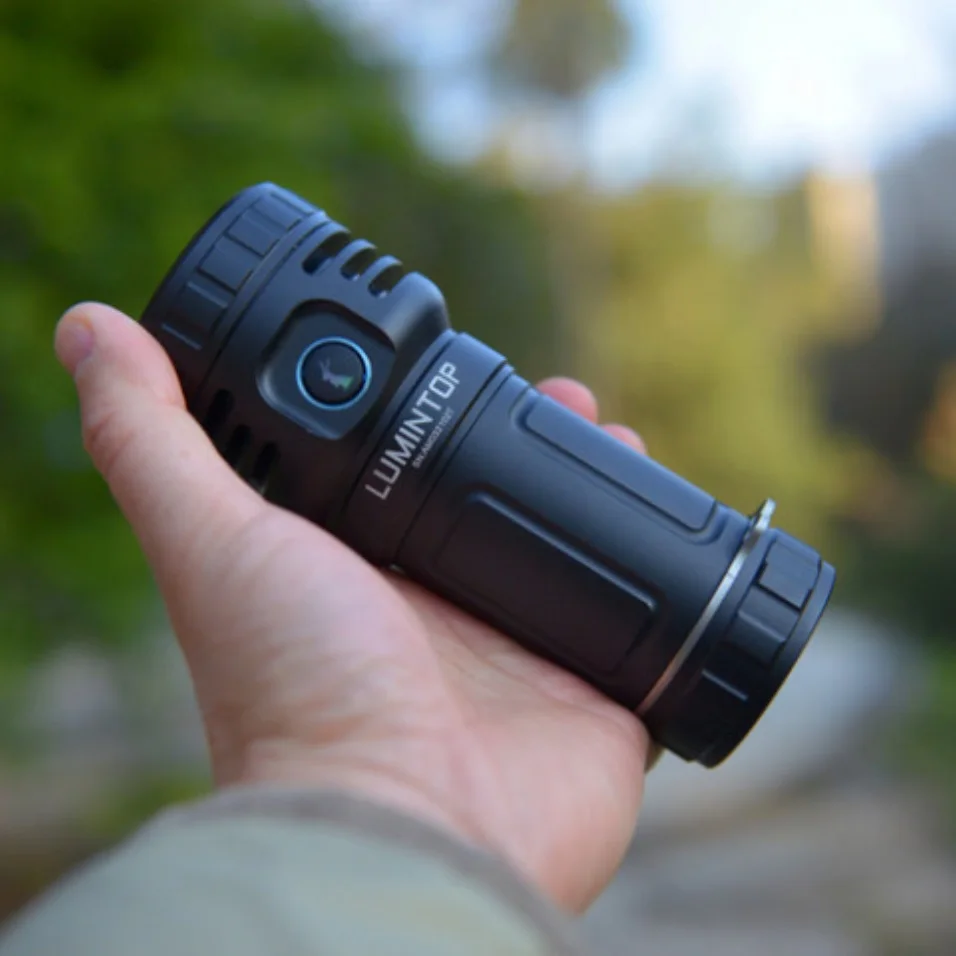

Lumintop Thor PRO Rechargeable Powerful LEP Flashlight Power Bank 12600LM Laser Torch Light by 18650 Battery for Camping Hiking

Features

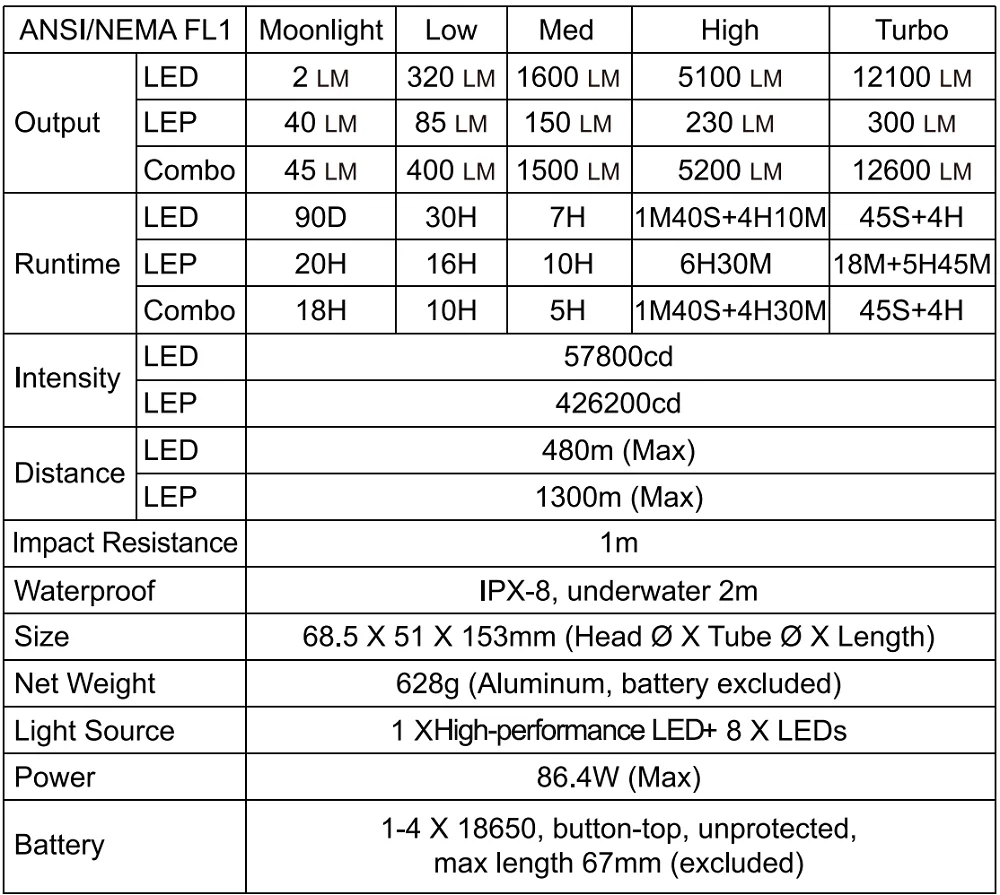

Notice: The above appropriate parameters are lab-tested by using four 18650 Li-ion batteries, it may vary due to the difference in batteries types and environments. The runtime on High and Turbo are accumulated due to the over-heat protection setting.

Operation Instruction

General mode: Low, Med, High (with memory)

Hidden mode: Moonlight, Turbo
1 ON/ OFF:Fully press the switch. The auxiliary rear lightis ON when the electricity is connected (defaulted).
2 Output change: Press and hold the switch from ON will cycle the outputs through Low-Med-High, release the switch, press and hold again will cycle the outputs through High-Med-Low. Rapid High: Two clicks from OFF.
4 Moonlight: Press and hold the switch for 1 second from OFF. Press and hold the switch again will cycle modes from the general mode.
5 Turbo:Two quick clicks from ON, another two clicks will return to the previous mode. Two quick clicks the switch and hold the second from OFF will momentarily activate the Turbo until the button is released.

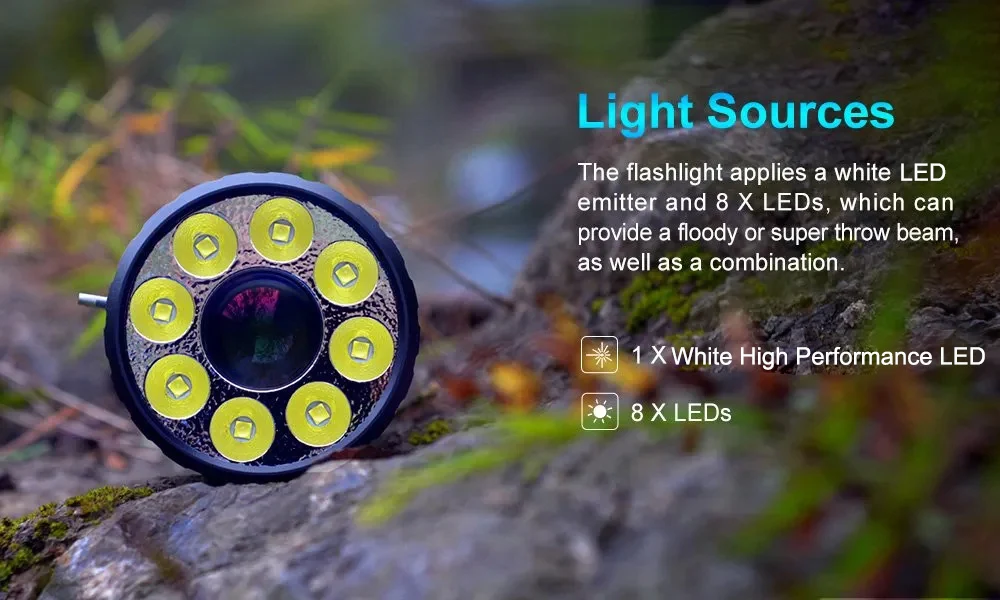

6 Light source shifting: Three dicks from ON/ OFF will cycle the light source through LED-LEP-Combo.
7 Battery check: Four quick clicks the switch from OFF.

                             Blink 3 times then another 7 times,3.7V

                             Blink 3 times then another 8 times,3.8V

                             And soon.
8 Lock-out/ Unlock: 5quick clicks from OFF. Momentary Lowis available when pressing the switch.
9 Switch back-lit light ON/ OFF: Continuously 7 clicks from OFF.
Green: LED light           Blue: LEP light               Combo: LED+LEP

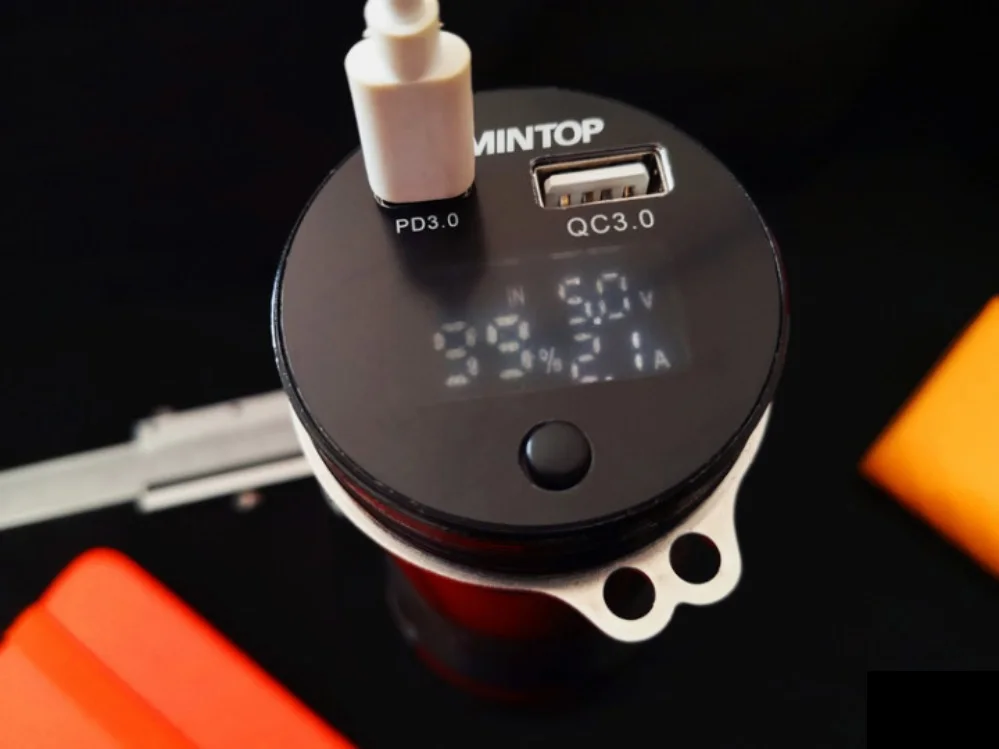

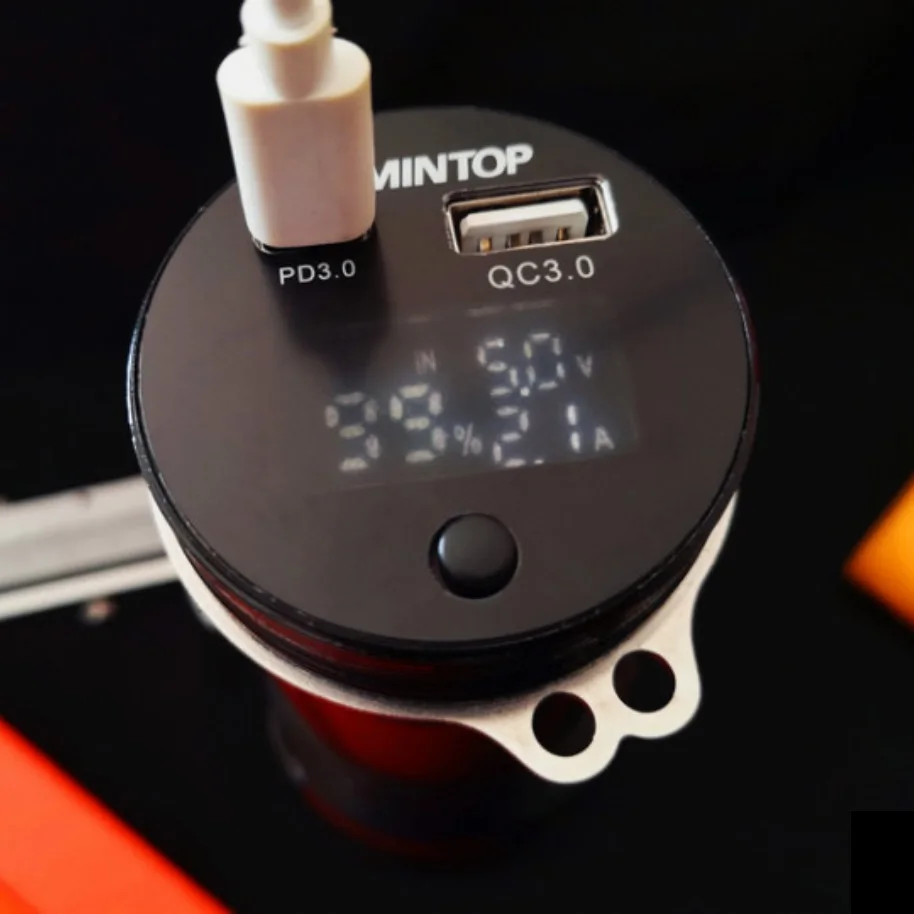

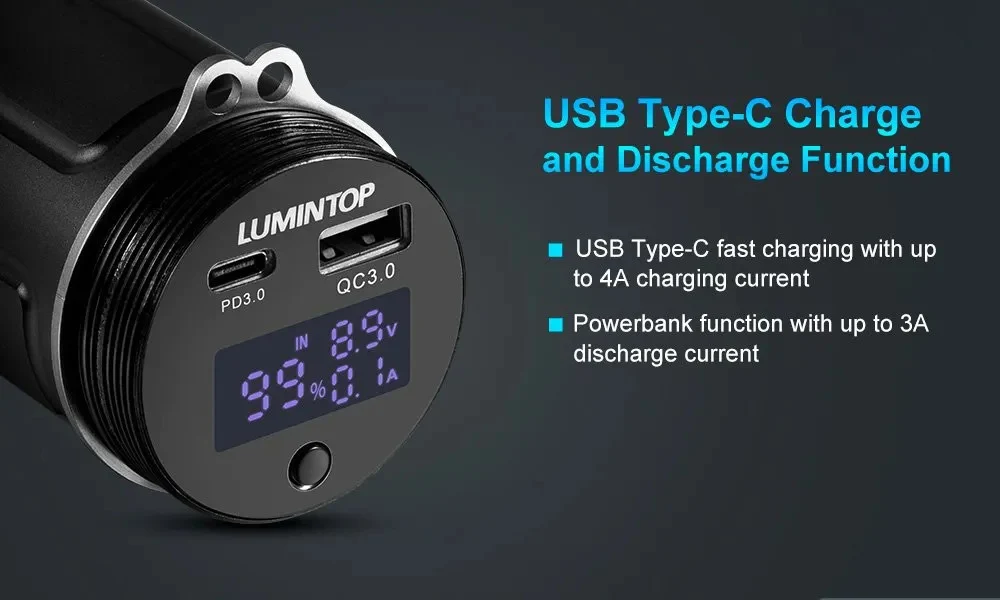

USB Type-C Quick Charge/ Discharge Function

1) Charge: Integrated PD3.0/QC3.O output quick charging protocol, support PD2.0/3.0 bidirectional input/output and PPS output protocol; max battery terminal charging current can reach up to 4.0A;adaptive charging current adjustment is available. When charging, the display will show the input voltage, output current, percentage (only for charging status, not for real-time battery percentage indicator), voltage, charging current. The quick charge function is turmned off when two ports are being used simultaneously.
2) Discharge (power bank function):Supports a maximum discharge current of 3A.When discharging, the output voltage, current, and percentage (only for displaying the discharge status, not for real-time battery indication) are displayed.

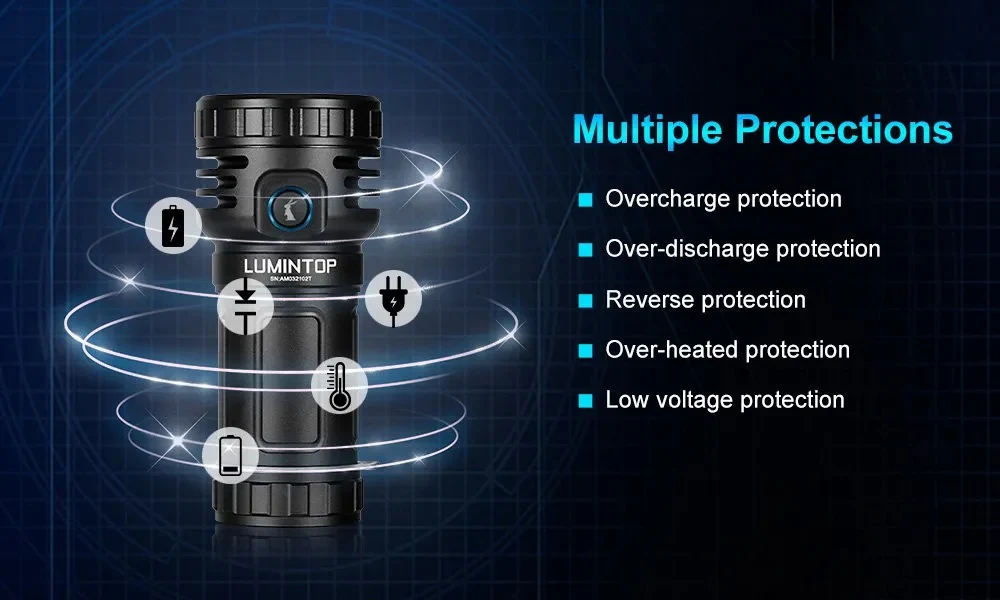

Multiple protection functions

1.Overcharge protection to prevent damage to the battery from overcharge.
2.Over-discharge protection to prevent over-discharge from damaging the battery.
3.Reverse protection to prevent the flashlight from being damaged from the battery reverse installation and short circuit.
4.Over-heat protection,when the temperature of the flashlight exceeds 55 degree,the flashlight will automatically reduce the output to prevent overheating and ensure a comfort of use.
5.Low voltage protection,when the battery is under 3.1Vis detected, the flashlight will downshift to Low automatically, and the light will flash as areminder; when the battery is at 2.9V, only Moonlight can be turned on; the flashlight will automatically shut down at 2.7V.

Battery Usage

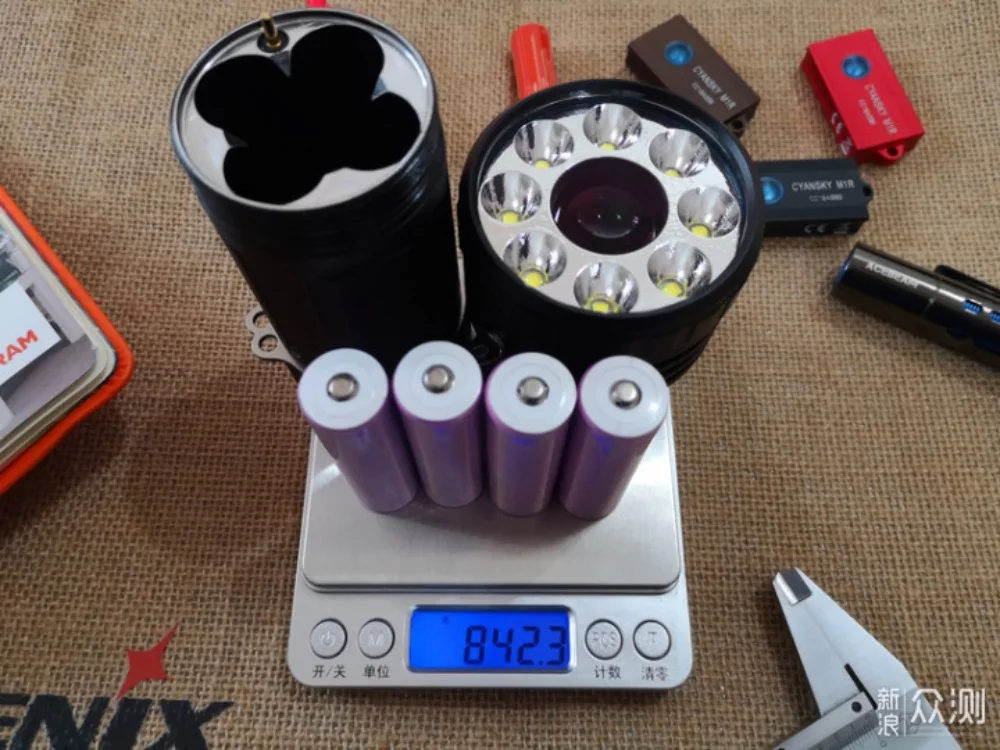

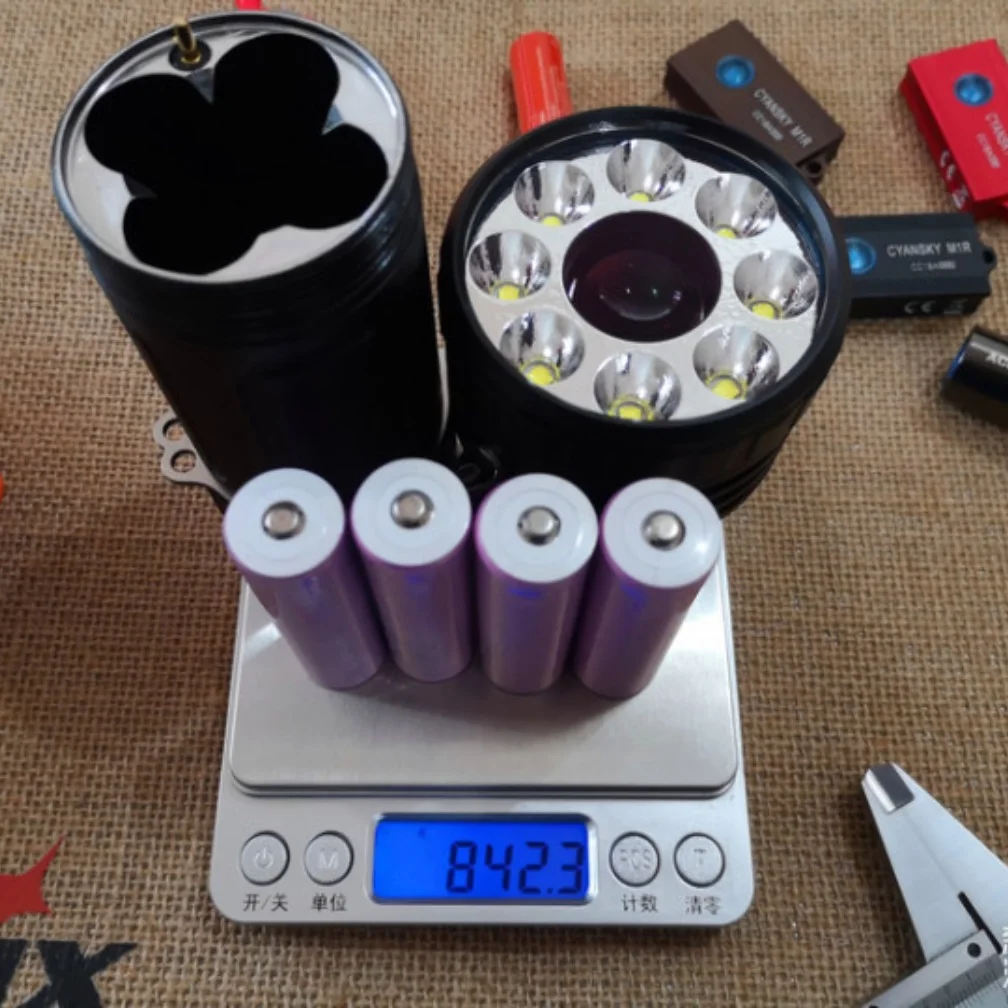

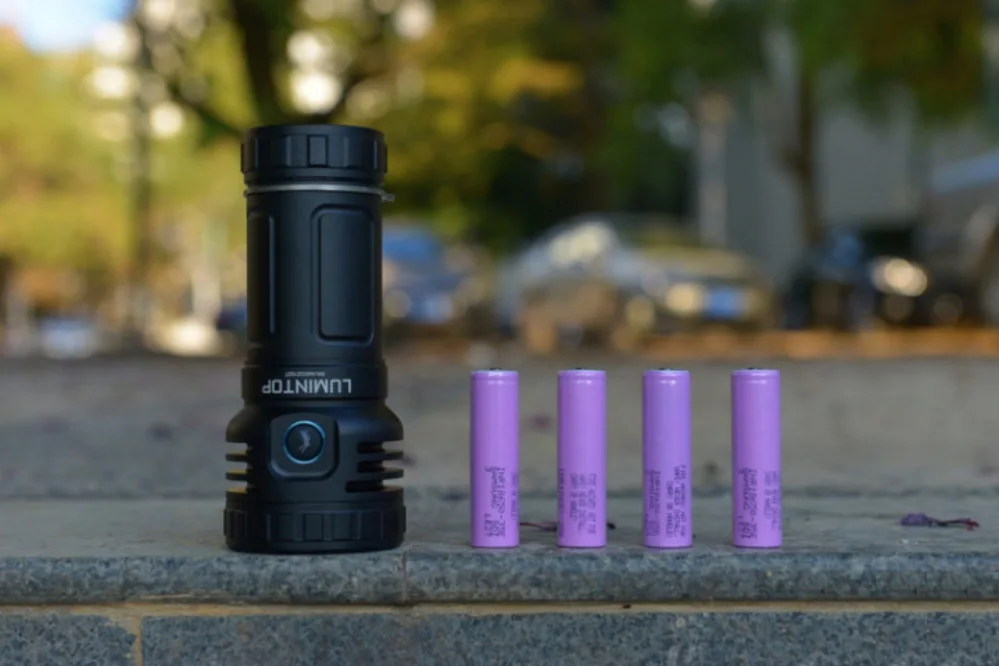

1. Use one to four reputable 18650 lithium-ion batteries, button-top, unprotected with a max length of 67mm.

2. When replacing the battery, please use the same brand and model type of batteries, and ensure the positive anode towards the light head.

Warning!

1. The flashlight is a high-power lighting device. It's forbidden to shoot directly to the eyes.
2. Keep the torch out of reach of children.

Package Included

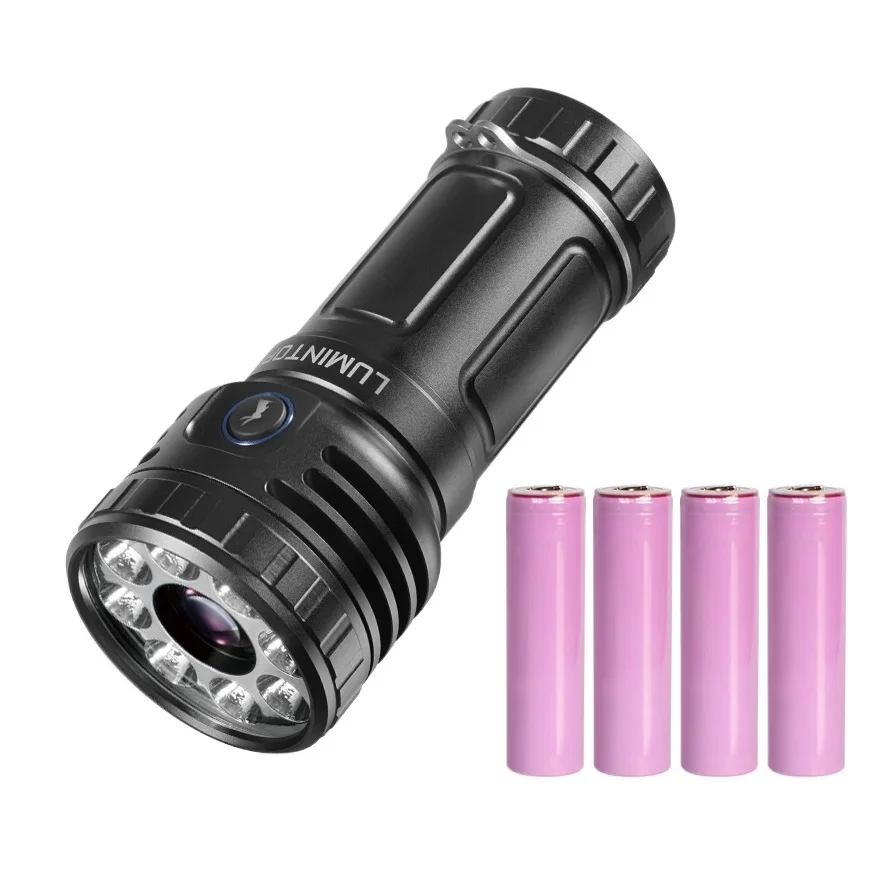

1.1*THOR PRO Flashlight
2.1*Type-C charging cable
