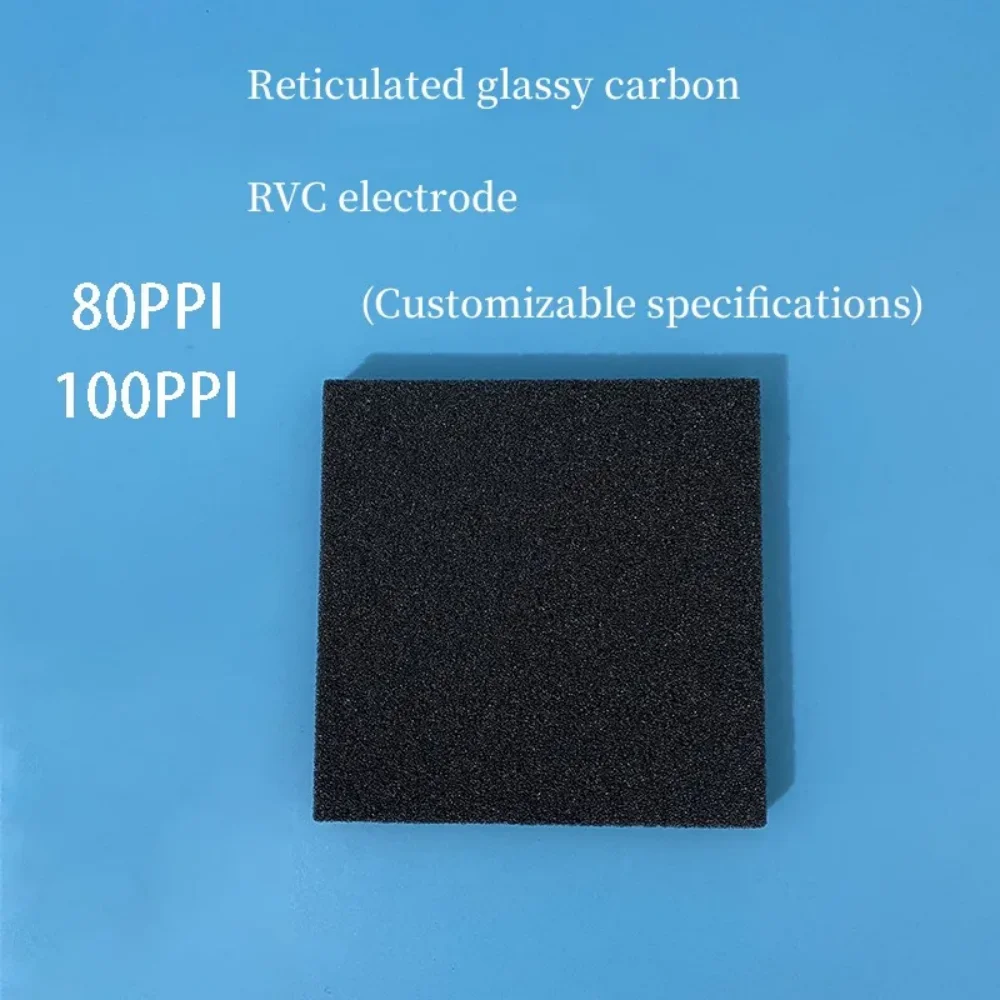

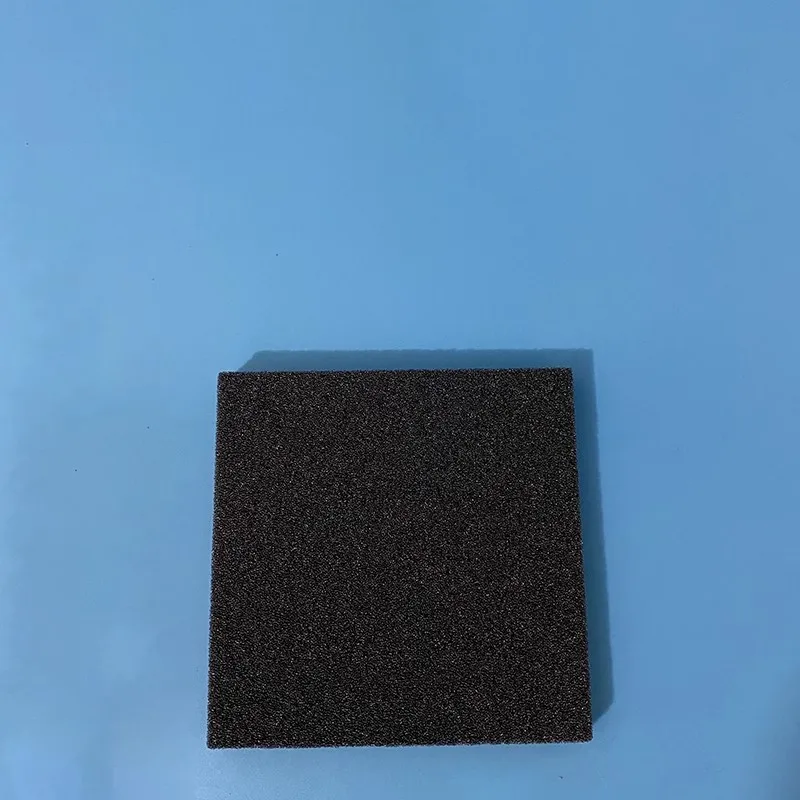

Reticulated glassy carbon is a three-dimensional reticulated microporous material composed of
glassy foam, with porosity of 90% – 97%, low density (0.03g/cm3), high chemical stability, specific
surface area and conductivity, low thermal conductivity and coefficient of thermal expansion, high
structural strength and low resistance to fluid.
Basic properties of foam carbon：
A：characteristic
1、Low density, high strength
2、It can be made into both high thermal conductivity materials and low thermal conductivity materials
3、Good thermal shock resistance, able to withstand the impact of temperature change of 1 250 ℃
4、High temperature and corrosion resistance

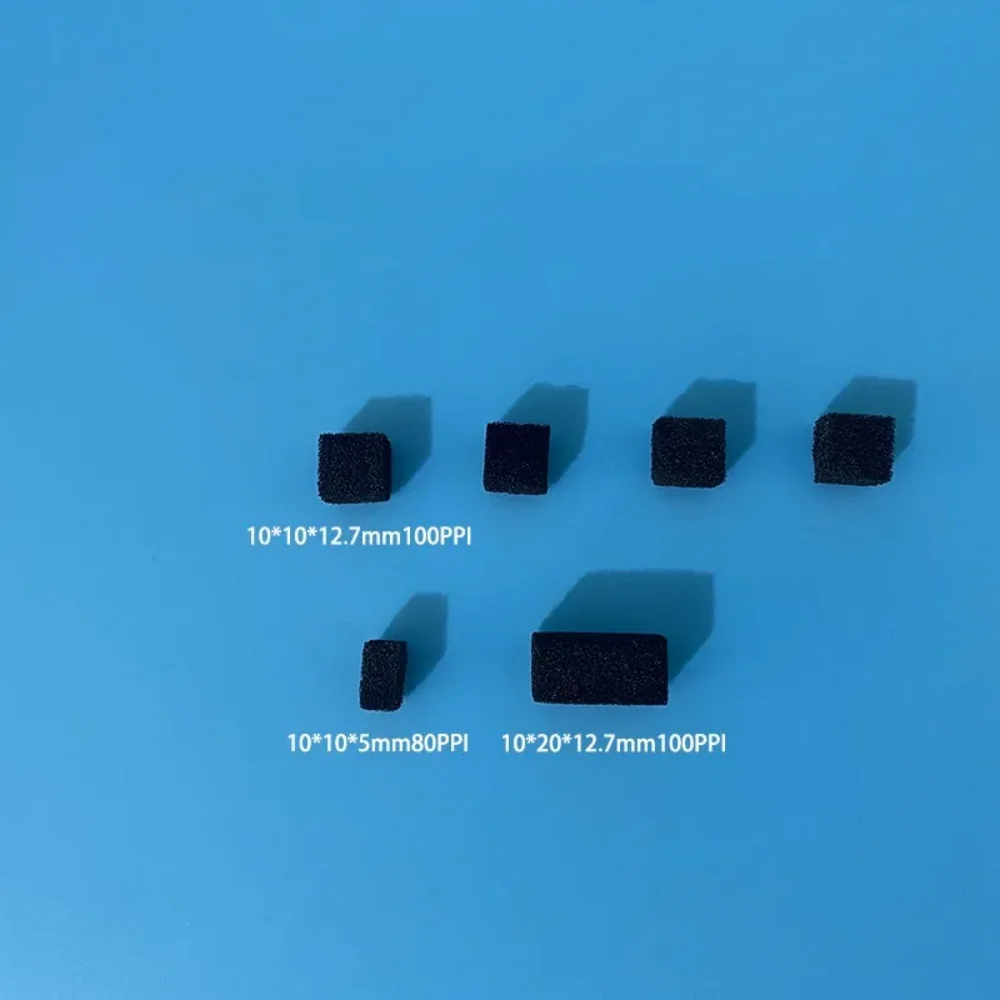

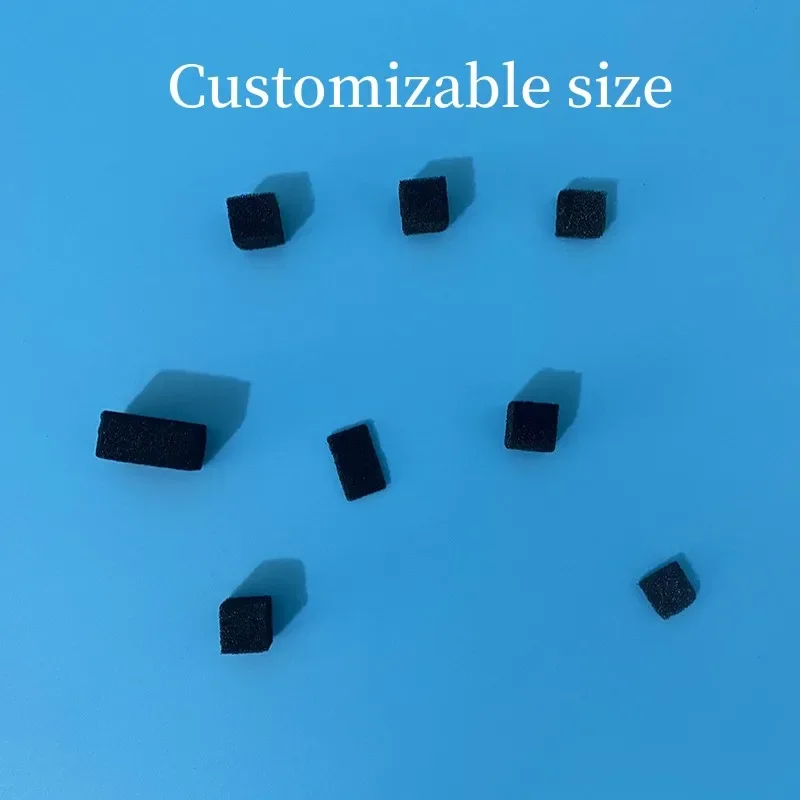

5、Aperture can be foamed according to customer requirements
6、It has good processing performance and can be bonded with various common adhesives, so that carbon foam blocks are not restricted, and it is easier to form complex structures. Metal materials can be plated on the surface of foam carbon.
7、The material design can be flexible. The performance design can vary widely, and the performance of foam carbon can be achieved by engineering methods to meet the requirements of different densities, holes and hole connection methods.
B：Technical indicators：
Density：0.2~1.0g/cm3 Void fraction：30~80%
Aperture：0.01~6mm compressive strength：8~12Mpa
Compressive modulus：300~620Mpa tensile strength：2~5Mpa
Tensile modulus：300~500Mpa Coefficient of thermal expansion：5.0ppm/℃
Thermal conductivity：25~80W/m.k resistivity：1.0×10﹣2~10﹣5 Ω·m
Maximum service temperature：600℃（In air），3000℃（In inert gas）
Main uses of foam carbon:
LED lamp cooling material, battery electrode and fuel cell electrode, optical workbench and light body lens, propellant nozzle, light antenna, junction of cabin partition, baffle plate of rocket jet shock wave, stealth material, light armor, composite material processing, brake pad, anti extrusion annular chamber of automobile, structural isolation plate, high temperature insulation, waste gas and wastewater treatment materials, catalyst carrier, etc
