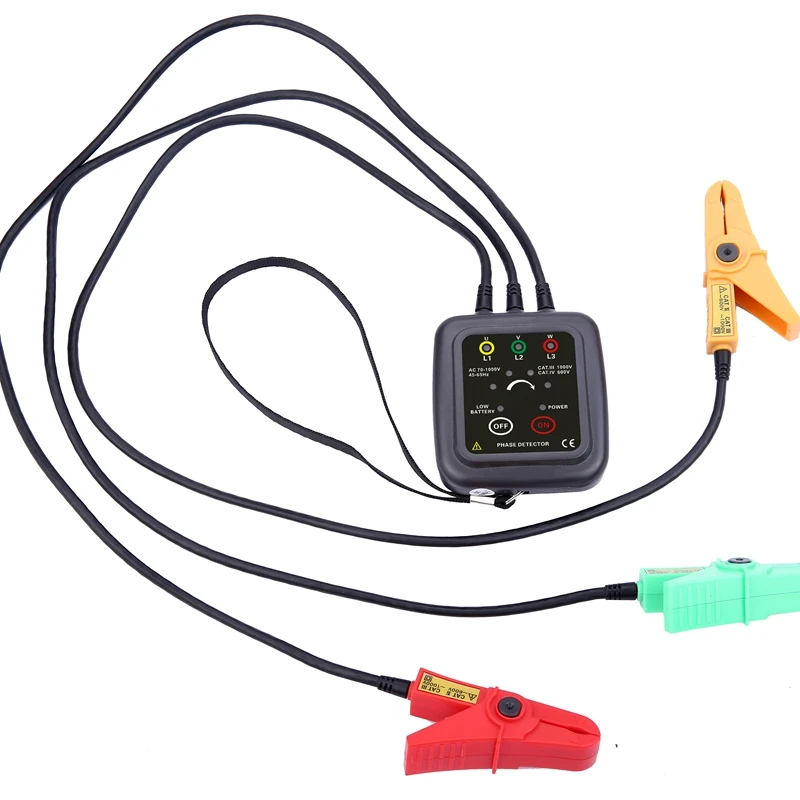

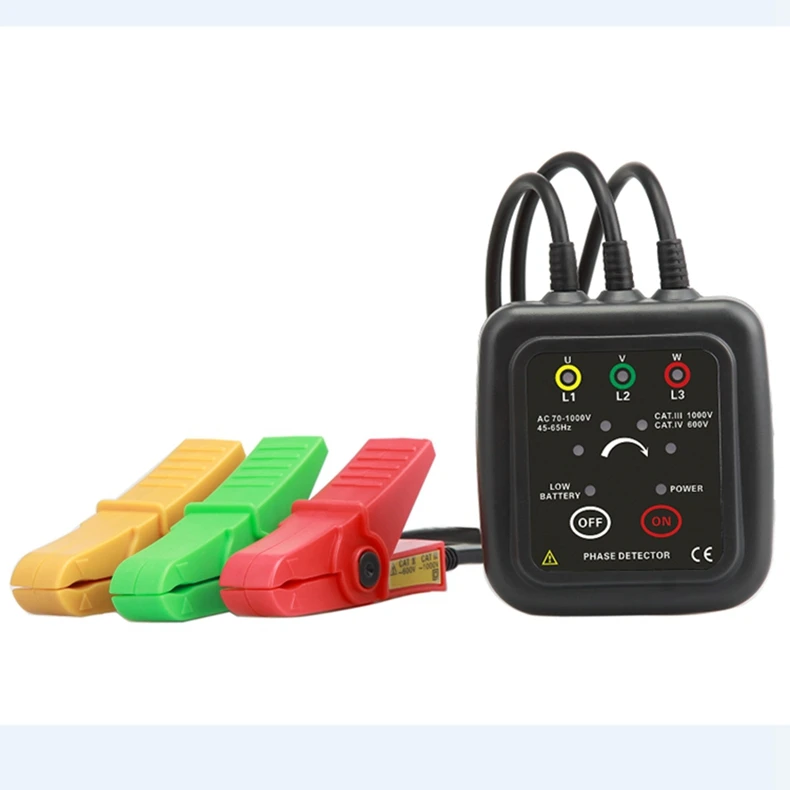

ETCR Non-Contact Phase Sequence Detector Magnetic Base Live Line Simple Power Electricity Break Point Locate Tester AC 70-1000V

1.Introduction:

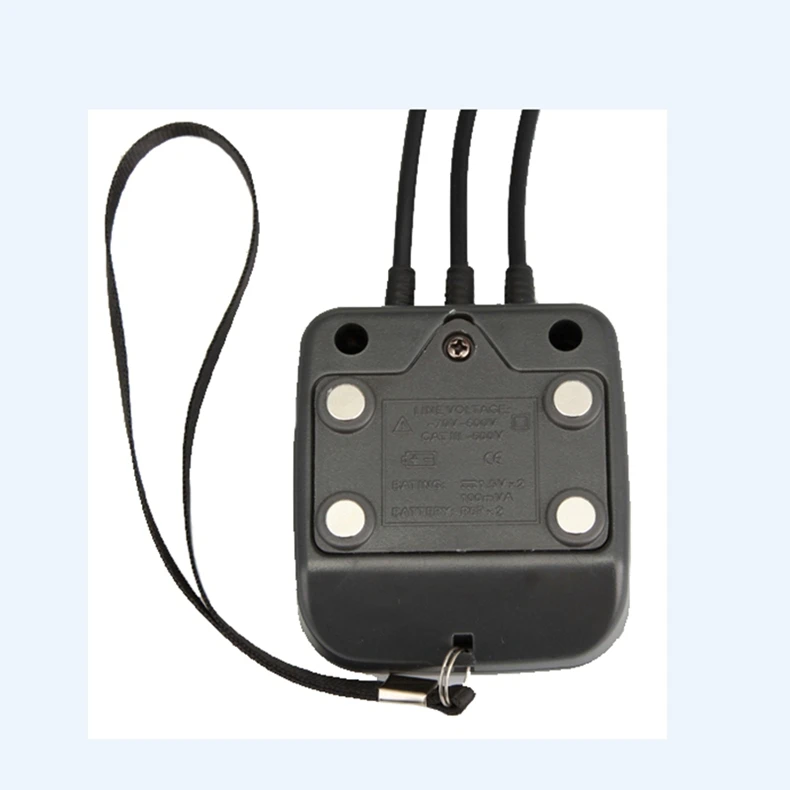

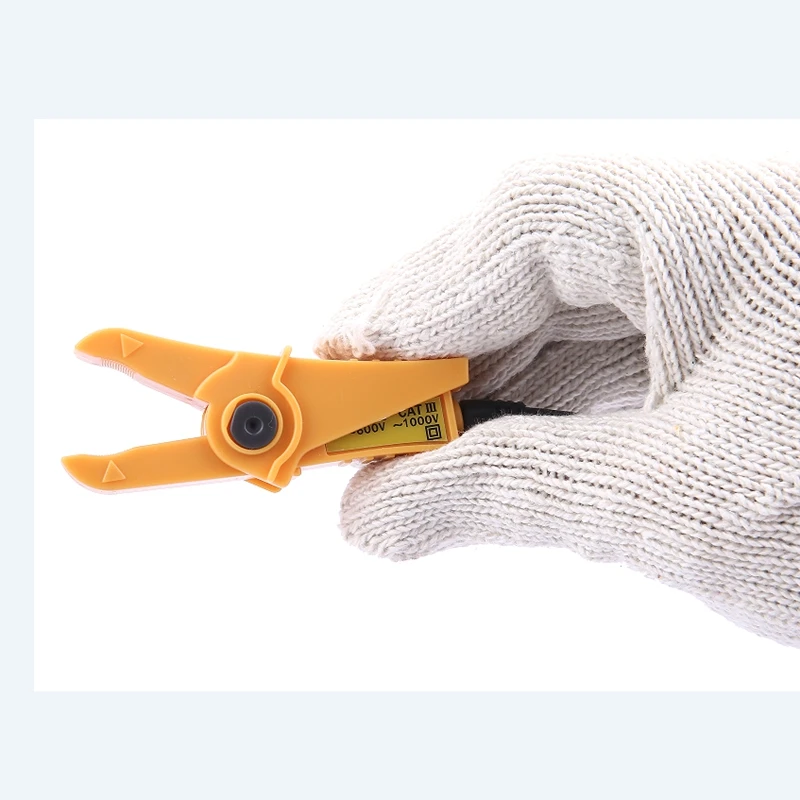

ETCR1000C、ETCR1000D Non-contact Phase Sequence Detector breakthrough the traditional method for phase sequence detecting. In traditional phase sequence detection, the wiring terminal of the three-phase must be peeled off and connected the three exposed clips or test probe of the phase sequence meter to the three exposed live wires. However, ETCR1000C and ETCR1000D adopt the clamp non-contact induction measurement, no need to peel off the wires or contact the exposed high-voltage live wire, the phase sequence can be detected by directly clamping on the insulation outer skin of the three-phase live wire with three super inductive high insulation clamps, and at the same time, audible and visual indicate the positive or anti-phase state of the three-phase power phase sequence. Four pieces powerful magnets are attached to the back of the meter, which can be attached to the distribution box for use.
ETCR1000C、ETCR1000D Non-contact Phase Sequence Detector has the functions of live line detection, simple power electricity detect, break circuit searching, break point location, lines maintenance and so on.
ETCR1000C、ETCR1000D Non-contact Phase Sequence Detector testing is quick and convenient, the display is clear and obvious, greatly improved the field test security, effectively protected the operator's personal safety and increased the productivity! It is a safety standard instrument for three-phase power supply phase sequence, motor detection and line maintenance.

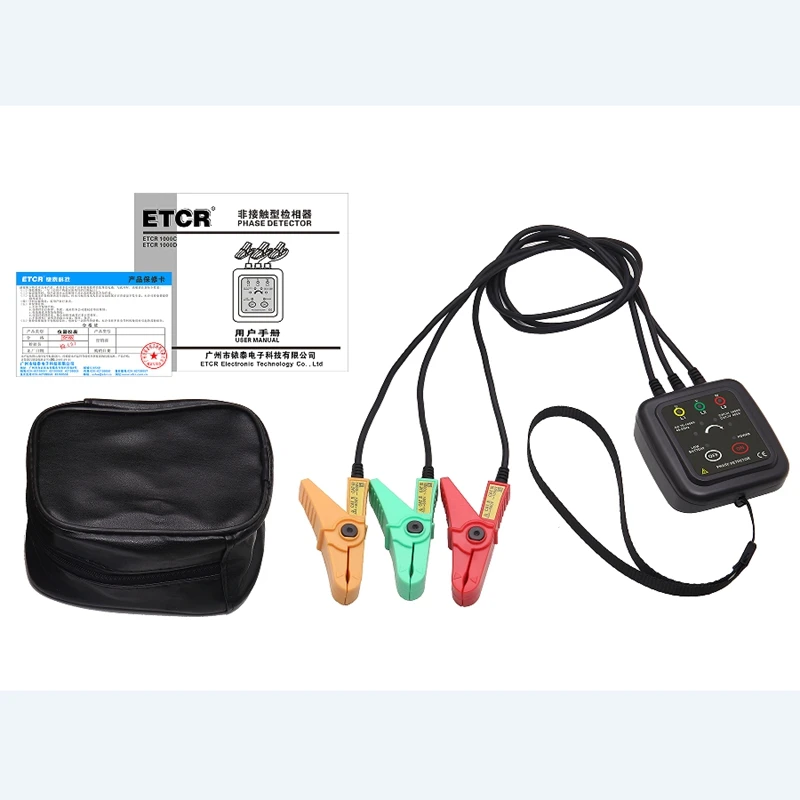

Package List:

1 * Non-Contact Phase Sequence Detector
1 * User Manual
