Price: -
Parameters:

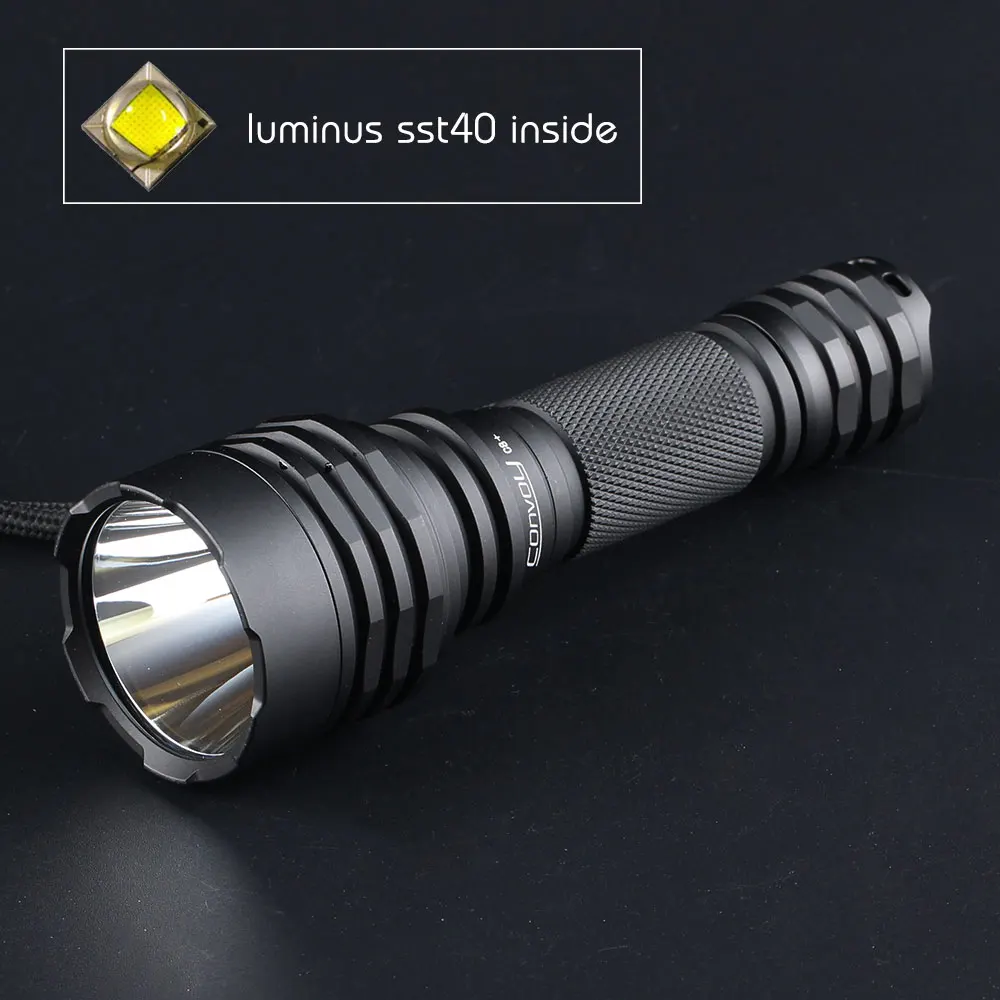

LED: Luminus SST40 6500K and 5000K

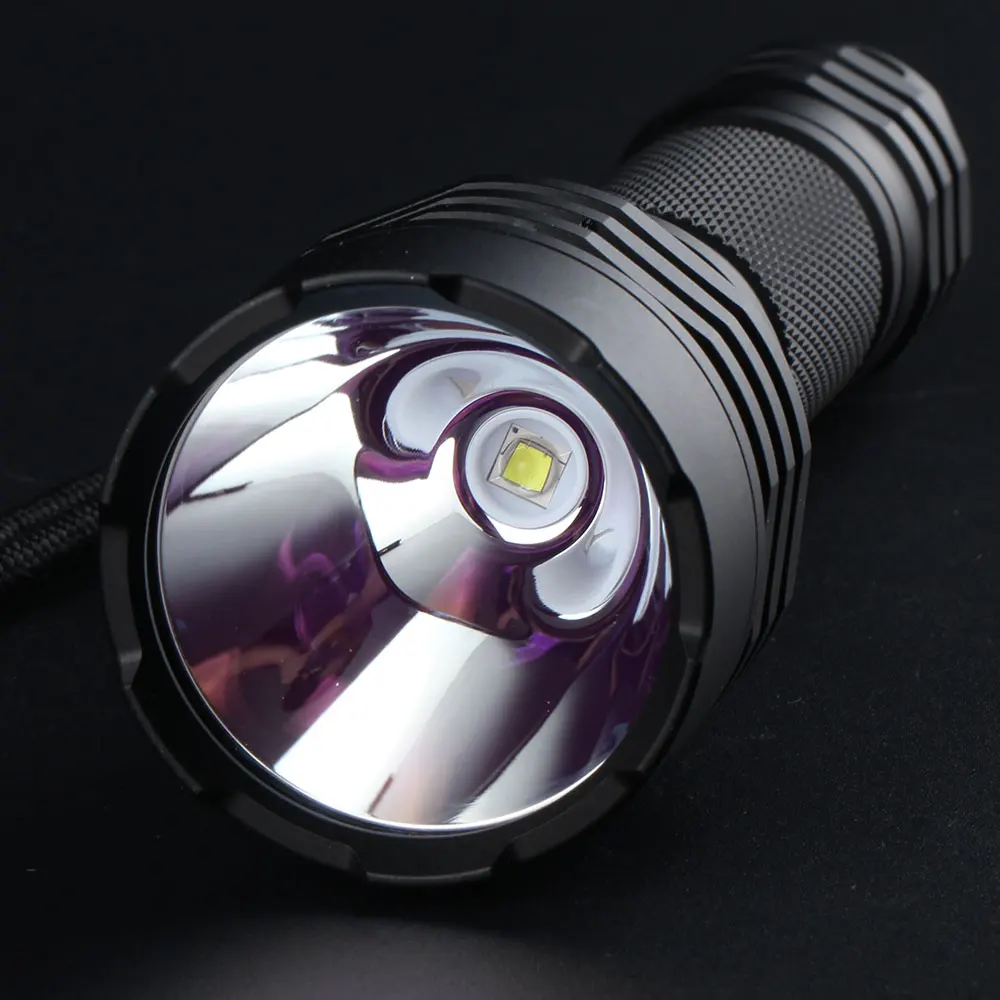

Reflector: Smooth
Battery: C8+ runs on 1pcs 18650 lithium battery (protected or unprotected)
Diameter of head: 44.5mm
Length: 142mm
Diameter of body: 25.2mm
Weight: 145g
Package type:
A. With battery:
1*Flashlight
1*18650 Rechargeable battery
1*USB charger
B. No battery:
1*Flashlight
1.Driver instructions:(4modes)
It has a simple 4 modes for switching, which is very suitable for ordinary users.
Modes : 0.1%-3%-30%-100% max current output is 5000mA
Its biggest advantage is that no frequency can be seen in any mode, and there is temperature management.
It can control the flashlight temperature not to exceed 55 degrees Celsius,
If the flashlight temperature is below 55 degrees Celsius, it will output full current. If it is above 55 degrees Celsius, it will constantly adjust the current so that the flashlight will not overheat.

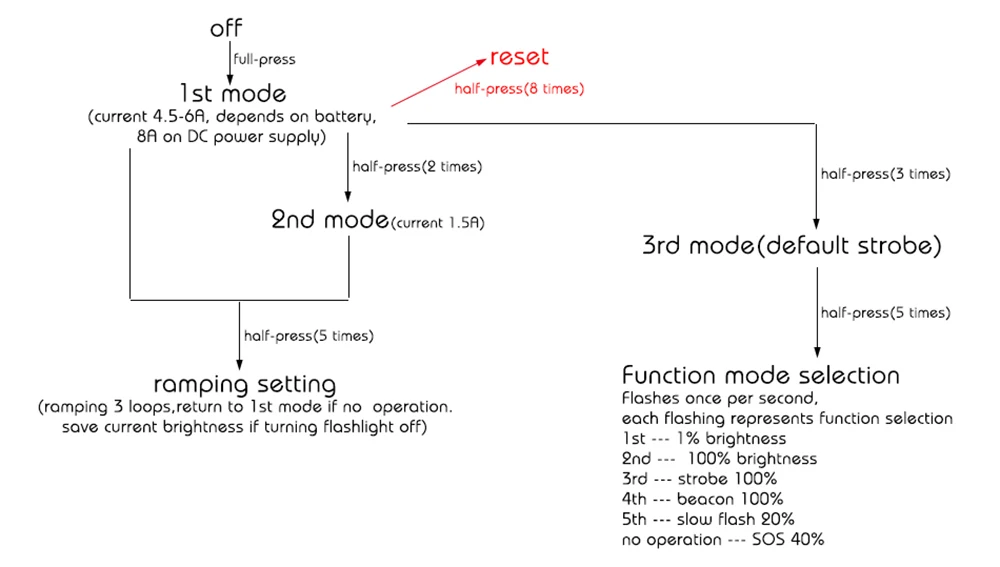

2.Mode instructions:(Ramping driver)
1.The speed of half-press should be fast
2.flashlight flashes once per 6seconds at low voltage (3V or so),and shut down later
3.No temperature protection management,pls pay attention to the heat,

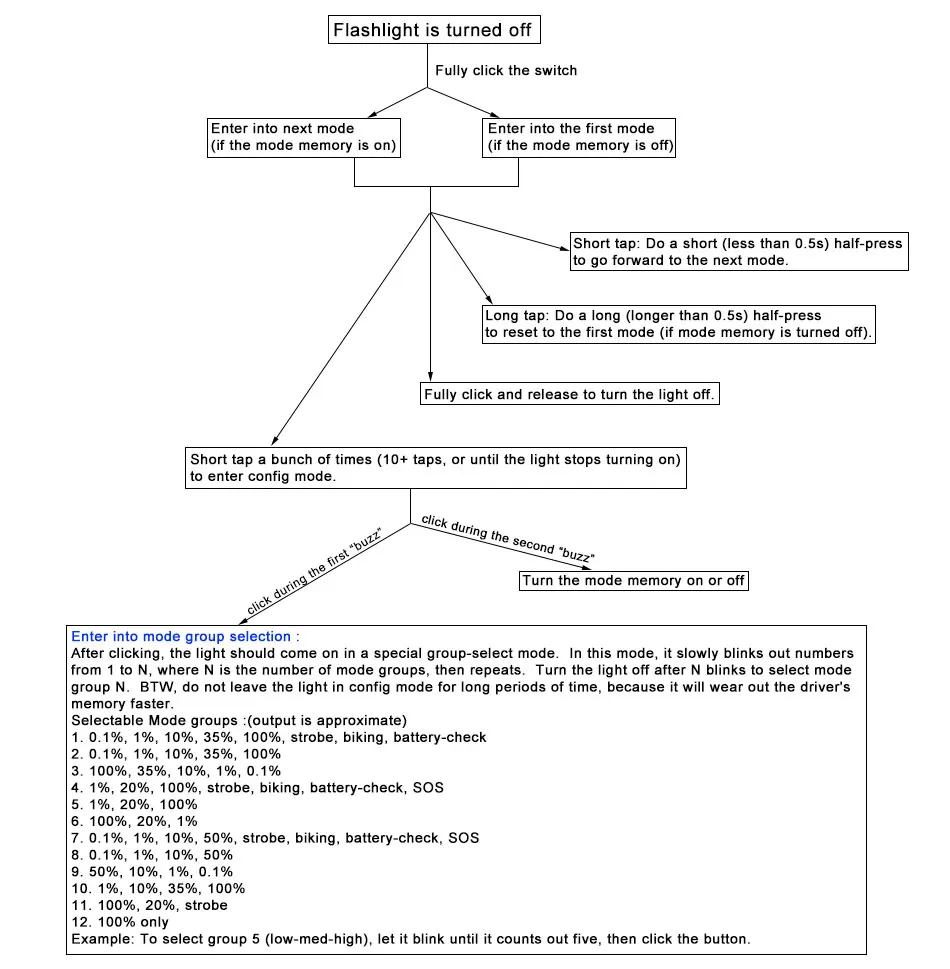

3.Driver instructions:(12groups)
It has the same temperature protection function as the 4modes version.Max current output is 5000mA.
It has 12groups, following is the driver operation instructions.
