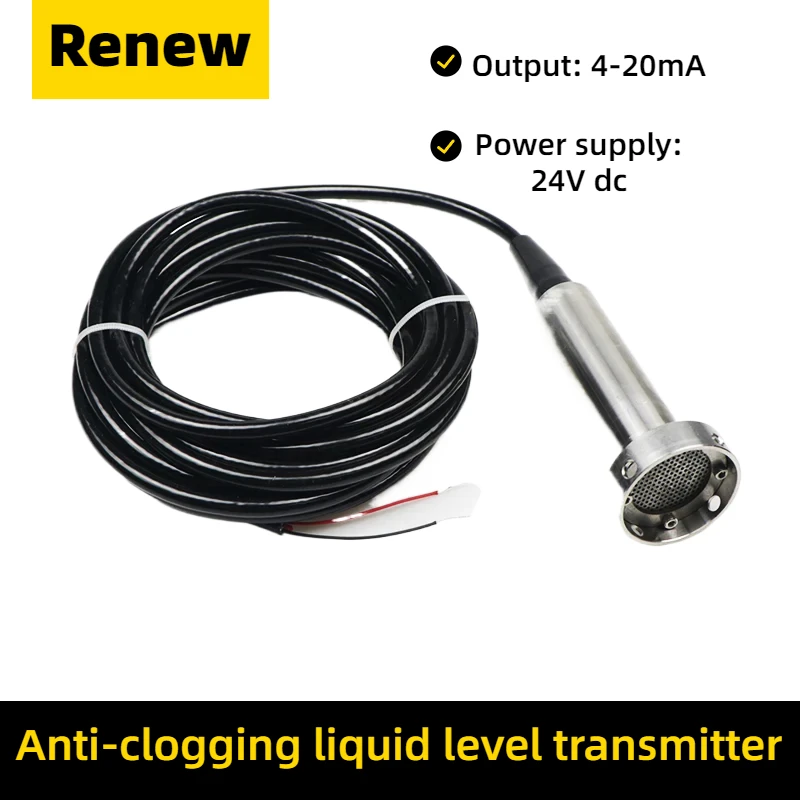

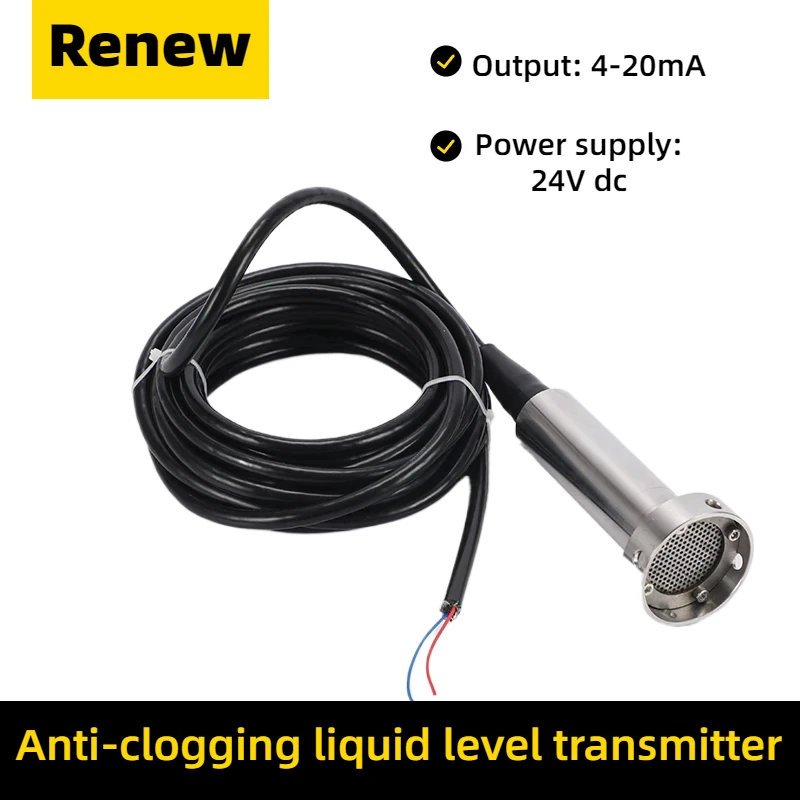

Anti clogging Liquid Water Level Sensor 4-20mA Submersible Septic Tank Sludge Sewage Level Transmitter
Notes:
What we can make:
1. Available measuring range: any range within 0~500 metres.

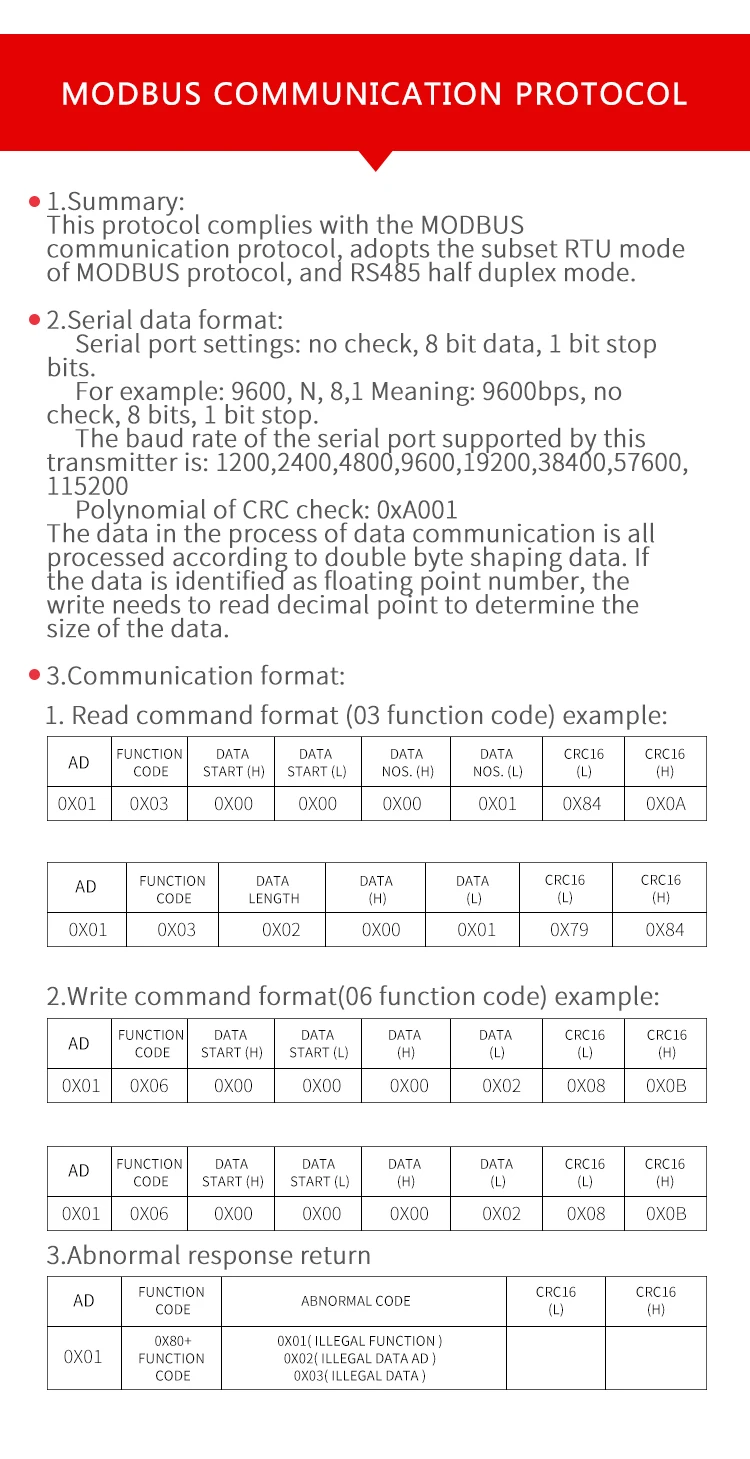

2. Available output signal: 4~20mA, 0-10V, 0-5V, 0.5~4.5V, RS485.
3. Available power supply: 12~30Vdc, 24Vdc, 12Vdc
So: if you need other parameters, please contact me.
And tell me the measuring range, output signal, power supply.
We can make special customization for you.
Product Features

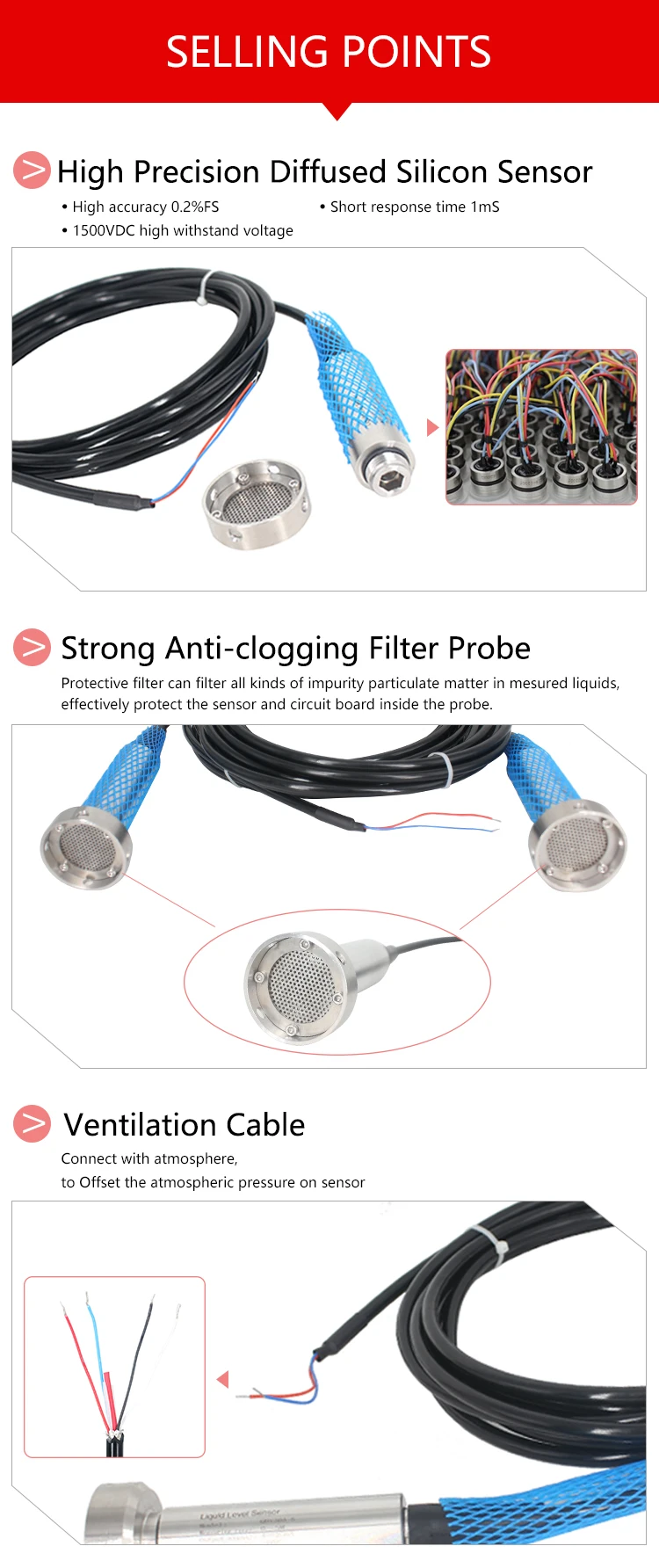

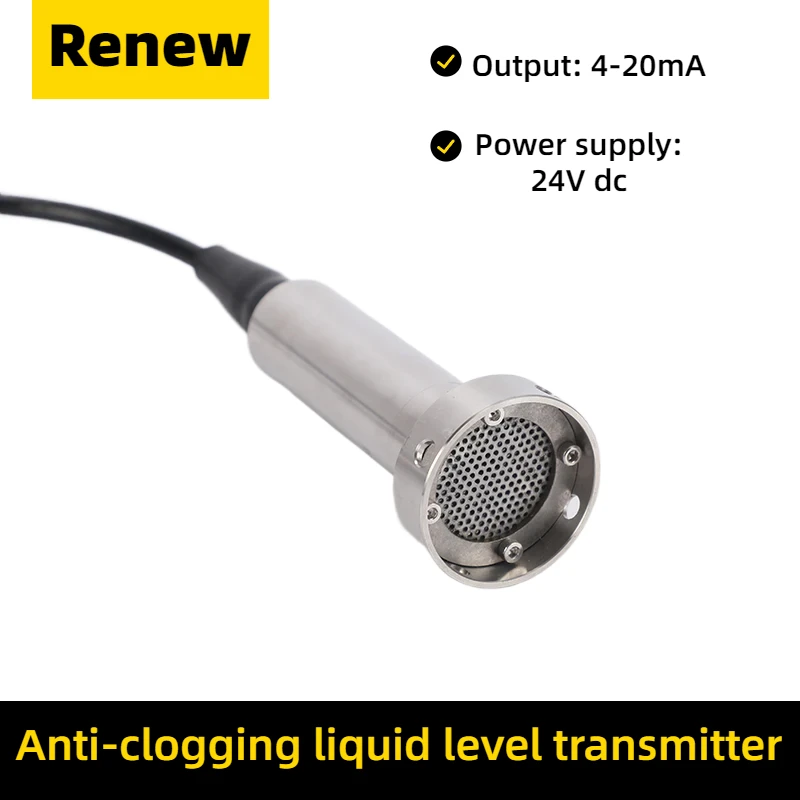

<1>. Submersible Water Level Sensor suitable for liquid level or pressure and depth measurement. It has a strong anti-clogging protective filter probe, it can filter kinds of impurity particulate matter in measured liquids,effectively protect the sensor and circuit board inside the probe.
It made of 316 SS housing. Its all stainless steel, hermetically sealed housing make it suitable for immersion in most industrial liquids and oils.
<2>.The welded housing is tested in-house via a helium leak tester to ensure proper protection. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank.

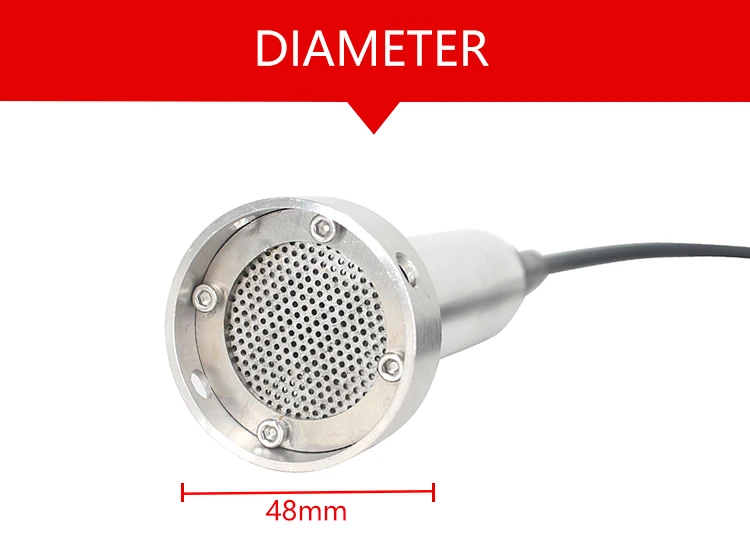

<3>.The conductors of the cable are also isolated from the outside environment to keep the level sensor operational for long-term use. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage.
Technical Parameters
|
Model |
Anti-clogging liquid water level sensor |
|
Measuring Range |
0~0.5~500m H2O |
|
Power supply |
24VDC |
|
Output Signal |
0-5V |
|
Accuracy |
0.5%FS |
|
Response Time |
≤1ms (up to 90%FS) |
|
Long-term Stability |
±2F.S/Year |
|
Medium Temperature |
-20~85℃ |
|
WorkingTemperature |
-40~80℃ |
|
Overload Capacity |
200%F.S |
|
Insulation Resistance |
100MΩ/250VDC |
|
Sensitivity Drift |
±2%F.S |
|
Zero Drift |
±2%F.S |
|
Protection |
IP68 |
|
Measuring Medium |
Various medium which is compatible with SS304 |
|
Mechanical Vibration |
20g (20~5000Hz) |
|
Impact |
100g (11MS) |
|
Material |
Junction box: Low content Cu-Al alloy Probe: Stainless steel Cable: Polyurethane cable |
|

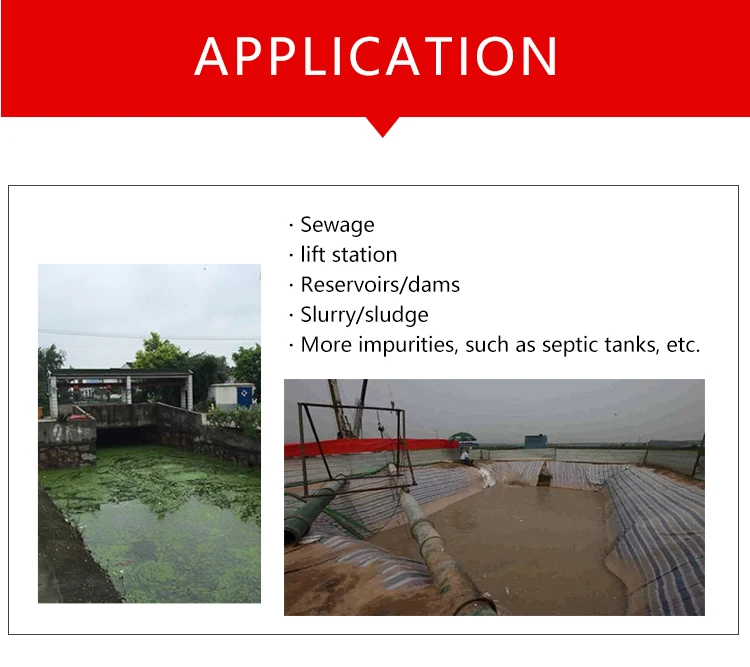

Application |

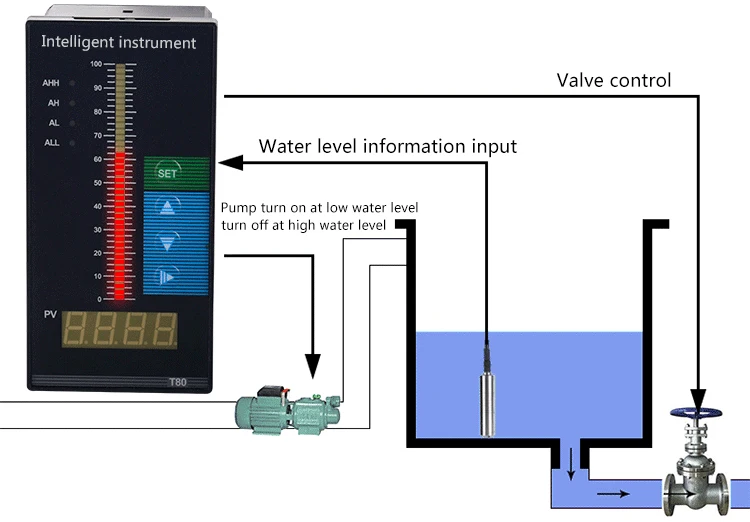

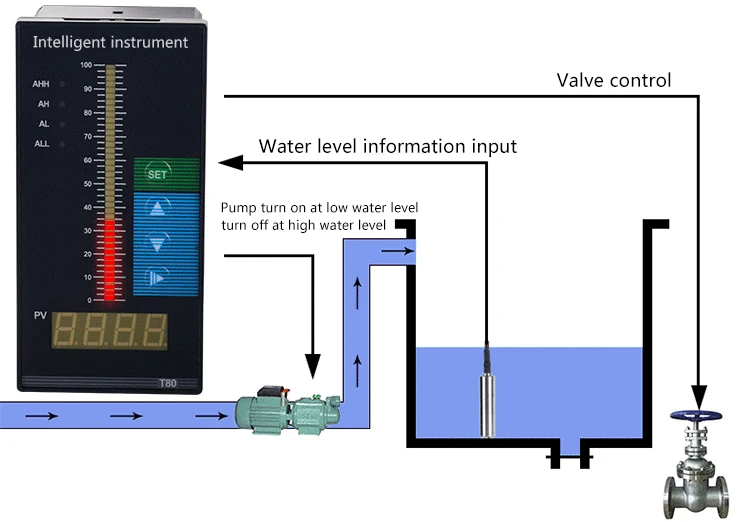

Static liquid level, Liquid tank, Sewage water, Well, Lake,etc. |
