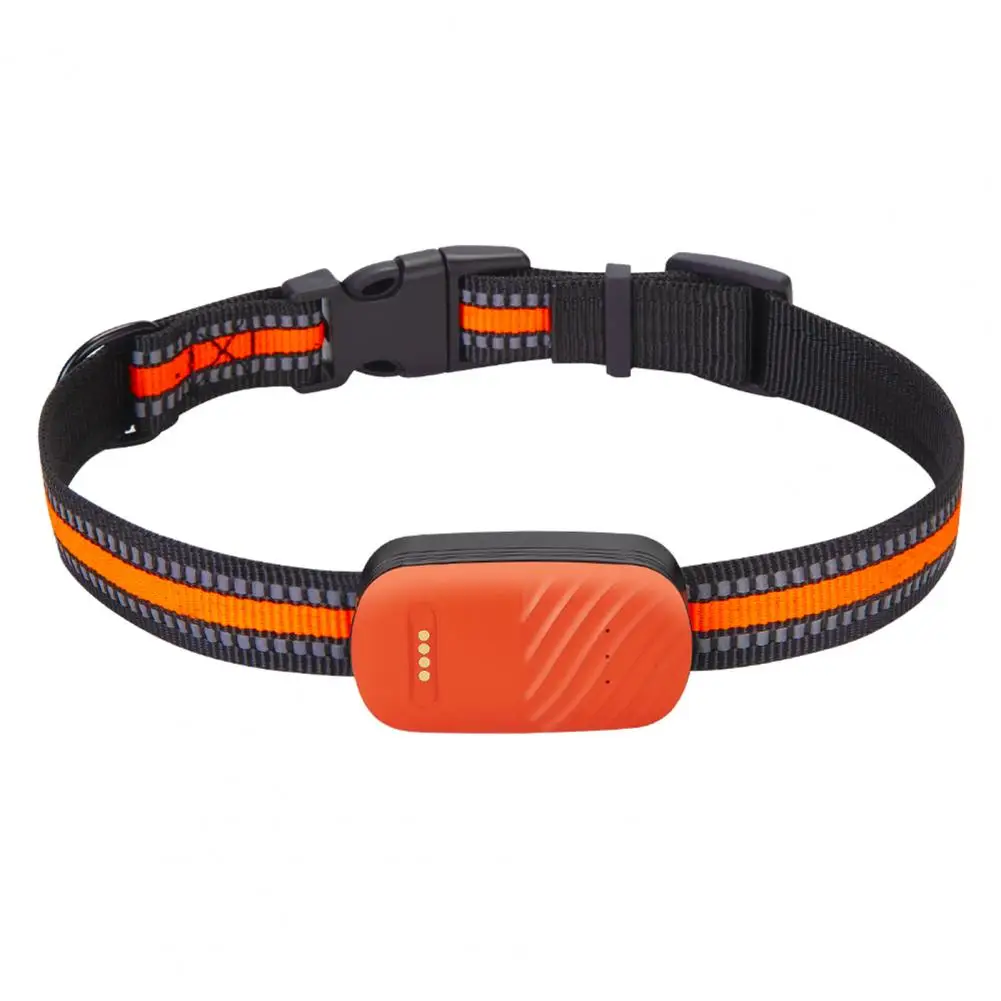

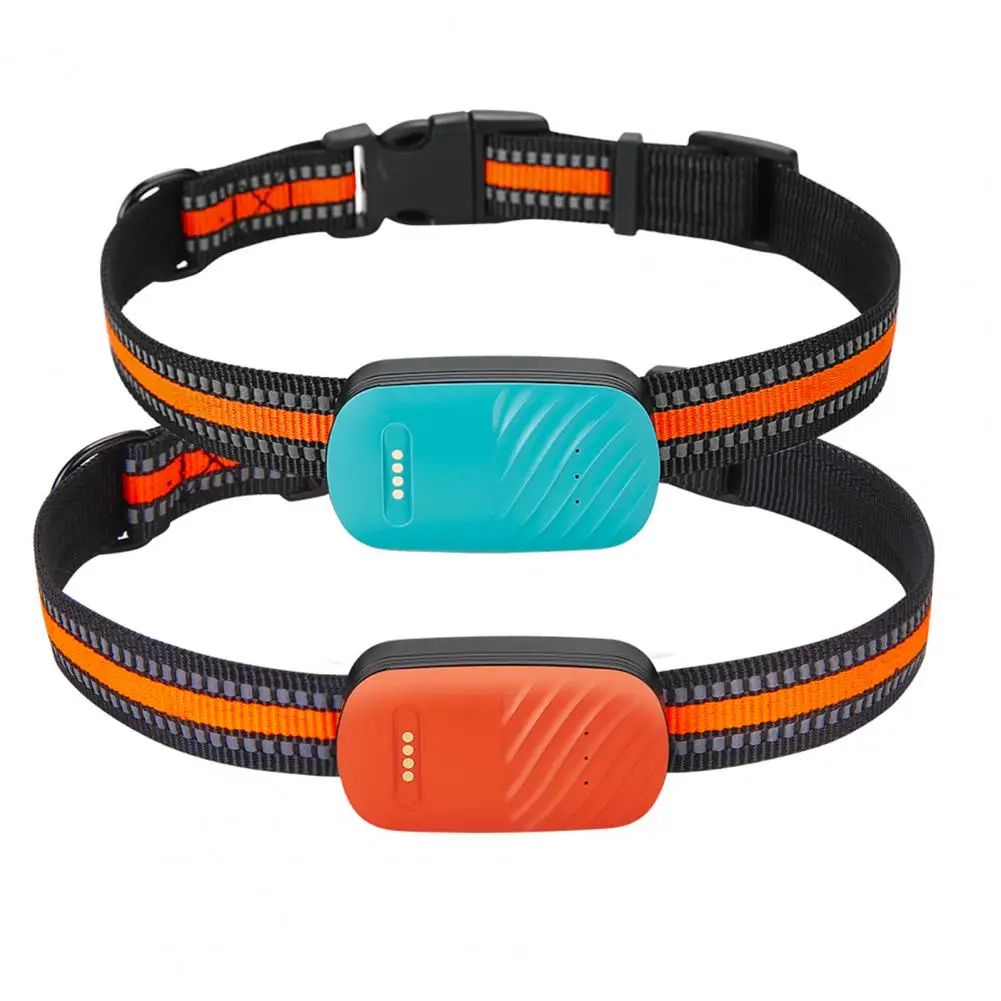

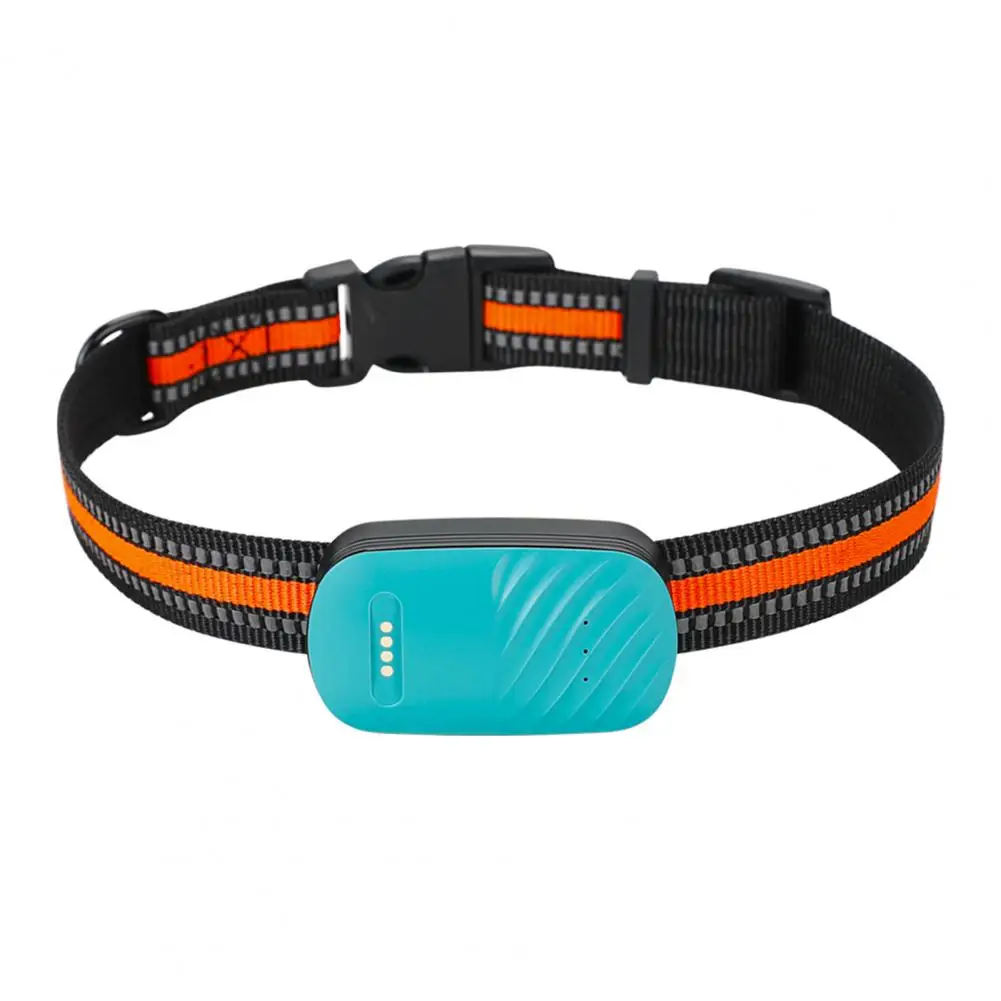

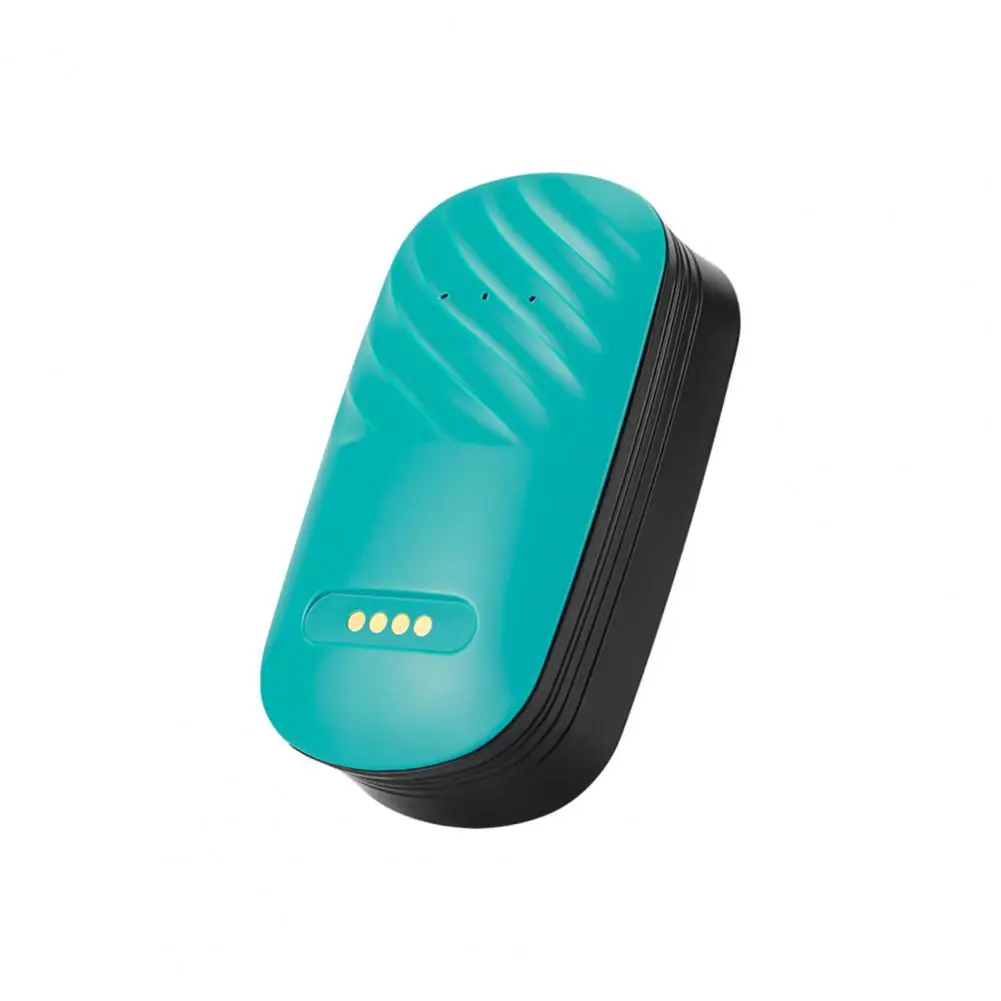

4G GPS Locator Light Indicator Accurate Positioning Track Search Waterproof Anti-lost Pet Tracking Smart Collar Device

Important Information

Material:ABS, PC

Package Size:

L: 6cm/2.36", W: 3.3cm/1.3", H: 1.9cm/0.75" (Approx.)

Overview:
This locator is not only suitable for pets, but also for the elderly and children. This locator is multi-functional, it supports location search, history track finding, two-way call, remote control and other functions to meet your different usage needs.
With the help of this locator, you can effectively prevent your pet from being lost as it provides precise positioning.
It is made of high-quality ABS and PC material.

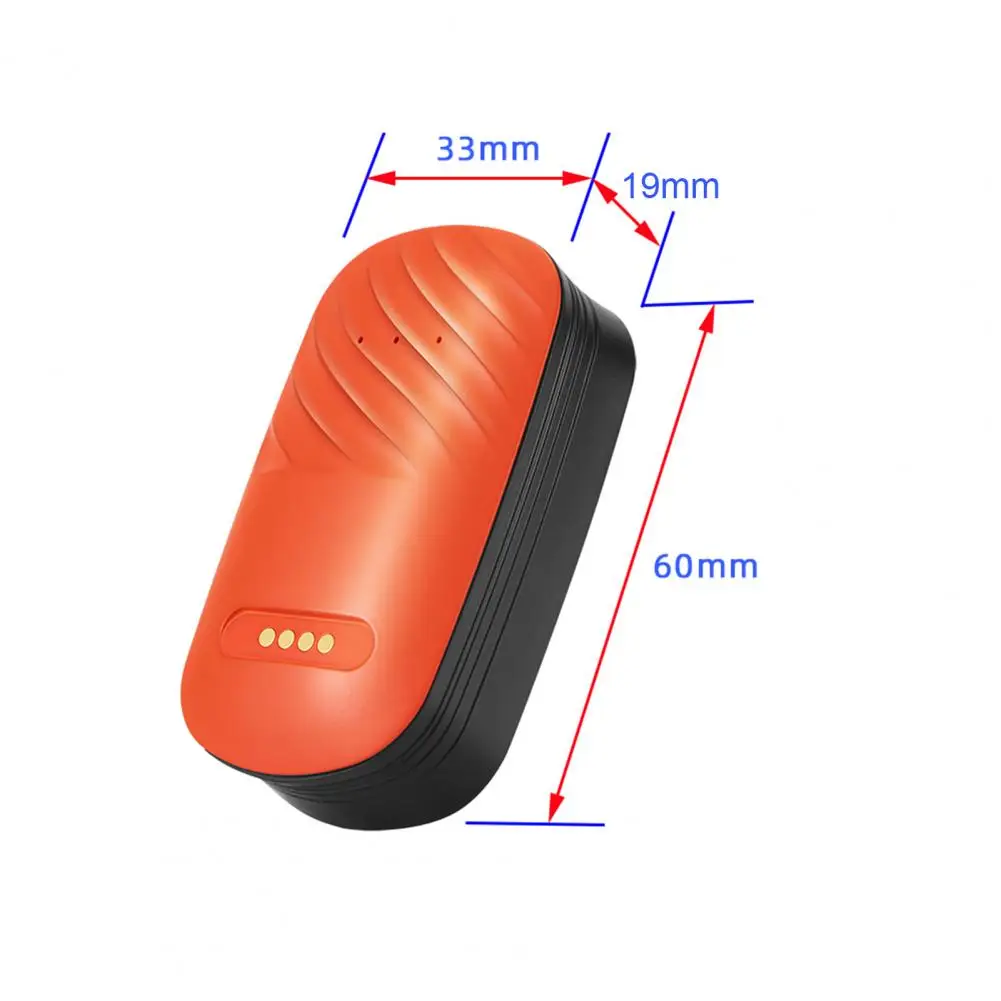

The length of this product is 6cm, the width is 3.3cm and the height is 1.9cm.
It is suitable for your pets, kittens, puppies, vehicle, the elderly, children, etc.

Note:
Due to the light and screen setting difference, the item's colour may be slightly different from the pictures.
Please allow slight dimension differences due to different manual measurements.

APP login:
1. You need to scan the code or enter the login manually through the device IMEI and the last six digits of the default password IMEI number.
Functional description:
2. Information: After various alarms of the equipment, the client will receive the alarm push and can enter the information to view the content.

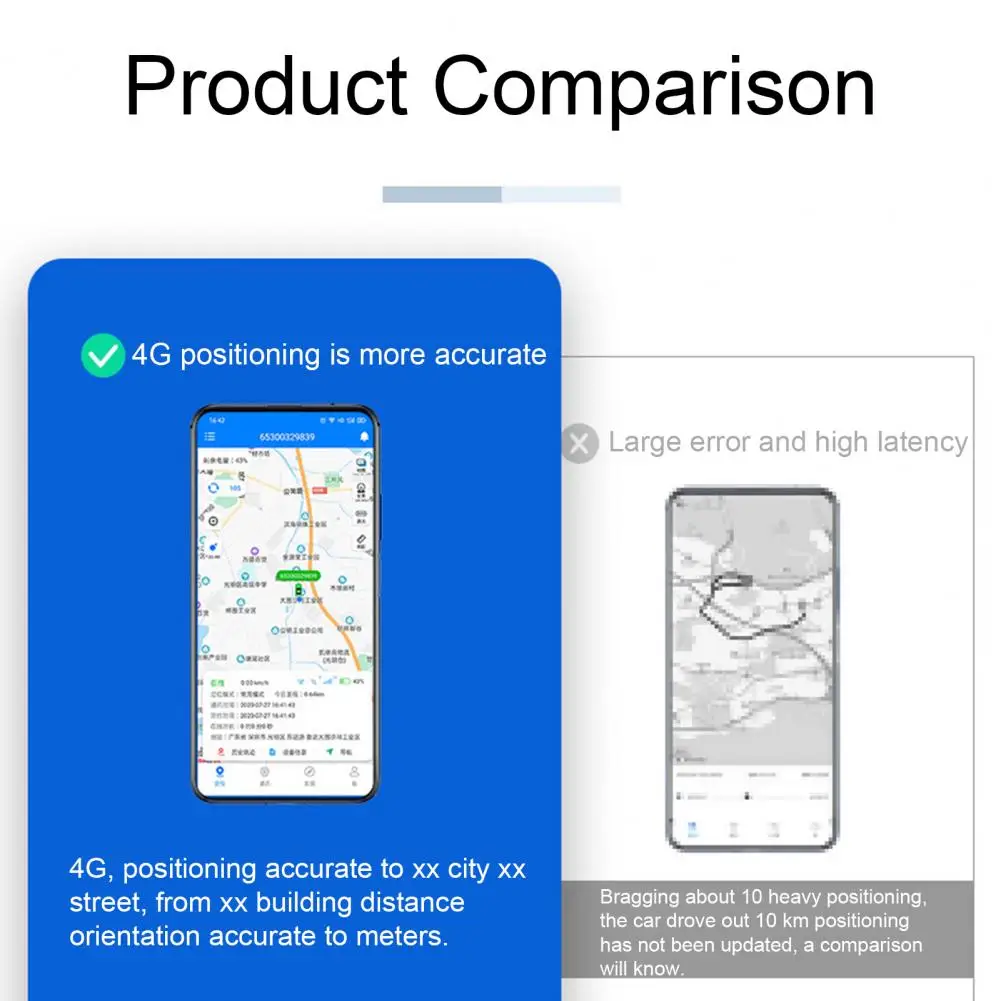

3. Positioning: View the location of the equipment in real-time. The map interface can display the location of the device, and the upload interval is 10 minutes by default.
When the icon is base station positioning, it is GPS positioning
4. Track: You can check the track in the past 3 months (the green route is GPS and the blue route is LBS)

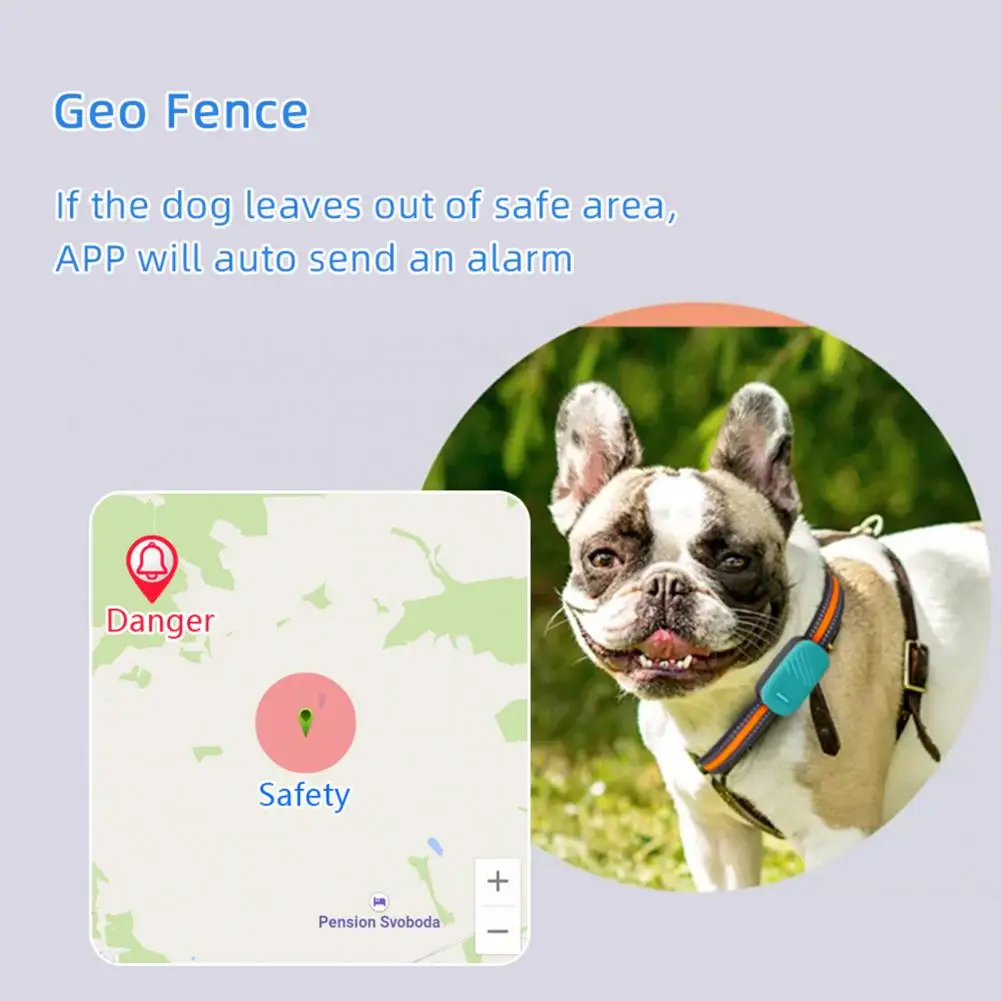

5. Safety range: 3 sections of the safety range can be set. The minimum radius of the fence is 100 meters. When the user moves from the fence to the outside of the fence, an alarm will be generated with the corresponding name range.
6. Find the equipment: If the equipment is not around, send the instruction, the equipment will ring to facilitate searching, press the stop button to stop ringing
8. Do-not-disturb period: During this period, the equipment barrier all phones.
9. Supervision number: equipment, SOS, father and mother numbers can be set.
10. Attendance: A prompt will be issued when entering or leaving the location set by the map or WIFI SSID within the set period.
11. Whitelist: A list of 47 dialable devices can be set up.
Add: Press the Add Contact key
Delete: Long press the contact person to delete or drag right to left to delete
12. Power saving: You can choose to turn on/off GPS positioning and turn off uploading data at the specified time.
13. Remote restart: The device can be restarted when an abnormality is found.
14. Remote shutdown: termination of equipment work can also be remotely operated and shut down
15. Settings: Set up various items of equipment.
Instructions for use of 3. equipment

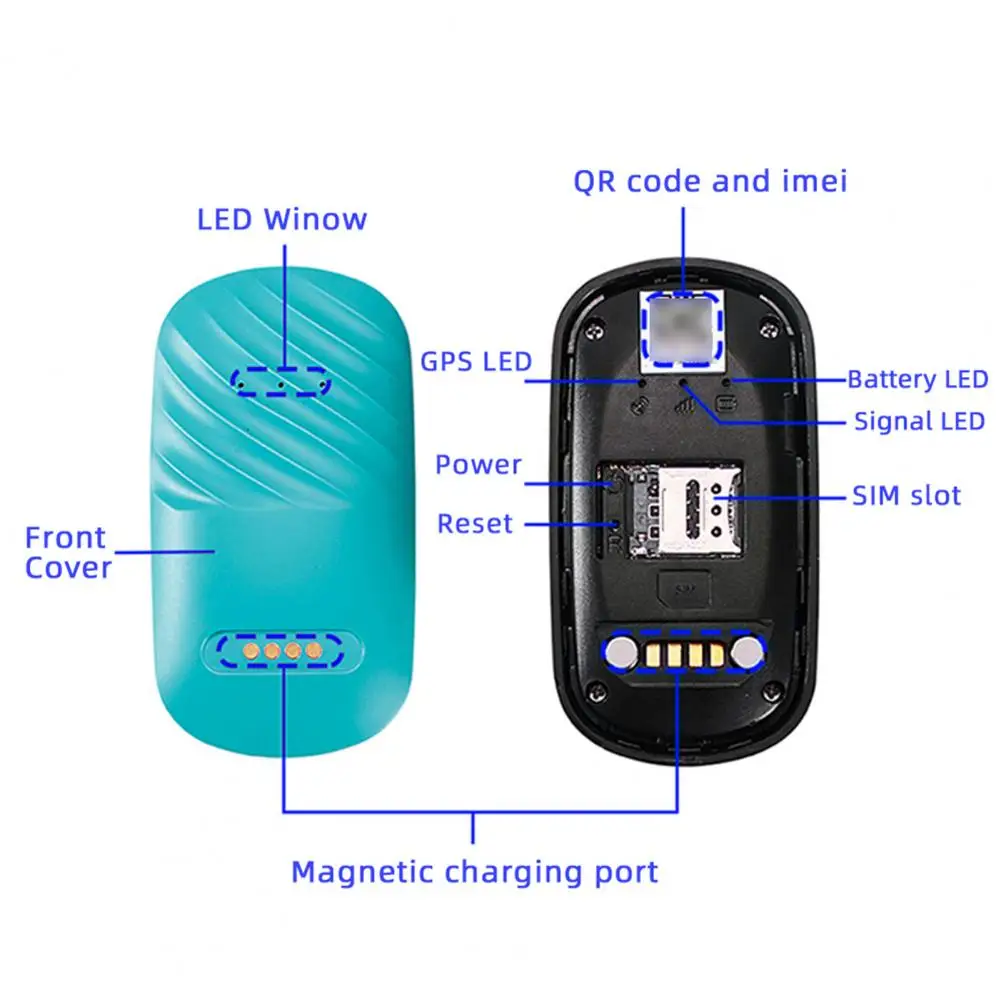

Key:

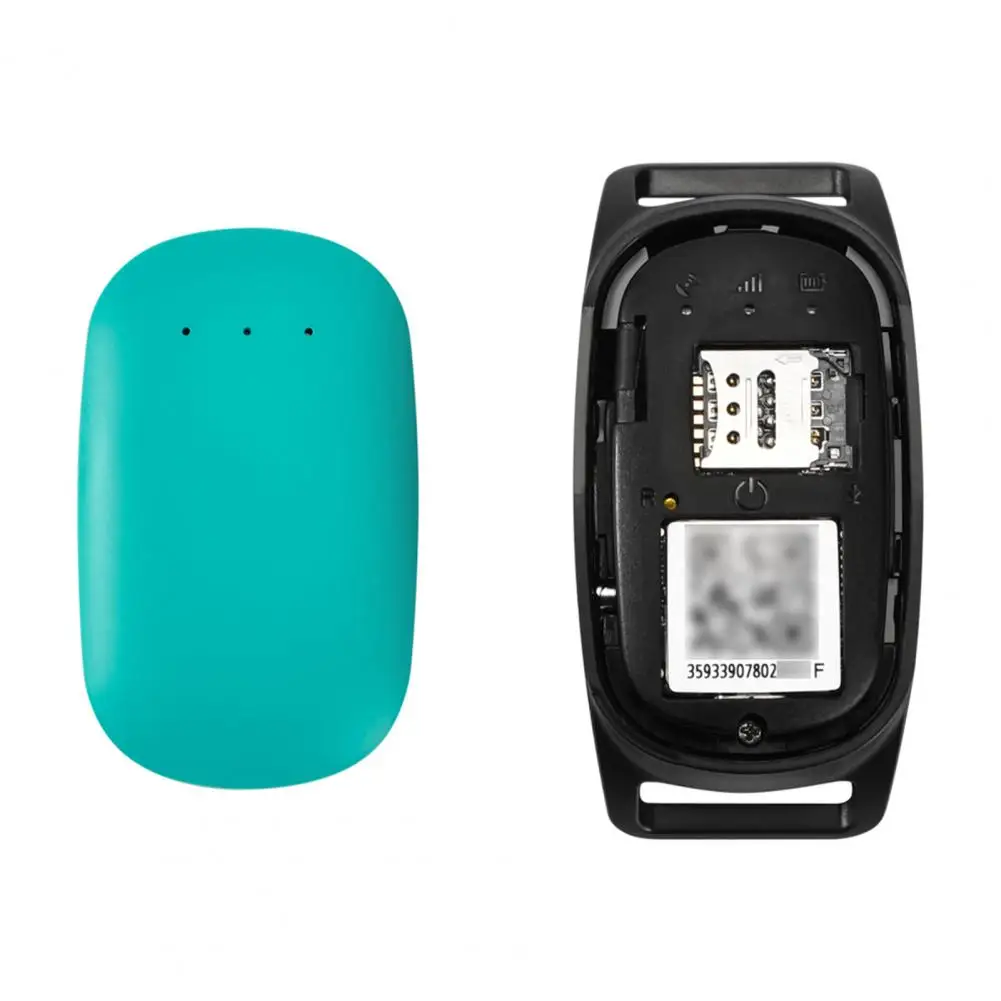

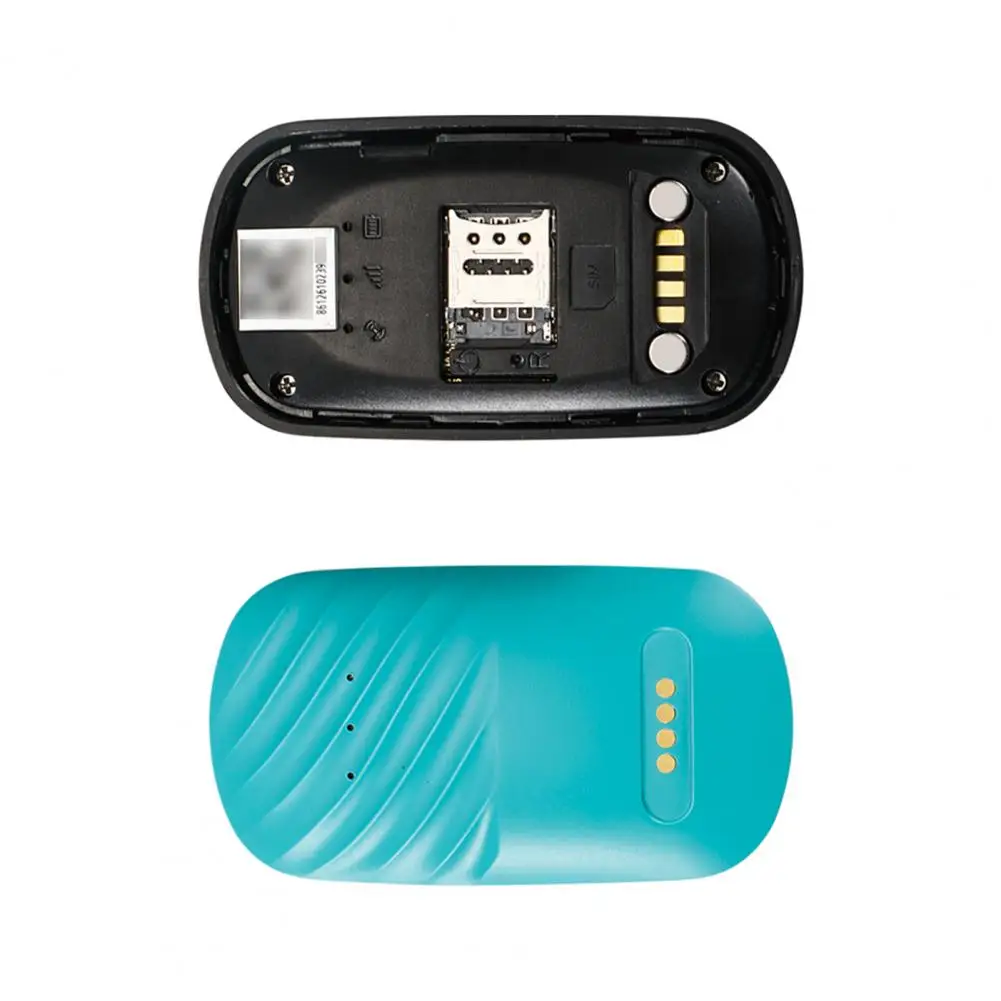

1. Press for a long time for 3 seconds to turn on the machine, press for a short time to turn off the machine without a card, and press for 8-9 seconds to turn off the machine after the card is installed.
2. Standby after card installation, press for 3 seconds for the SOS emergency alarm
3. When the relevant phone calls, ring the bell, press the key to answer, press and hang up
4. When the alarm clock rings, press it short to stop.

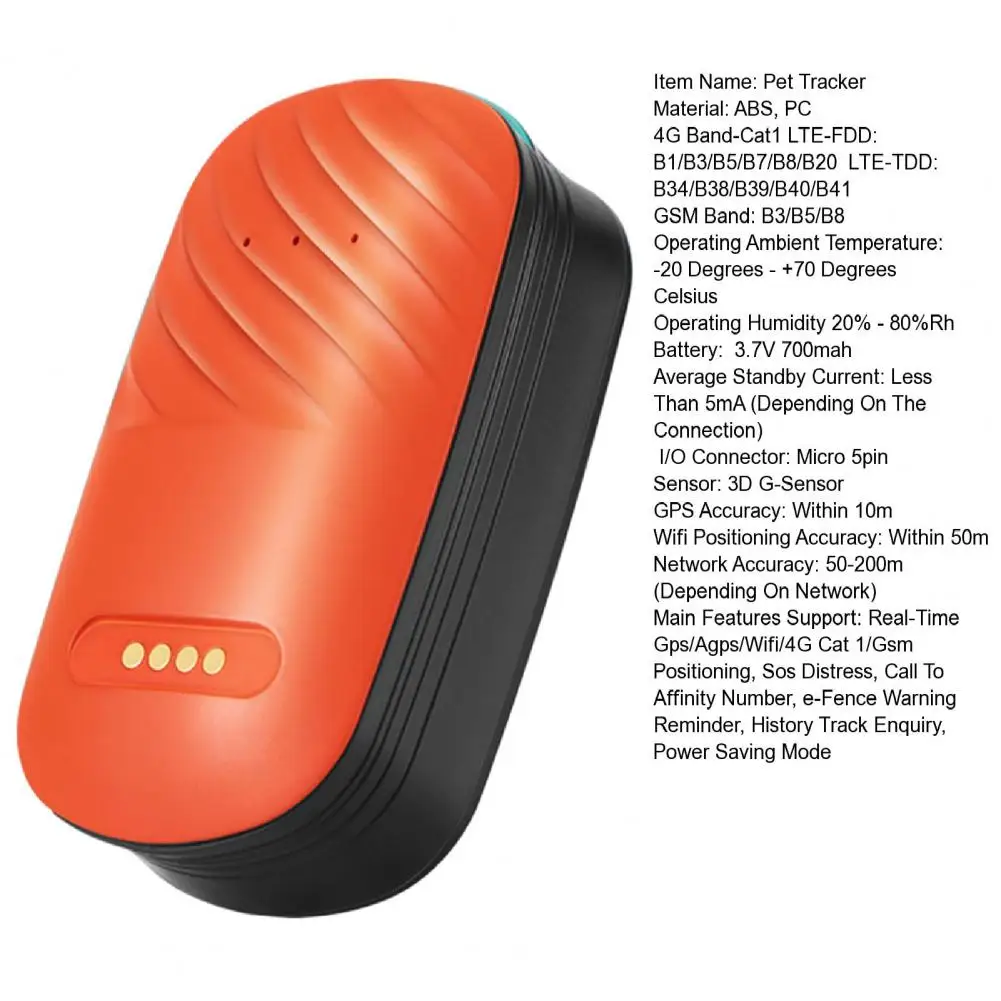

Specifications:
4G Band-Cat1 LTE-FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B34/B38/B39/B40/B41
GSM Band: B3/B5/B8
Operating Ambient Temperature: -20 Degrees Celsius – +70 Degrees Celsius
Operating Humidity 20% – 80%Rh

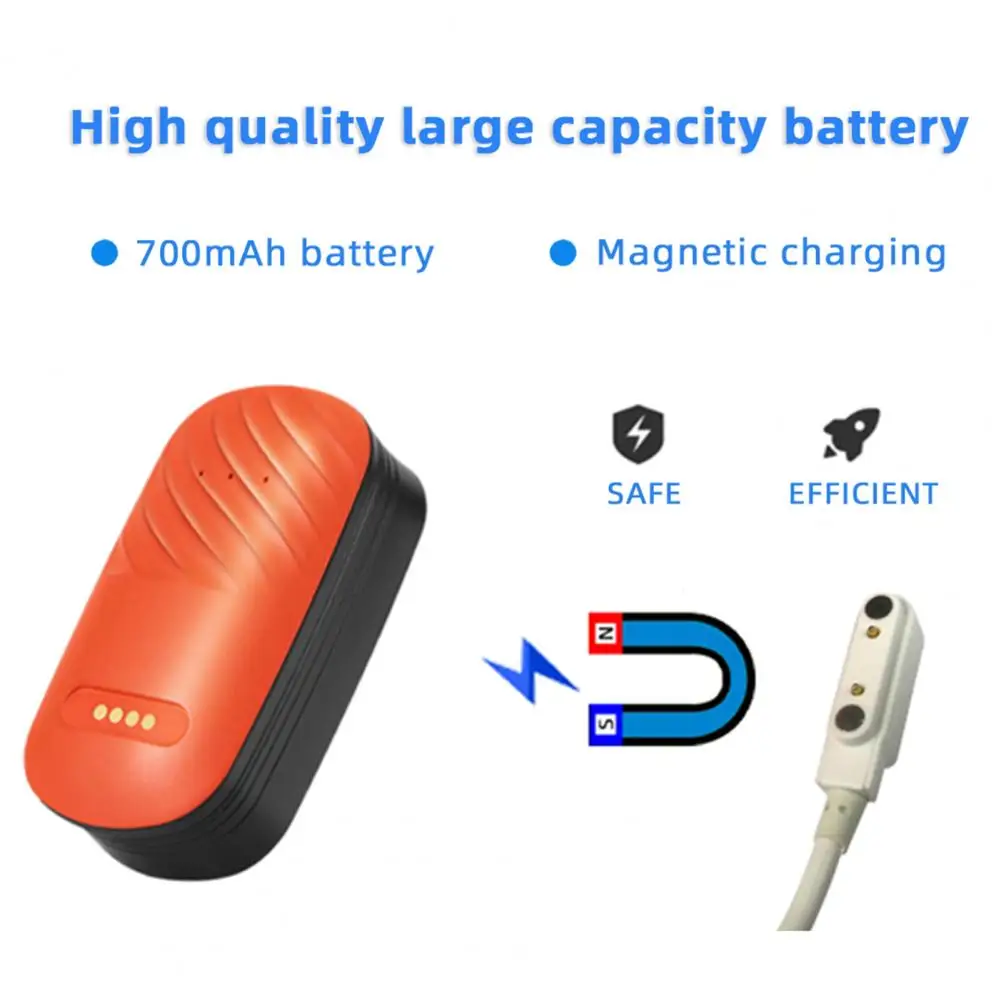

Battery: 3.7V 700mah
Average Standby Current: Less Than 5mA (Depending On The Connection)
I/O Connector: Micro 5pin
Sensor: 3D G-Sensor
GPS Accuracy: Within 10m
Wifi Positioning Accuracy: Within 50m
Network Accuracy: 50-200m (Depending On Network)
Main Features Support: Real-Time Gps/Agps/Wifi/4G Cat 1/Gsm Positioning, Sos Distress, Call To Affinity Number, e-Fence Warning Reminder, History Track Enquiry, Power Saving Mode

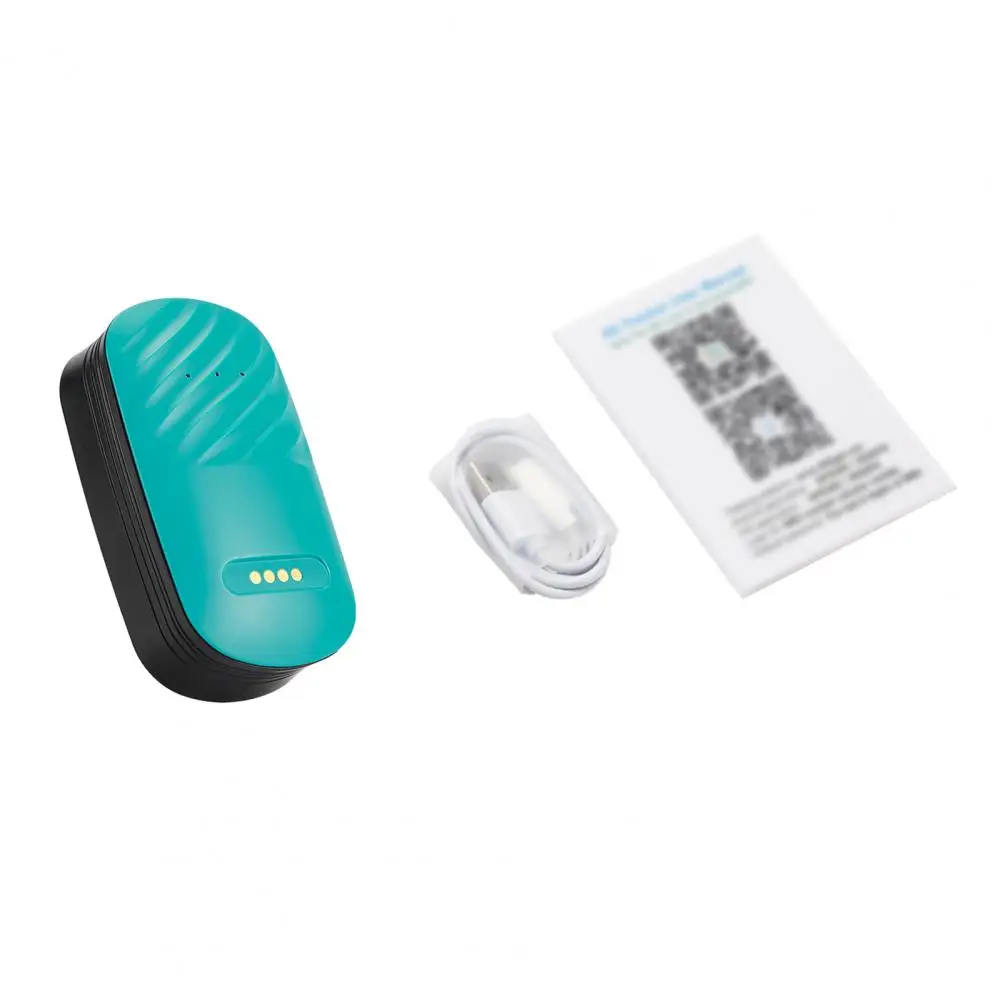

Package Content:

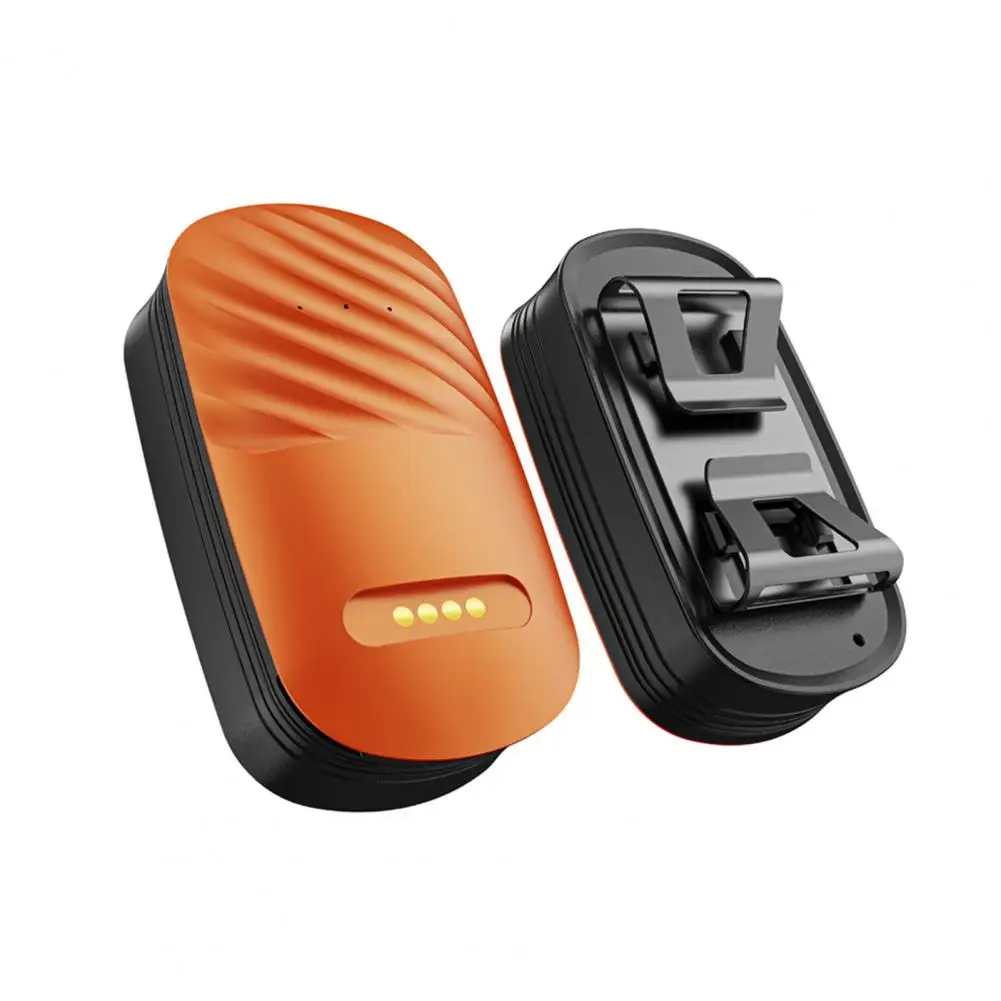

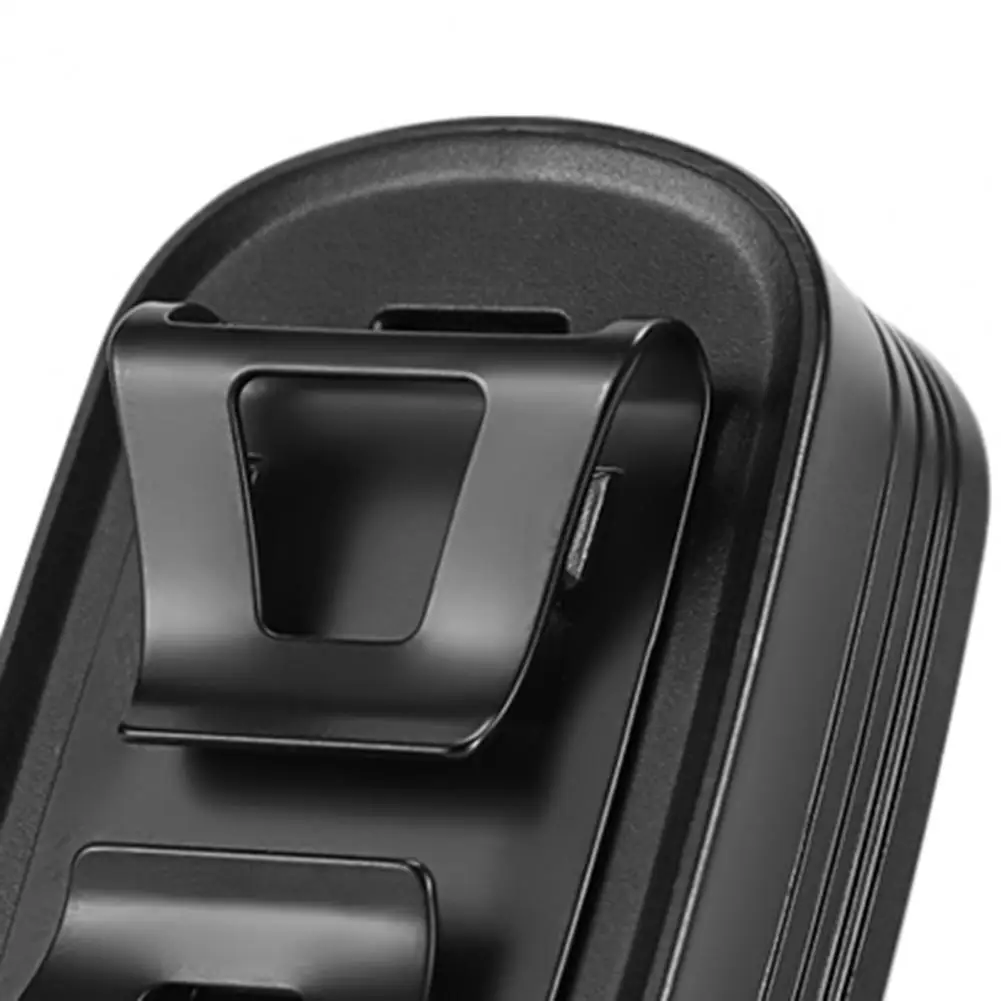

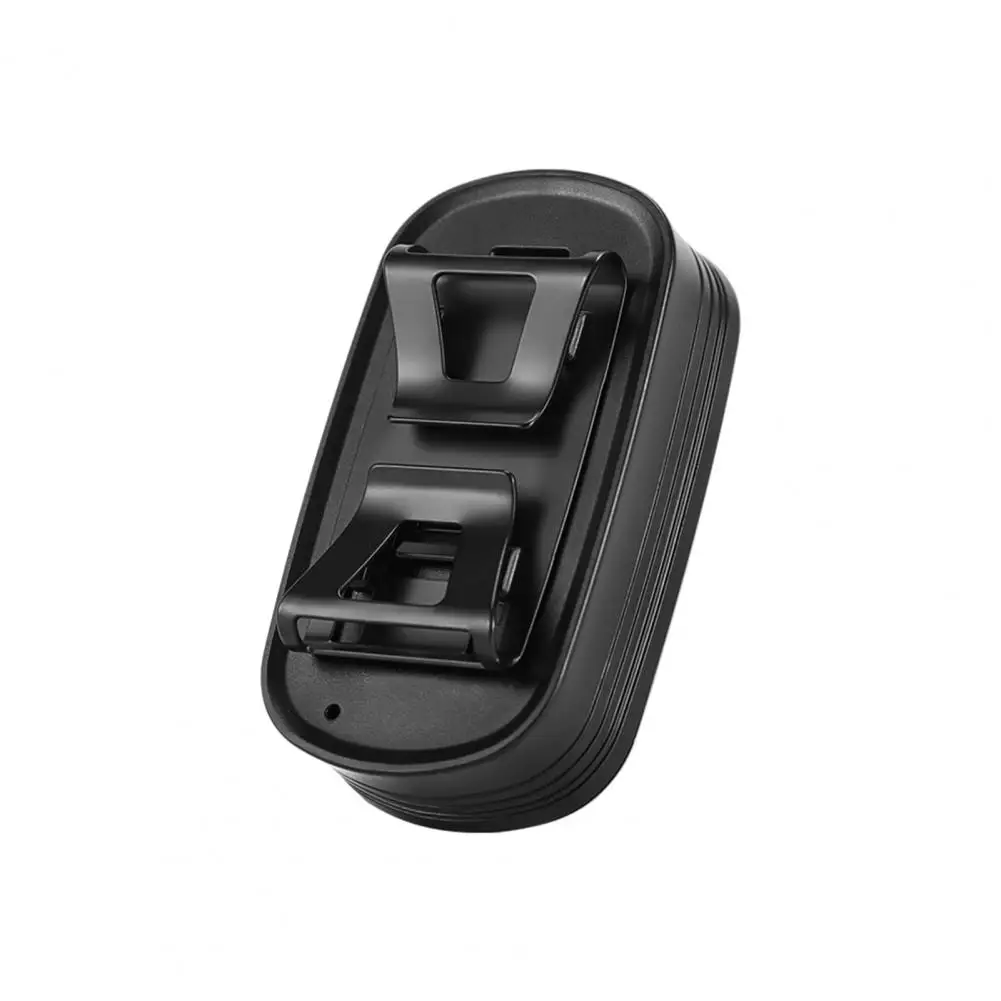

1 x Back Clip Pet Locator
1 x Charging Cable
1 x User Manual
