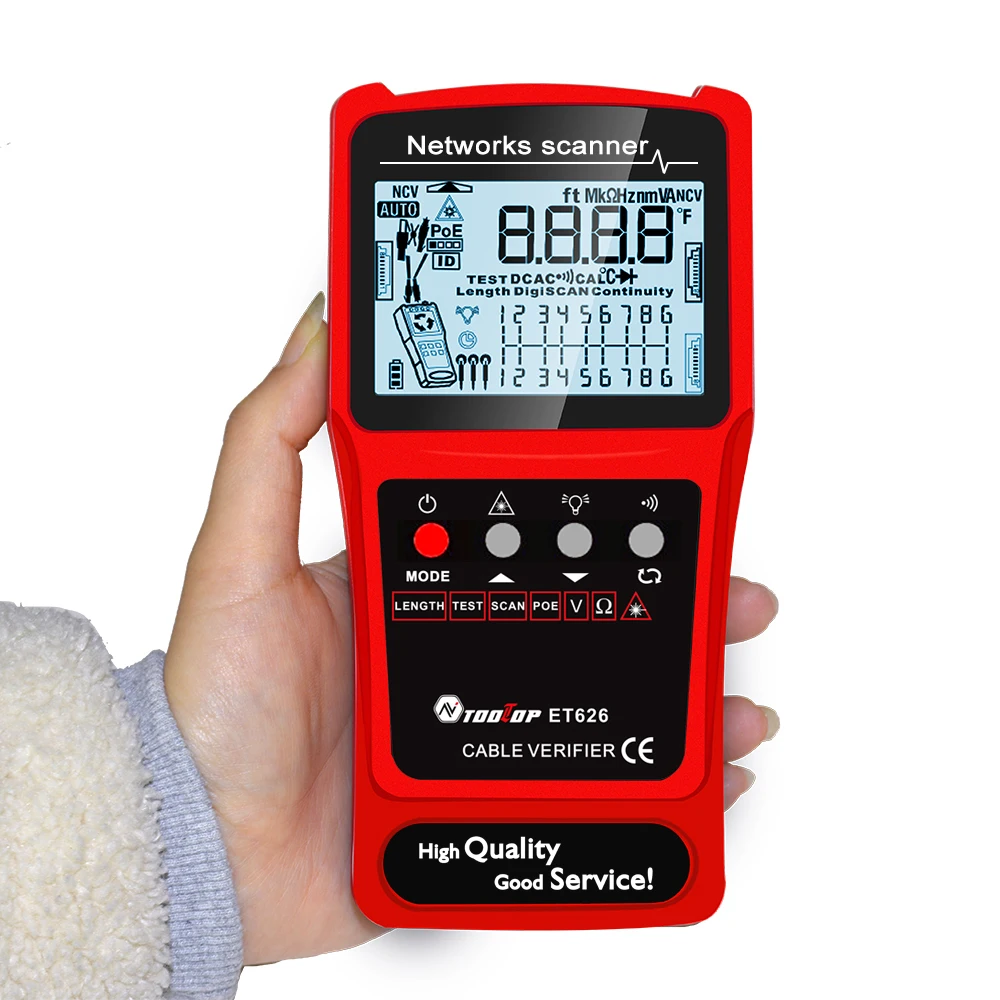

3in1 Multimeter Network Cable Tester Visual Fault Locator Analogs Digital Search POE Test Cable Pairing Length Wiremap Tester

This meter combines with the cable tracing, cable length measuring and multimeter functions. The advantage of this meter is the long-tracing distance clear sound signals, fast and precise cable length measurement. The meter is a practical tool for laboratories, factories, radio lover network installers and technicians. It can real-time measure network cable length, short circuit and circuit break. The cable tracing function can quickly and efficiently find the target cable in a large number of cables. This function can be used in telephone systems, computers networks, BNC cables and other metal network cables.

Features:
3.5inch LCD Display with Flashlight: The sender of this line finder adopts a large LCD backlight display to give you a better experience and the flashlight allows you to turn it on when the light is low.
Multimeter Function (Optional): This function includes direct current and AC voltage and current measurement, resistance, continuity, diode, NCV, temperature measurement.
Multifunctional Cable Tester: This cable tester has the function of analogue tracing, cable mapping, PoE voltage measuring, digital tracing volumes and sensitivity adjustable, automatic shutdown, and cable length self-calibration function.
Cable Tracing & Signal Changeable: The cable tracing function can quickly and efficiently find the target cable in large number of cables. This function can be used in telephone systems, computers networks, BNC cables and other metal network cables. And support set the frequency for using on tracing.
Cable Length & Pairing Check: Able to measure cable length, test open circuit, short circuit, cable sequence and cable break.
Voltage Test: Check the polarity and voltage of battery or cellphone lines.
Continuity Test (OHM): Check open circuit or short circuit of cellphone lines(cellphone line should not be connected to any power source).
Cable Length Test: This function can apply to different metal cables with at least 2 cores including network cables, telephone lines and BNC cables. With the network cable length measuring ranges of 600M.
POE Test: POE testing can check cable mapping, polarity and voltage of POE network switches.

Three modes are available, you can choose, ET624, ET626, ET628 depending on your needs.
ET624: Network Cable Tester, Multimeter, Silent Vibrate Mode
ET626: Network Cable Tester, Visual Fault Locator
ET628: Network Cable Tester, Visual Fault Locator, Multimeter, Silent Vibrate Mode

Specifications:
Material: ABS
Model: ET624, ET626, ET628 (optional)
Host: built-in lithium battery, 1250mAh (included)
Cable Finding Pen: 1 * 9V battery (NOT INCLUDED)
Display: 3.5inch LCD display with white backlight
ET624: Multimeter Function, ACV, DCV, DCA, Alternating Current current, Resistance, Continuity Buzzer, Diode, Temperature, Coaxial Cable Length Measurement, Network Cable Short Circuit and Circuit Break Test
ET626: Red Laser Pen
ET628: Multimeter Function, Red Laser Pen,  ACV, DCV, DCA, Alternating Current current, Resistance, Continuity Buzzer, Diode, Temperature, Coaxial Cable Length Measurement, Network Cable Short Circuit and Circuit Break Test
Display size: 68 * 45mm / 2.68 * 1.77in
Package size: 260 * 165 * 60mm / 10.24 * 6.50 * 2.36in
Package weight:
ET624: 700g / 1.54lb
ET626: 620g / 1.37lb
ET628: 700g / 1.54lb

Note:
The I-D pairing function is implemented with remote I-D mapping accessory, you need to buy this accessory by yourself
separately. This accessory is not included in this set.

Packing List (ET624):
1 * Host
1 * User Manual
1 * RJ45 Cable
1 * Clip Cable
1 * K Probe
1 * Multimeter Pen
1 * Storage Bag

OR

Packing List (ET626):
1 * Host
1 * Red Laser Pen
1 * User Manual
1 * RJ45 Cable
1 * Clip Cable
1 * Storage Bag

OR

Packing List (ET628):
1 * Host
1 * Red Laser Pen
1 * User Manual
1 * RJ45 Cable
1 * Clip Cable
1 * Multimeter Pen
1 * K Probe
1 * Storage Bag
